Description

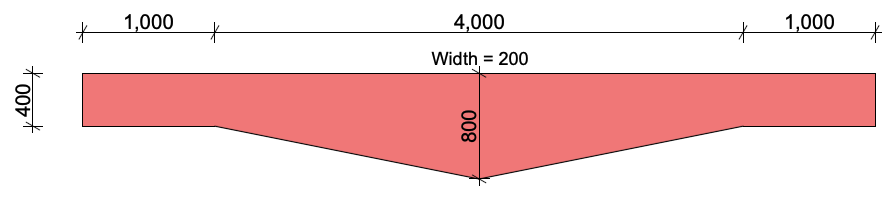

I am trying to create a beam that is tapered on the middle. How can I achieve this using segmented beams?
Solution

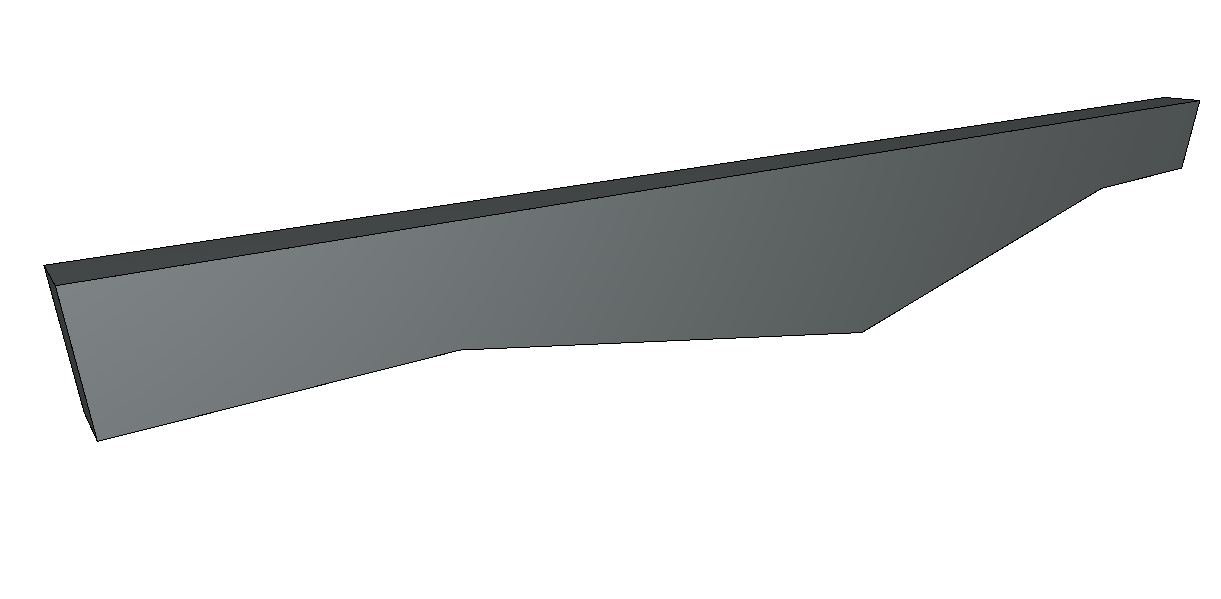

Creating a beam that tapers in the middle is a straightforward process once you understand how to manipulate segmented beams.

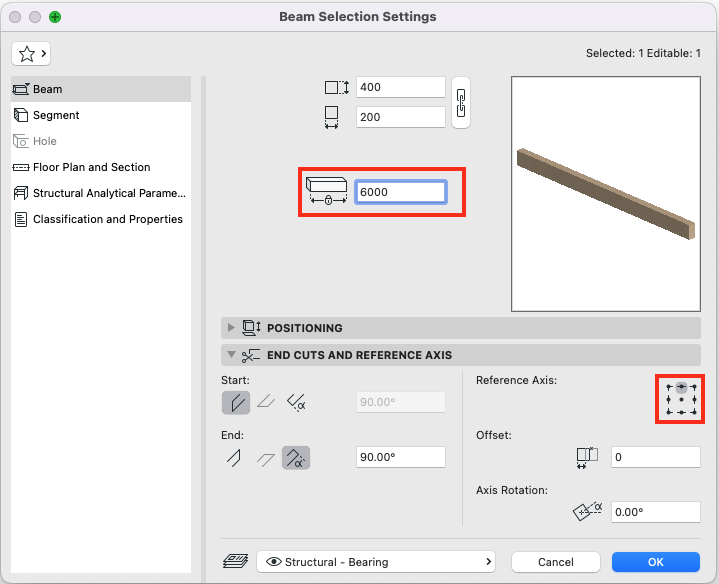

Draw the Beam. Then go to Beam Selection Settings. Under the End Cuts and Reference Axis tab, change the reference axis to top center.

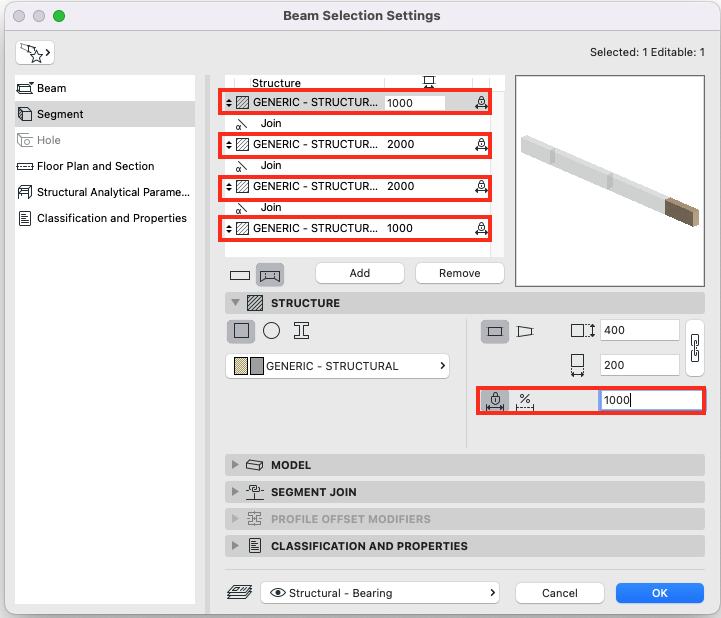

- Go to Segment tab, then select Multi-segment then click Add thrice to add three more segments since the beam is composed of 3 segments.
- Change the length of each segment as per the design.

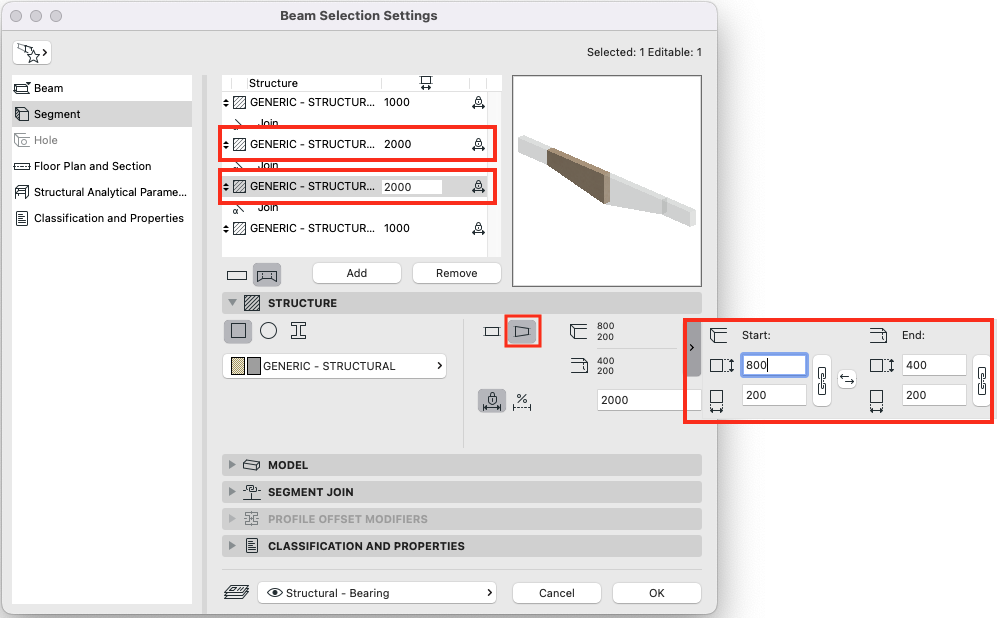

- Change the Structure of the two middle segments to Tapered Size then input the size accordingly. Click OK when finished
