Description:

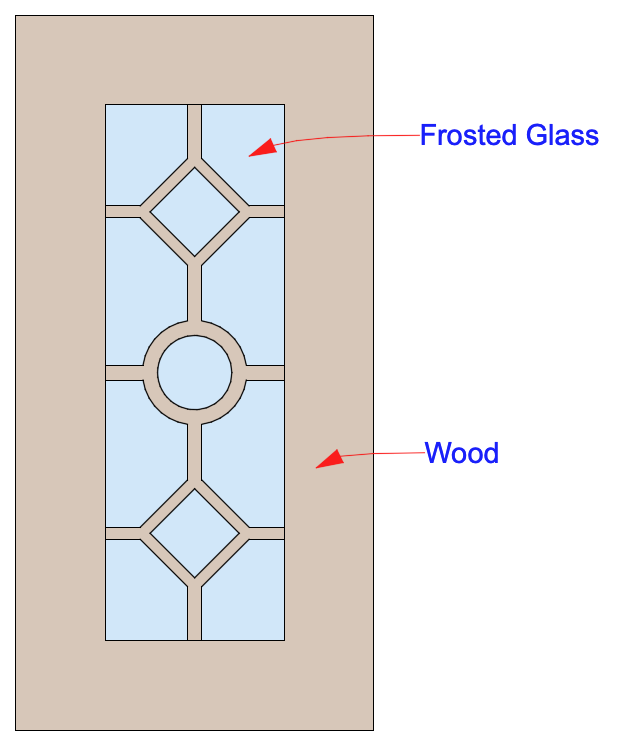

My client has a specific door leaf design that they want to incorporate in my model. How can I create custom designed door leaf in Archicad?
Solution:
Incorporating a specific door leaf design into your model in Archicad is not only possible but also straightforward with the right steps. Whether you're working with a client's unique vision or your creative design, here's a comprehensive guide to creating custom door leaves in Archicad.
1. Model the Door Leaf Design
Begin by modeling the door leaf design using Archicad's basic elements. You can utilize:
- Slab: Great for creating flat surfaces and simple shapes.
- Morph Tool: Offers flexibility in creating complex and unique shapes.
2. Apply Materials and Surfaces
After modeling your door leaf, apply the desired materials and surfaces to give it the appropriate texture and appearance. This step is crucial for achieving the right aesthetic and ensuring the door leaf matches the rest of your design.
3. Select the Model and Go to 3D View
Once your door leaf is modeled and textured, select the entire model and switch to the 3D view. This perspective allows you to verify the design and make any necessary adjustments before saving it as a custom object.
4. Save the Model as a Custom Door Leaf
Navigate to the menu and follow these steps:

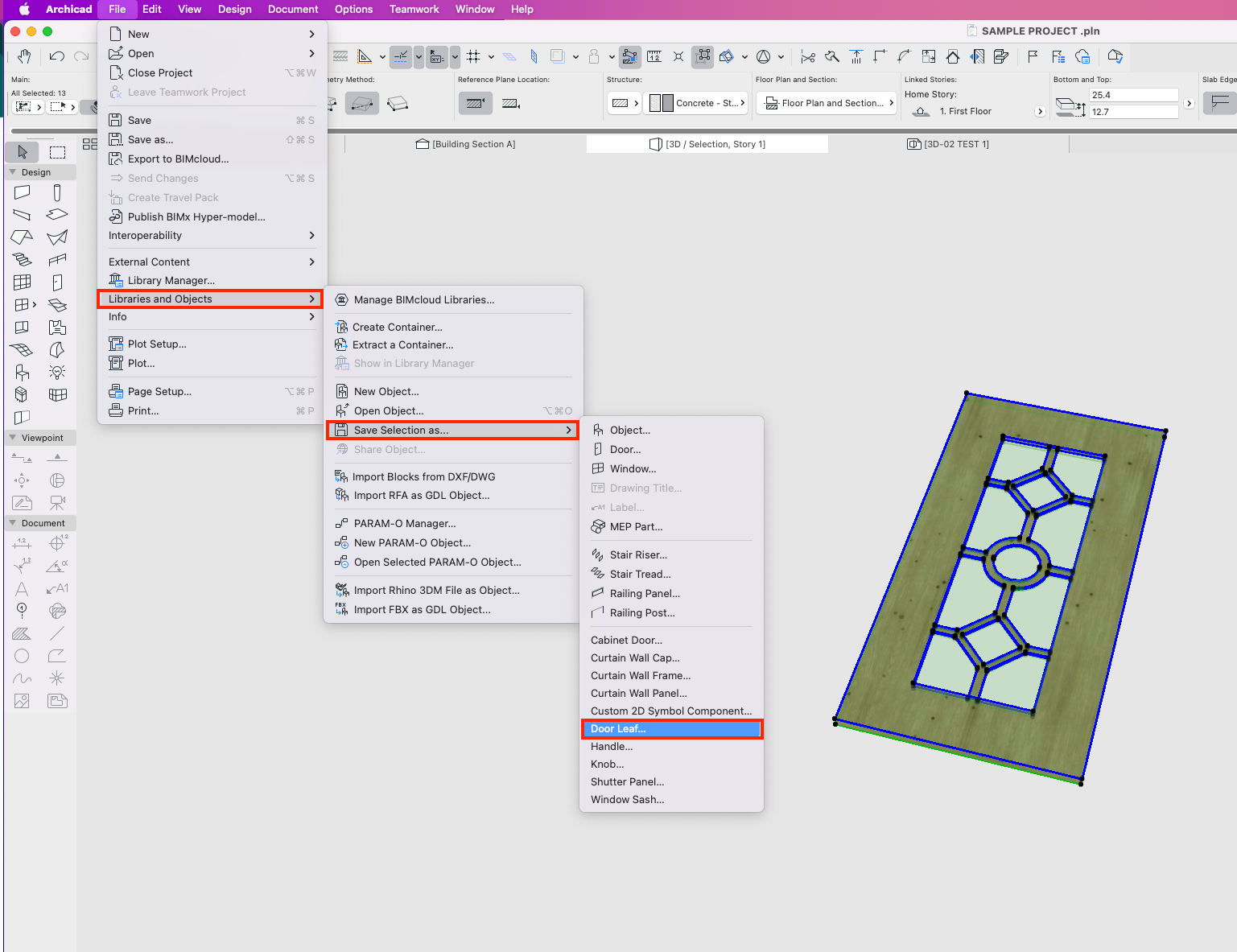

- Go to Libraries and Objects > Save Selection as… > Door Leaf
5. Configure the Custom Door Leaf Settings

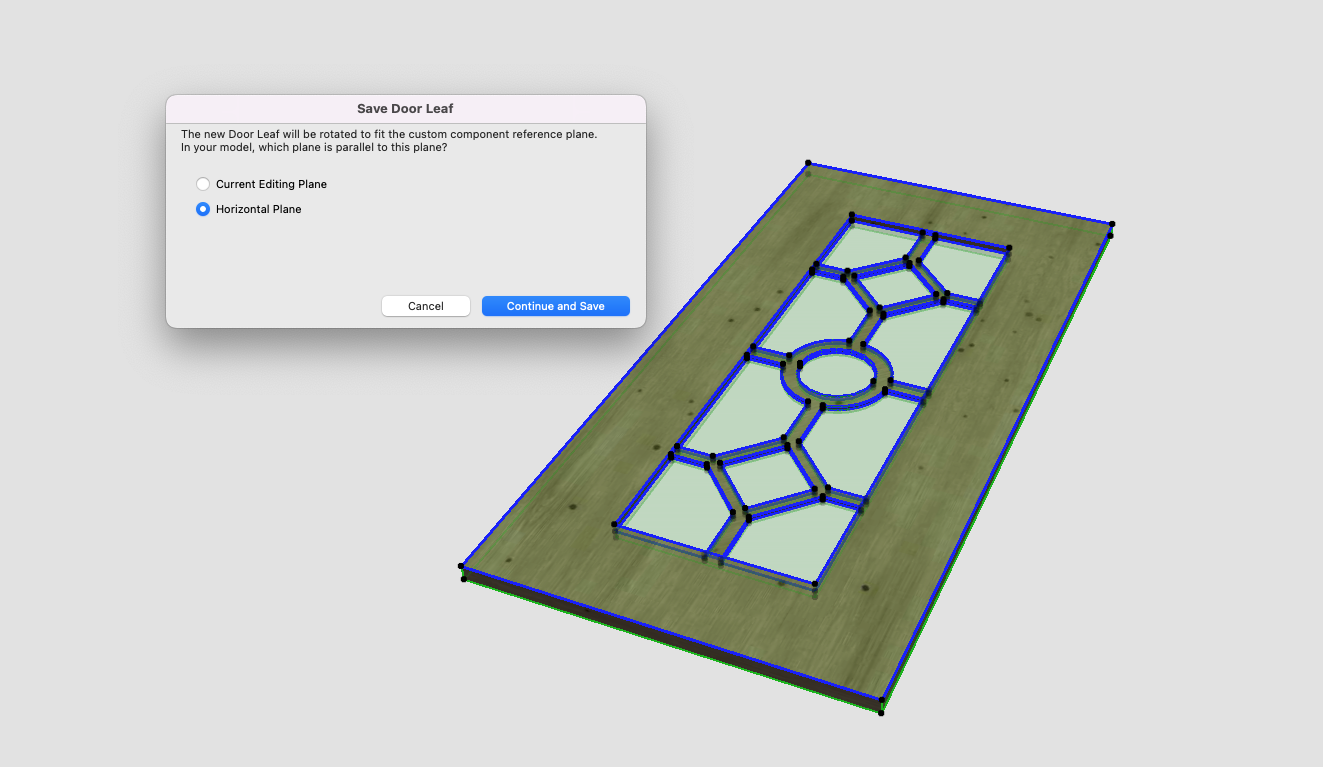

You'll be prompted to choose the reference plane:
- Select Horizontal Plane > Click Continue and Save
6. Input the name of Custom Door Leaf
Provide the name of the custom door leaf and click SAVE.

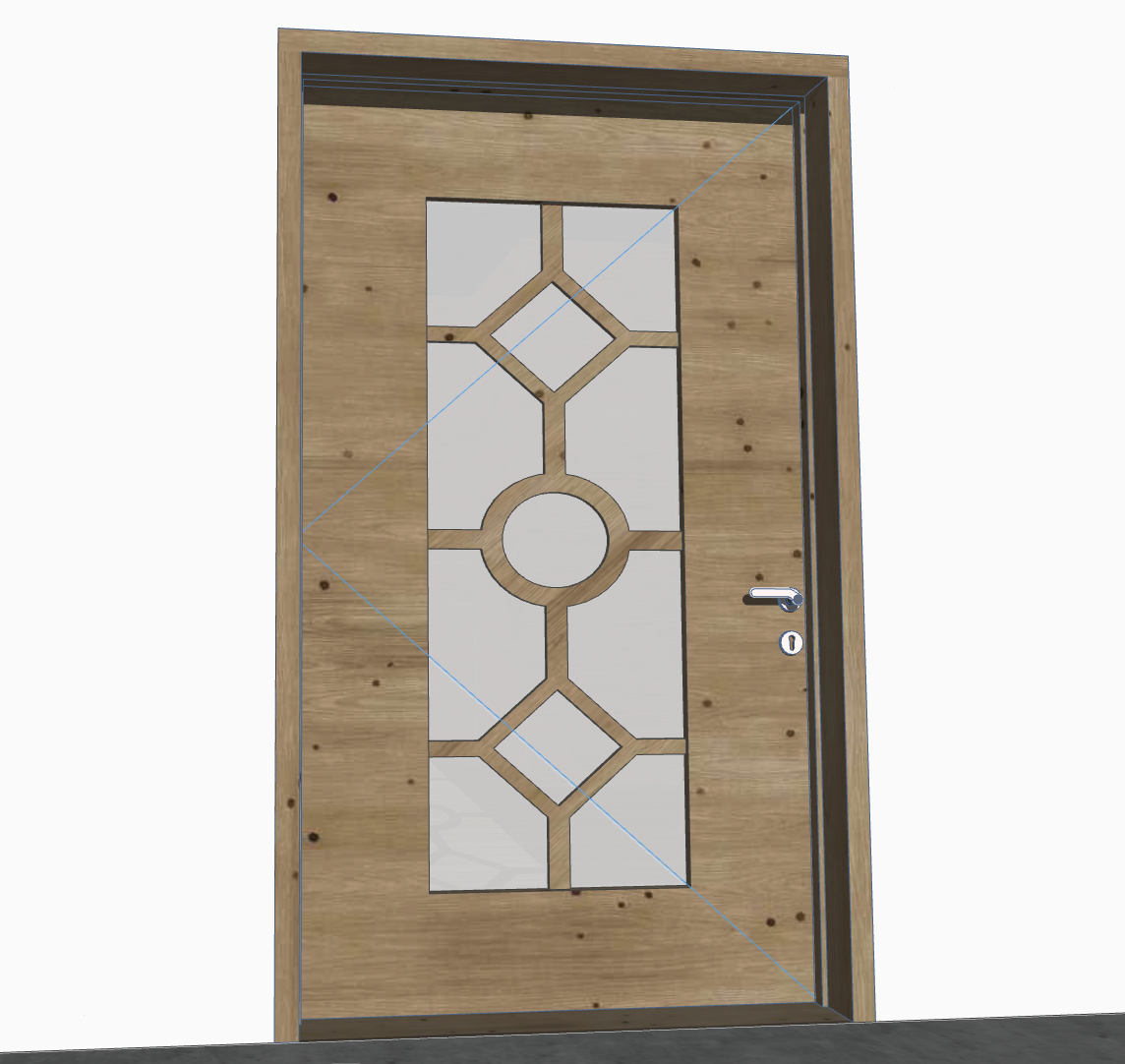

7. Apply the Custom Door Leaf to a Door
To use your custom door leaf in your project:
- Select the Door Tool

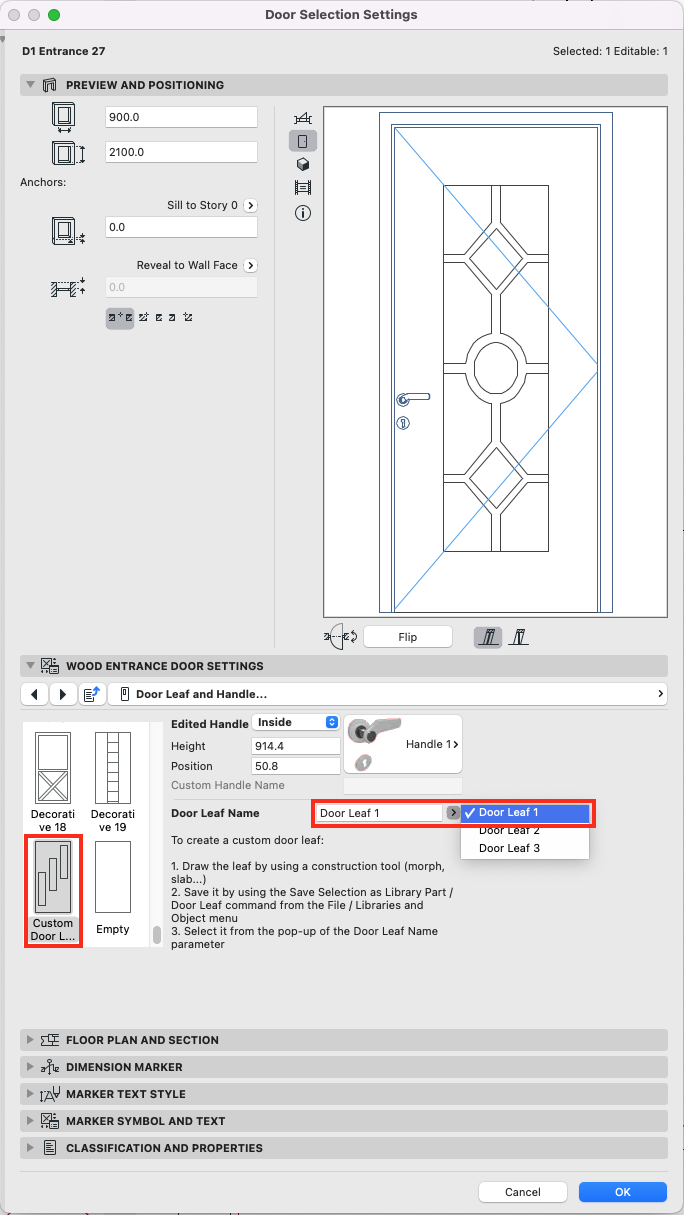

- Go to Door Default Settings > Door Leaf and Handle > Custom Door L….
- Locate your custom door leaf by its name in the Door Leaf Name section.
- Click OK to apply it.
By following these steps, you can effortlessly incorporate any custom door leaf design into your Archicad model, meeting your client's specific requirements and enhancing the overall design. This process not only adds a unique touch to your projects but also expands your creative possibilities within Archicad. Happy designing!
