Issue Description

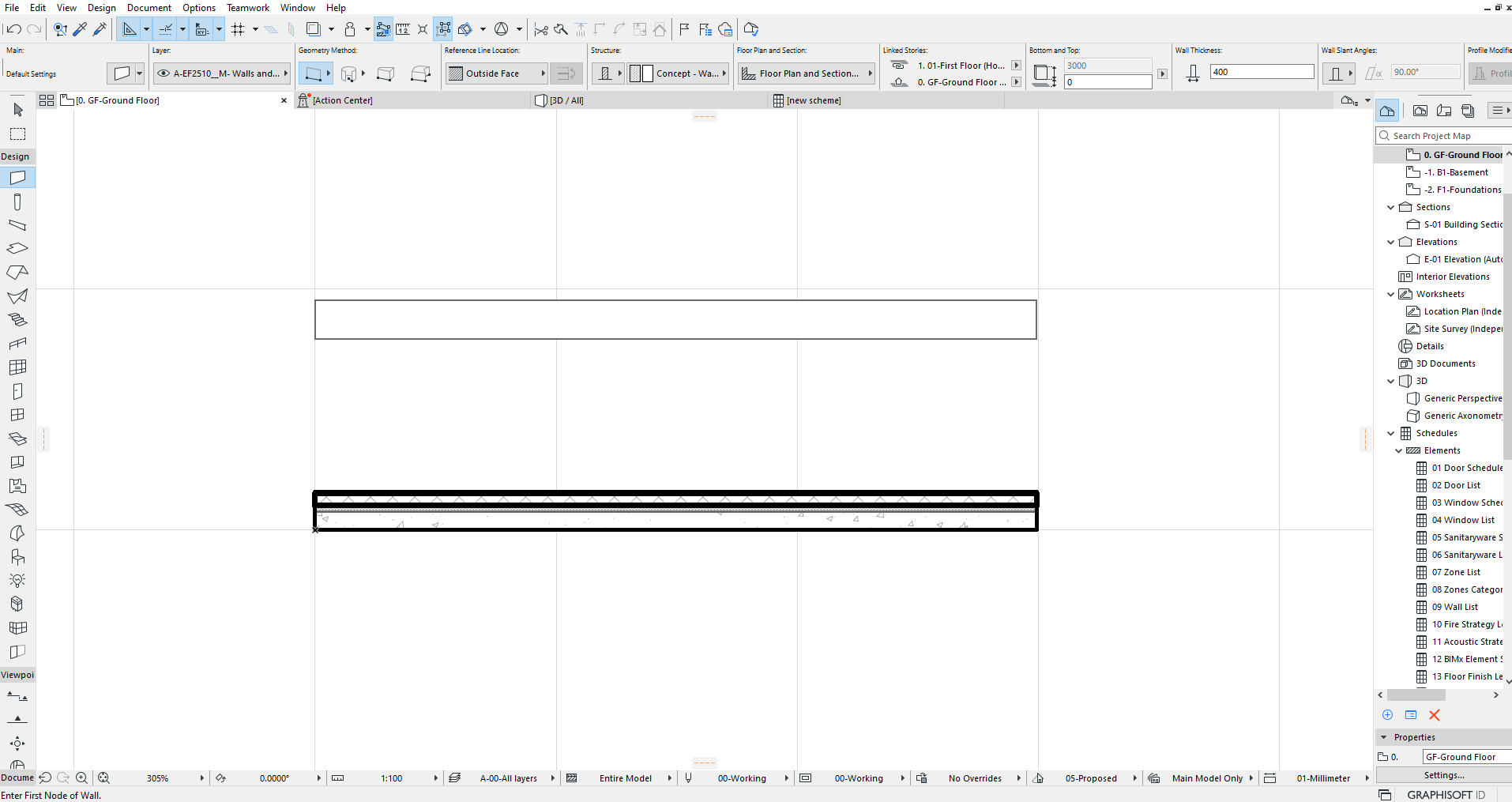

In my Archicad model, some walls display their composite structure correctly, while others appear blank.
Solution
If some walls in your Archicad model display their composite structure while others appear blank, this could be due to a few different reasons. Here are some steps to diagnose and fix the issue:
Check Wall Settings:
- Ensure that all walls are using the correct composite structure.

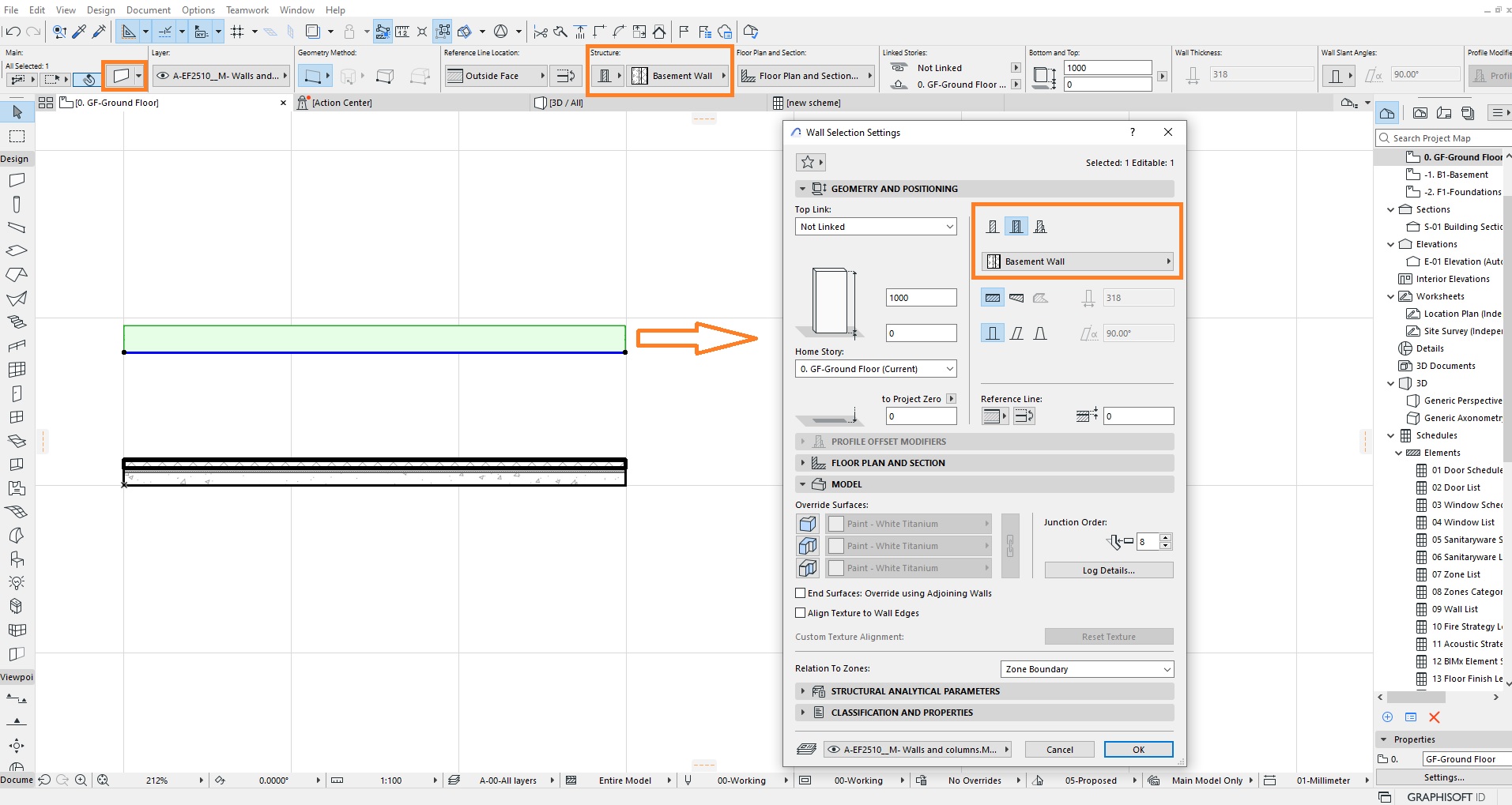

- Select a wall that displays correctly, and a wall that does not, then compare their settings in the Wall Settings dialog.
Check the Floor plan Cut Plane:

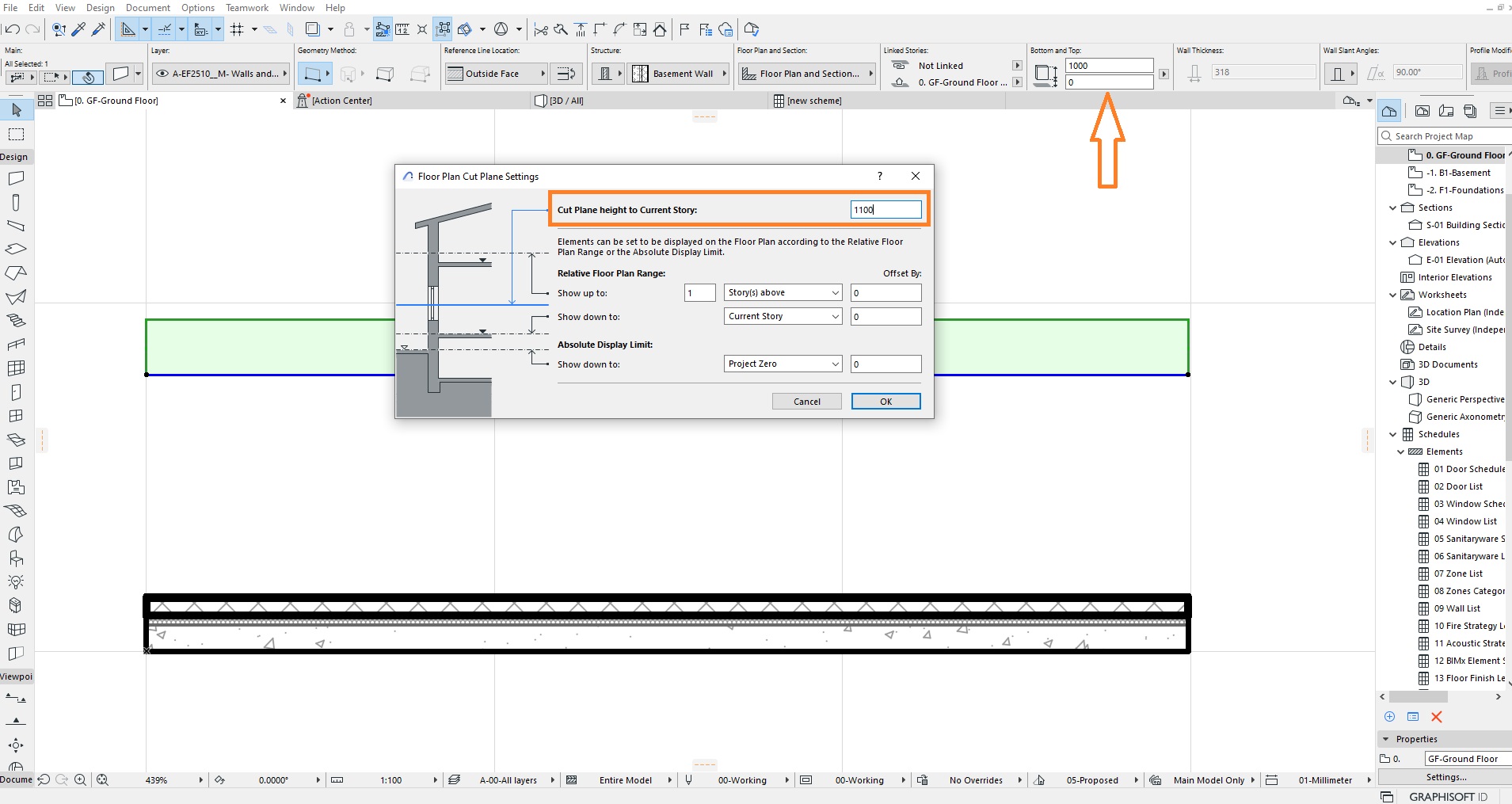

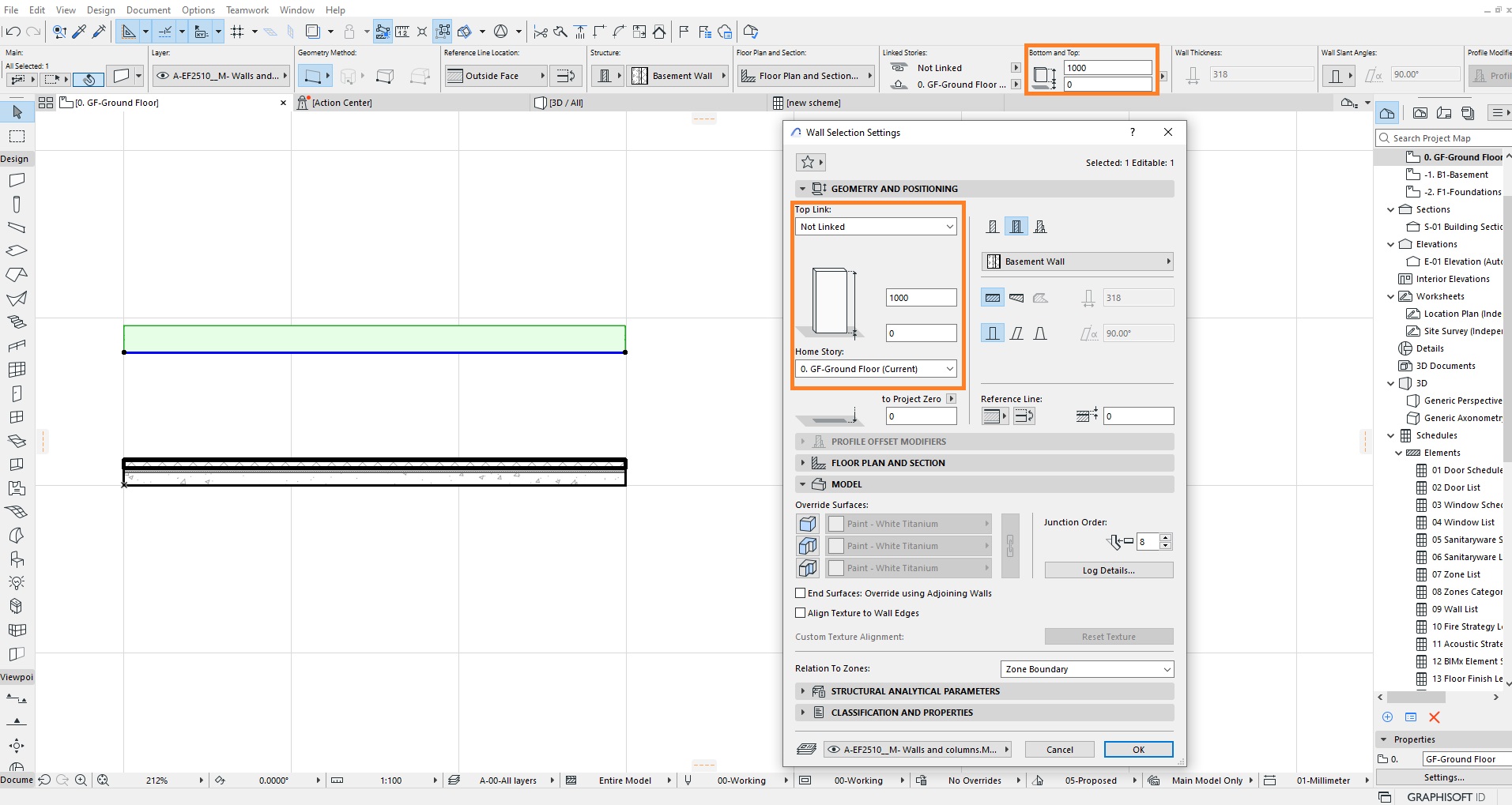

- Check the height of the wall against the Floor plan Cut Plane. To see the Composite you have to cut through the wall.
Document Menu > Floor Plan Cut Plane
Graphic Overrides:
- Check if there are any graphic overrides applied that might affect the visibility of the wall composites. Set the filter to No Overrides to check quickly.
