My Units are not consistent through out my project

Issue Description

The values are inconsistently displayed across different tools, with some showing millimeters (MM) and others showing inches.

Solution

Inconsistent units across tools can result from differing settings. Here’s how to resolve this issue:

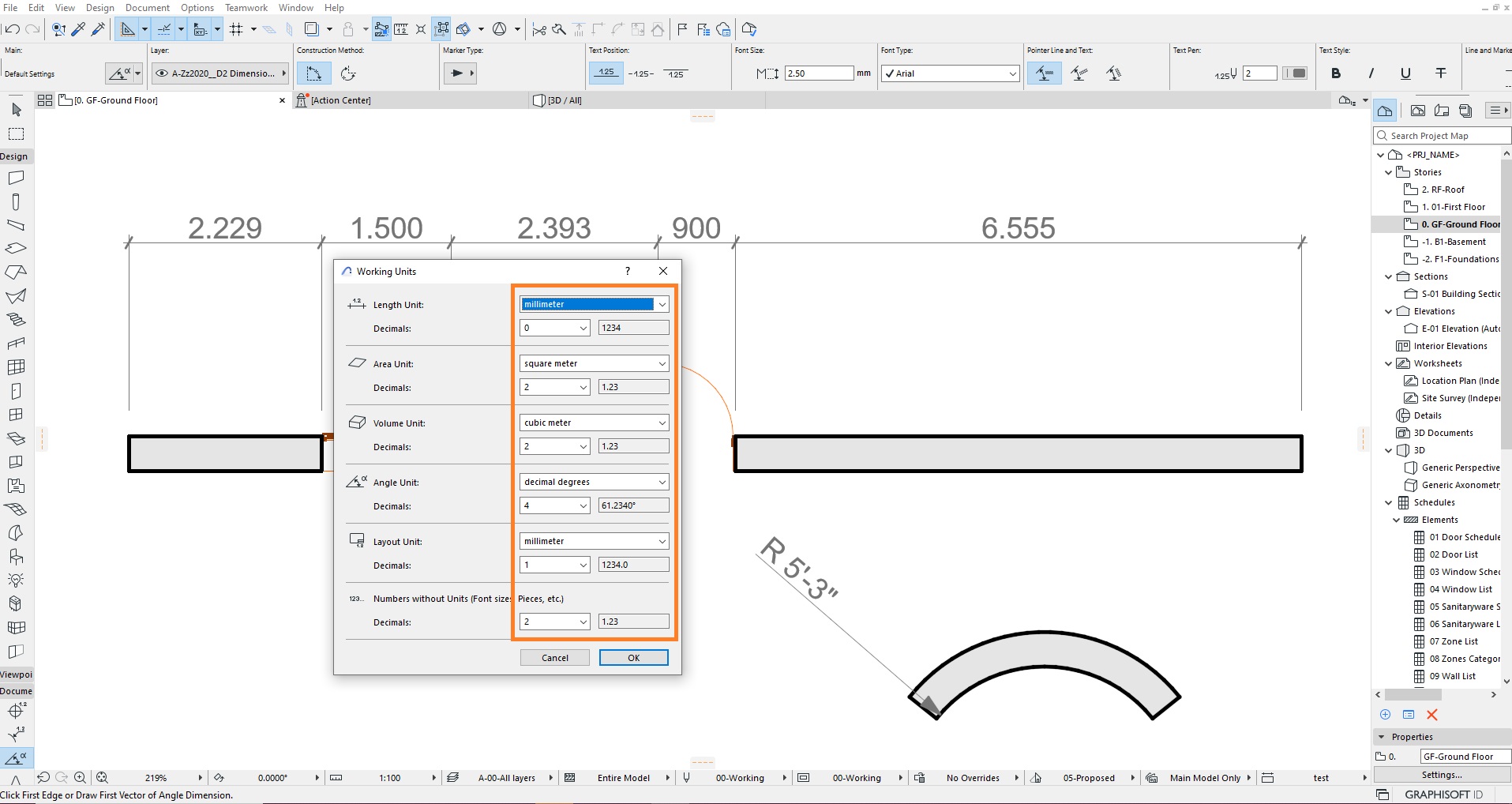

1. Verify Working Units

   • Go to Options > Project Preferences > Working Units.
   • Make sure the unit system (millimeters or inches) is set consistently according to your preference.

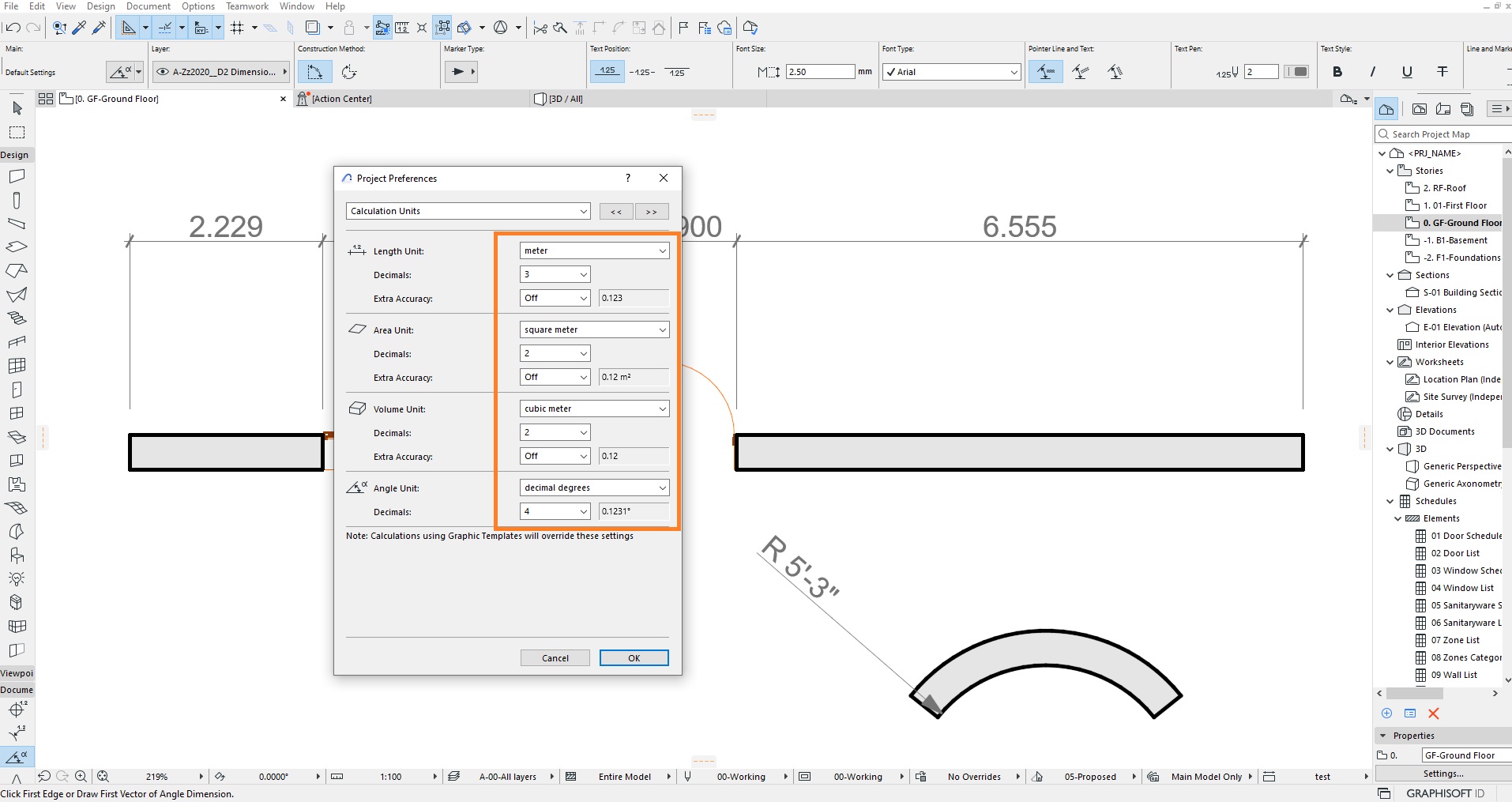

1. Check Calculation Units

   1. Navigate to Options > Project Preferences > Calculation Units.
   2. Confirm that measurements like length, area, and volume are all in the same unit system you’ve chosen (either MM or inches).

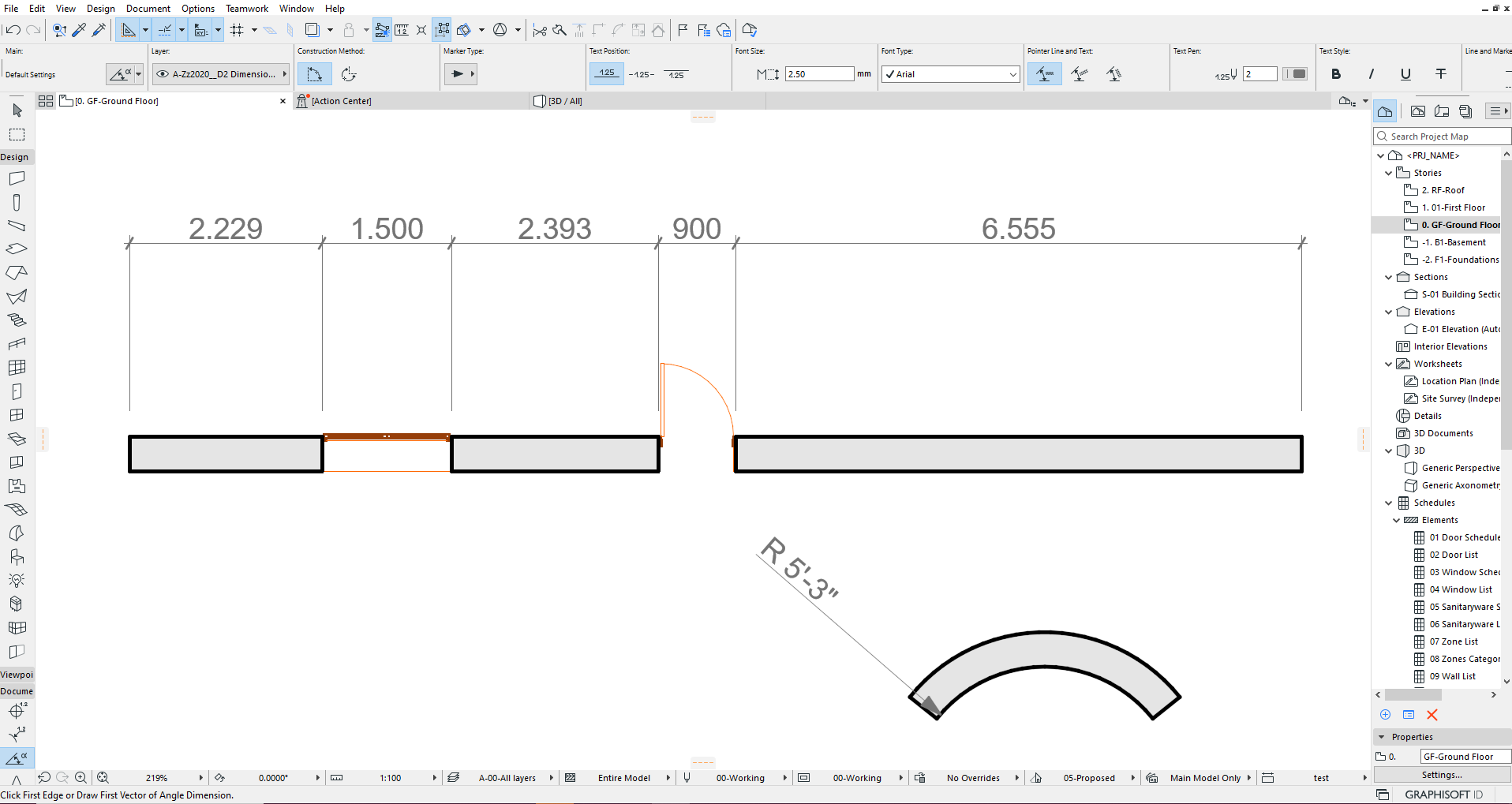

1. Adjust Dimension Settings

   • Access Options > Project Preferences > Dimension Settings.
   • Ensure that dimensions (such as length, height, or area) are uniformly set to use the same unit.

TIP: For a deeper understanding of how to configure Project Preferences
