Issue Description
I'm attempting to include both windows and doors in a single schedule. Despite selecting both as criteria, my schedule remains empty.
Solution

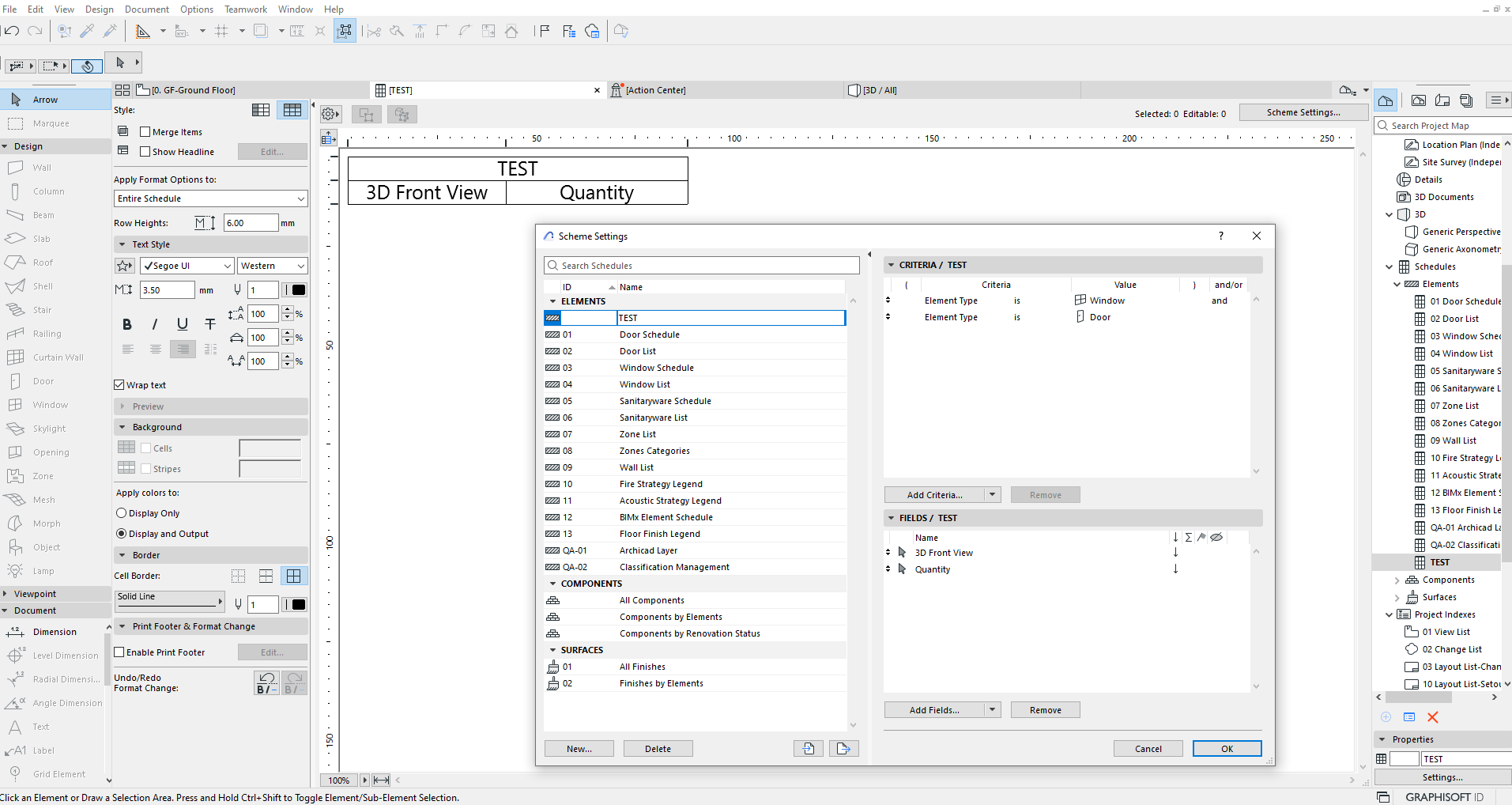

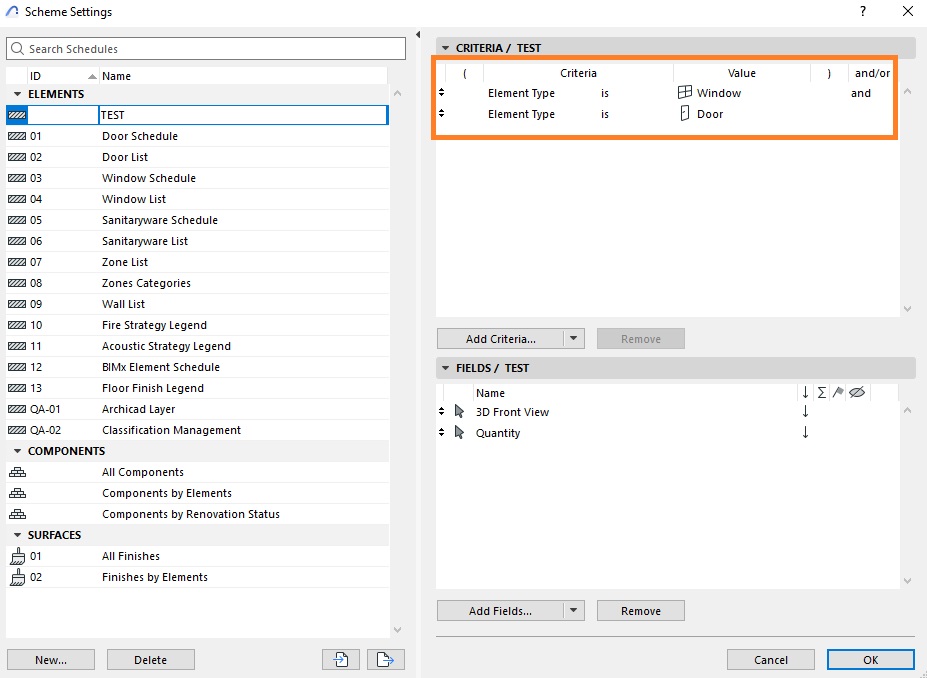

Please review the scheme settings carefully. The final field is the "and/or" field. When including two different types of elements, this setting must be configured correctly.
For example, if it is set to "and," the schedule will appear blank. Why? Let's read it aloud: "Element type is a Window AND element type is a Door." The mistake is clear — a window cannot be a Window AND a door at the same time.

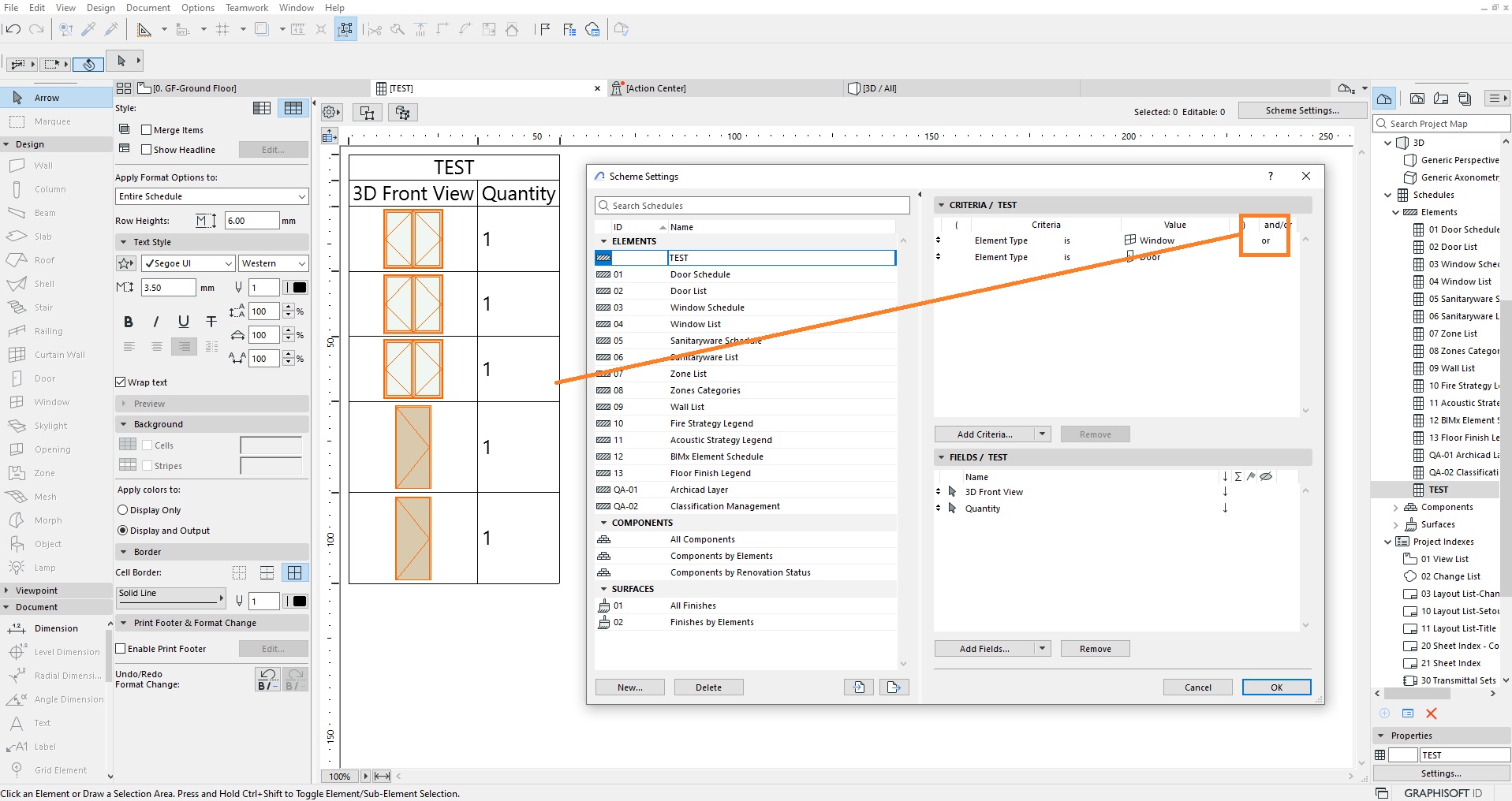

Change the 'and/or' field to 'or' and then click OK. This adjustment will populate the schedule with your elements.
TIP: To push the boundaries of your Schedules check out this further help.
