Issue description
In the 3D window, edges of 3D elements, like walls or ceilings, look blurry or pixelated.
Solution
To address this issue, please check the following points:
1. Verify 3D Anti-Aliasing Setting
Ensure that the 3D Anti-Aliasing setting is enabled:

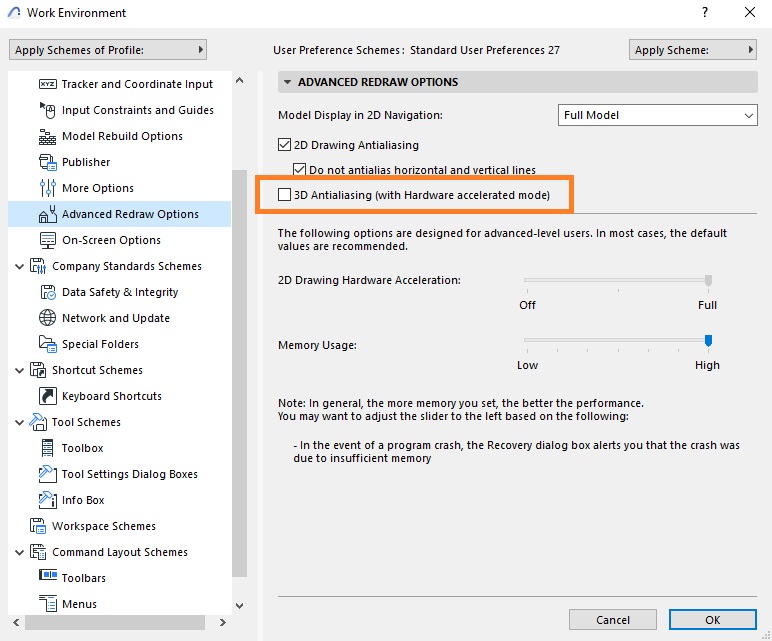

- Navigate to Options > Work Environment > Advanced Redraw Options.
- Make sure that the 3D Anti-Aliasing (with hardware acceleration mode) is activated.
Note: If you have made any changes to the settings in the Work Environment, it's advisable to restart the program.
2. Check you are not far from the origin
3. Check Hardware
- Verify that the graphics card you're using meets our system requirements.
- Check if the graphics card driver is up-to-date or if it can be updated.
For more information on this topic, visit the following link:
4. Check for Archicad Updates
- Go to Help > Check for Updates…
- Ensure that the version of Archicad you are using is up-to-date and that the latest update is installed.
