Issue description
In the 3D window, edges of 3D elements, like walls or ceilings, look blurry or pixelated.
Solution
To address this issue, please check the following points:

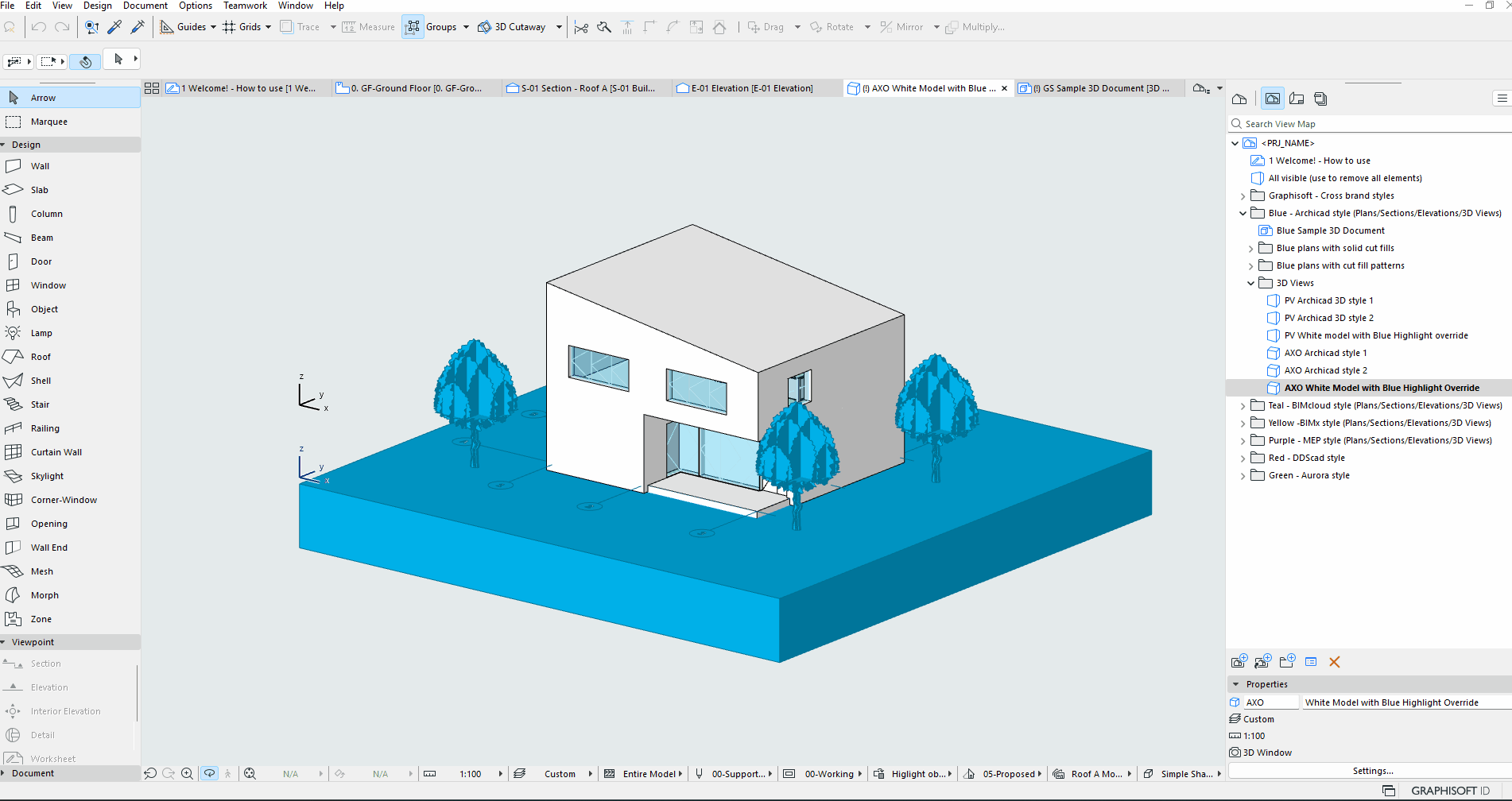

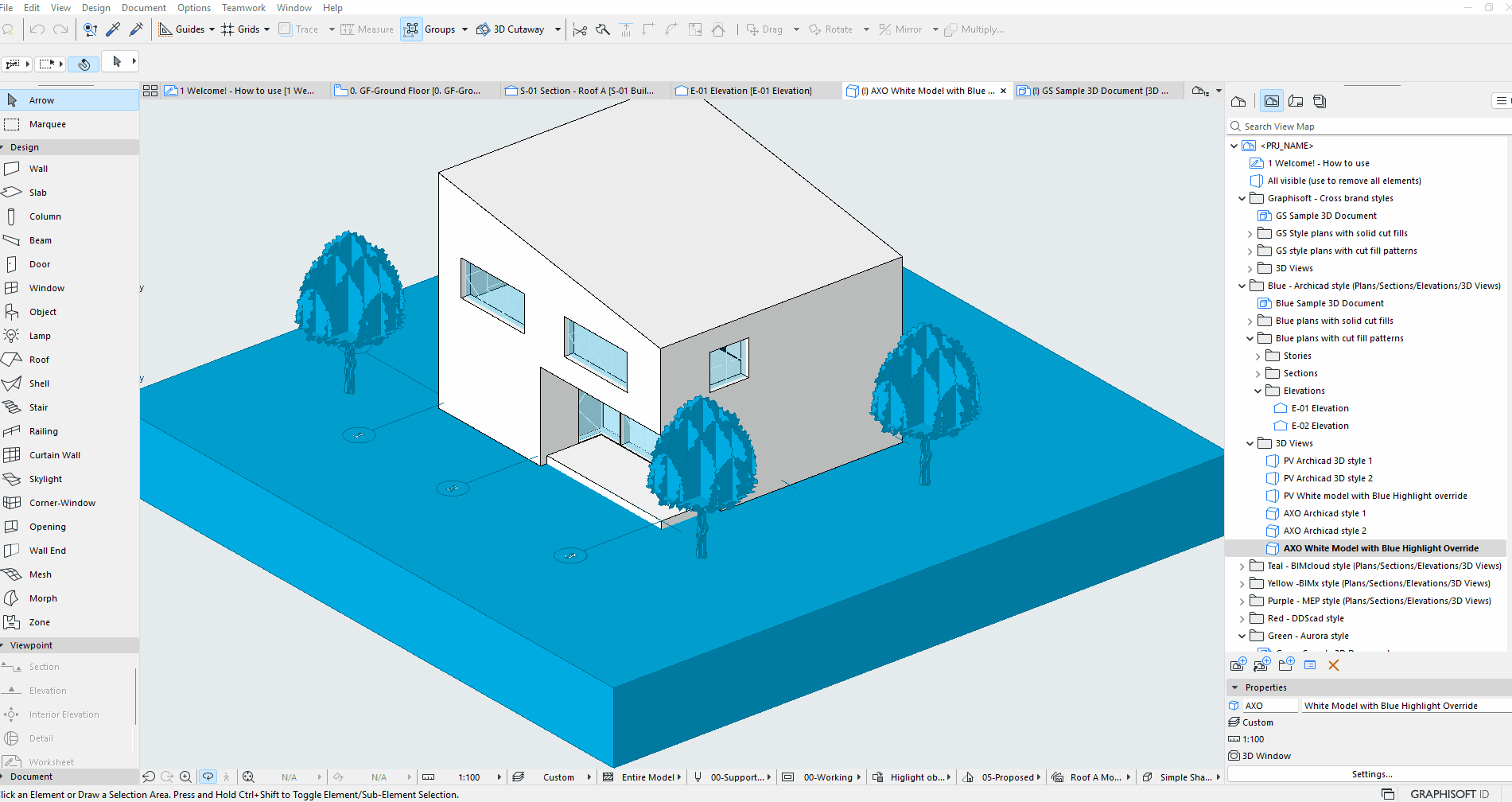

1. Verify 3D Anti-Aliasing setting:
- Navigate to Options > Work Environment > Advanced Redraw Options.
- Make sure that the 3D Anti-Aliasing (with hardware acceleration mode) is activated.
Note: Restart the program after modifying this setting in your work environment, to reflect the changes.
2. Check if you are not far from the origin
- Please check out this Graphisoft Community article: Far From Origin - Troubleshooting Guide
3. Check hardware
- Verify that the graphics card you're using meets our system requirements.
- Check if the graphics card driver is up-to-date or if it can be updated.
For more information on this topic, visit the following website: System Requirements
4. Check for Archicad updates
- Go to Help > Check for Updates…
- Ensure that the version of Archicad you are using is up-to-date and that the latest update is installed.
