Issue Description

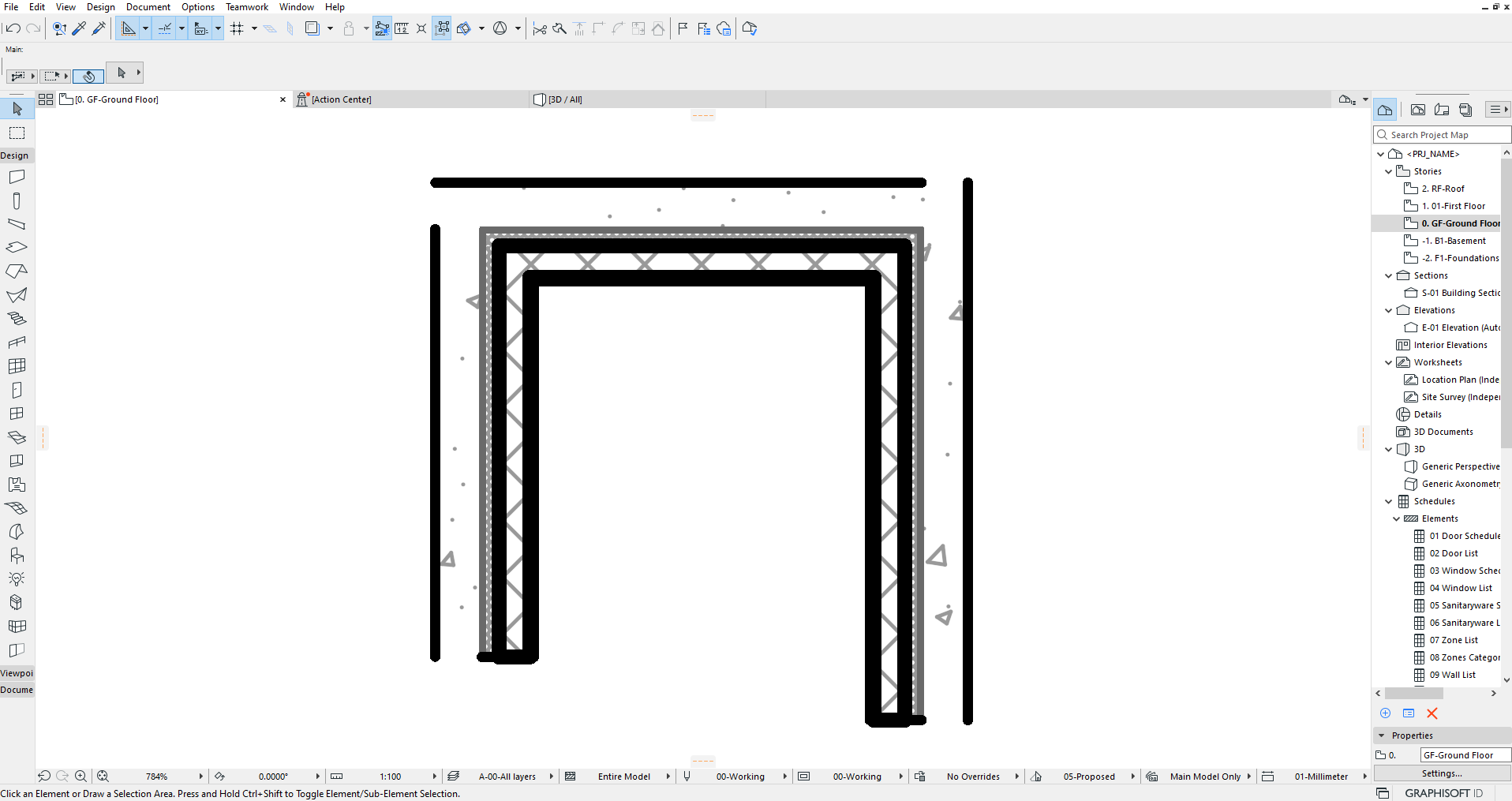

When turning on True Line Weights some of the lines are not correct/continued, why is this?
Solution

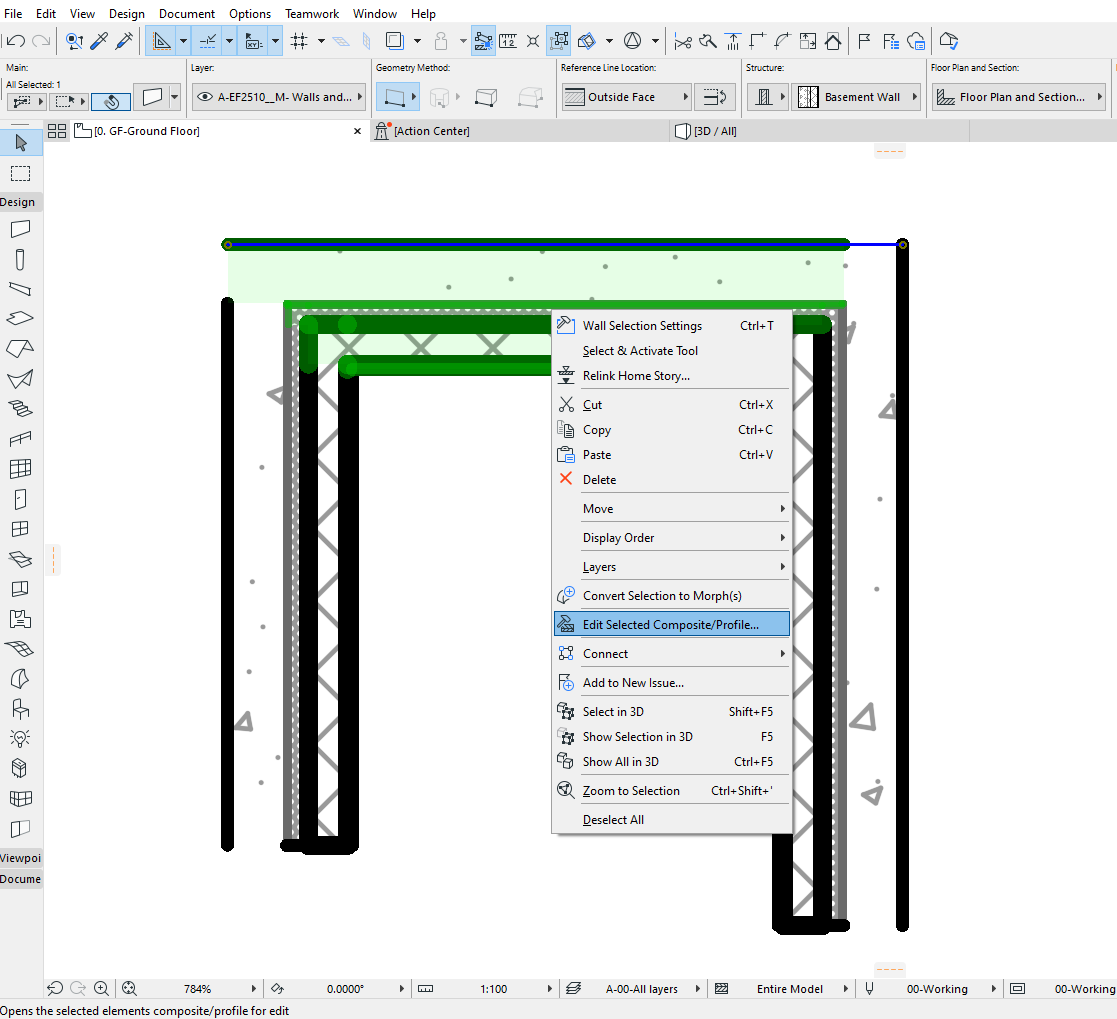

On the Plan select the composite wall. Right-hand click and choose Edit Selected Composite Profile.

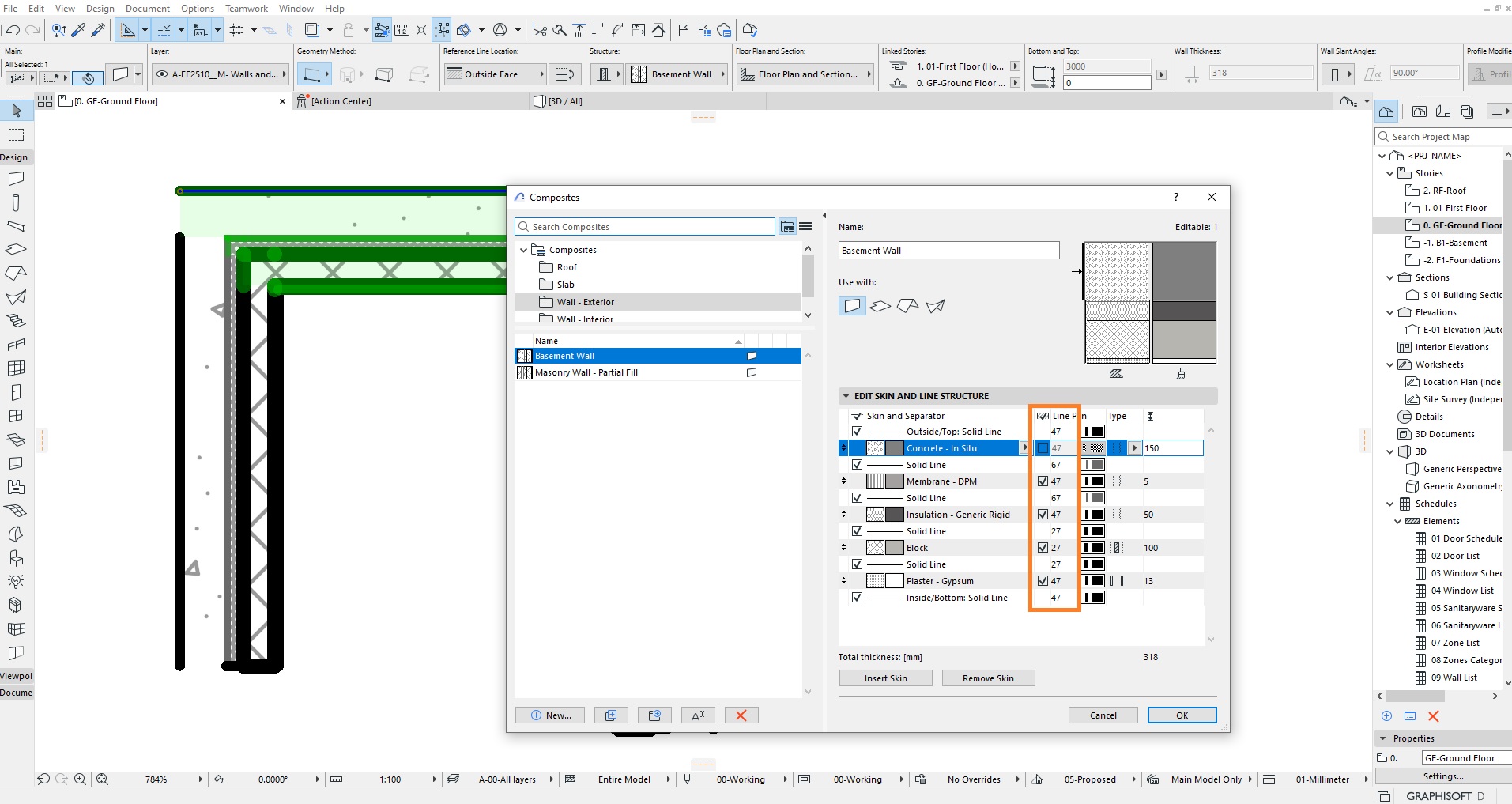

In the Composite dialogue box, ensure that all the Line Pen boxes are checked. Once done, click OK to close the window.
