Issue Description
You’ve created a Mesh and now want to add contours to achieve precise representation.
Solution
Creating a contour within your Mesh:
- Take the Line, Arc or Spline Tool and draw where you would like the contour to show on your Mesh

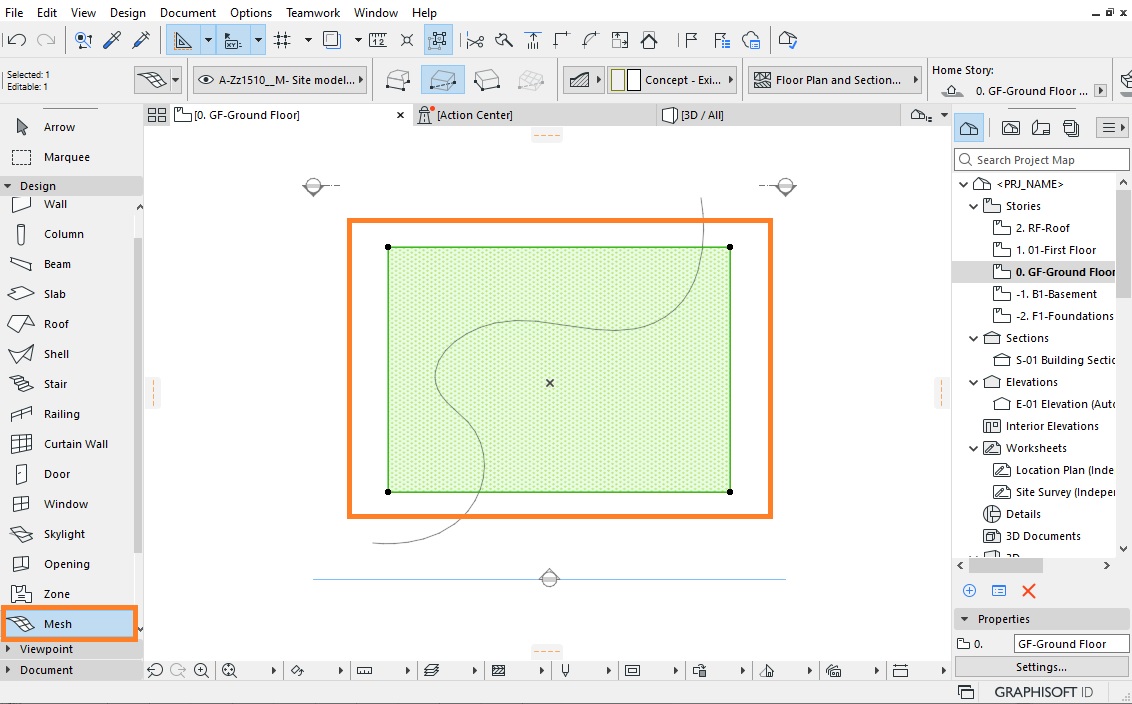

- Select the Mesh and activate the Mesh Tool.
- Using the Magic Wand (Spacebar) Left-Hand click on your line inside the Mesh

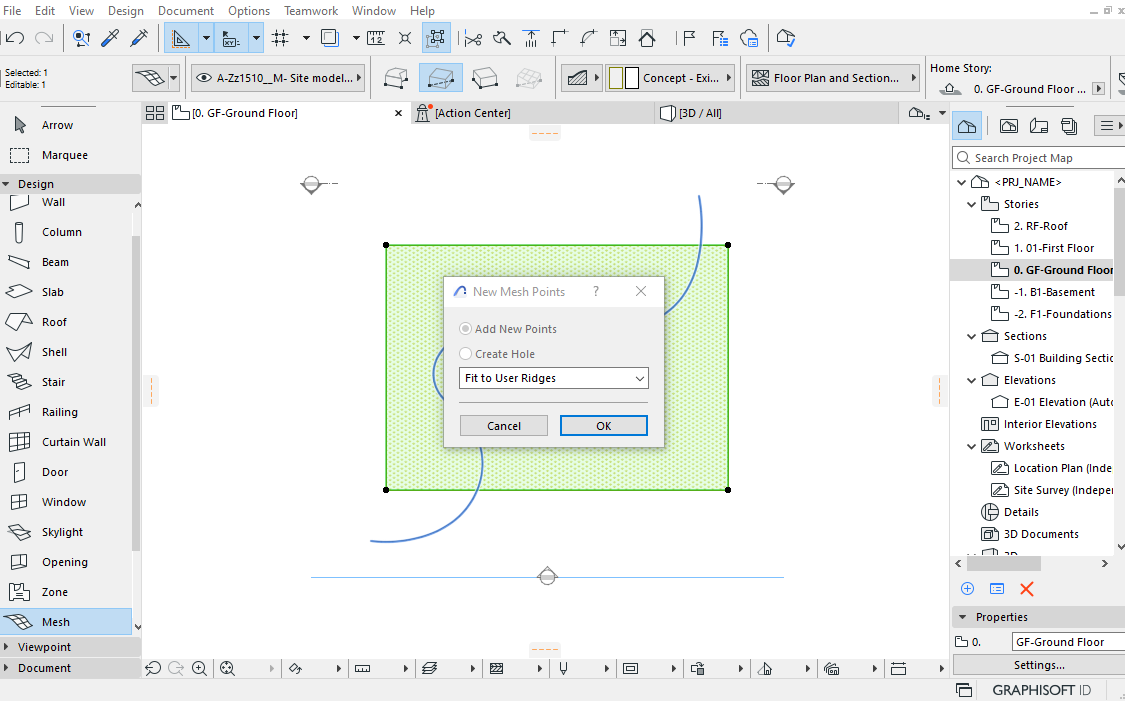

- Choose Fit to User Ridges and click OK
- Select a node and use the Pet Palette to choose the Elevate Mesh Point... option.
- In the new window you can either modify the nodes individually, or adjust them collectively as a sequence by activating the option Apply to All.
TIP: How to add single node points to a mesh
