Where can I store specification notes in my project

Issue description

You have numerous specifications you want to incorporate into your project. Ideally, you want to place these specifications as plain text and labels. To efficiently manage these specifications, they should be handled centrally, allowing for easy updates as the project progresses.

Solution

Using the Project Info in Archicad allows you to manage and document essential details about your project efficiently. Here’s how to access and use the Project Info feature:

Accessing Project Info.

1. Open Project Info:
   • Go to the File menu at the top of the screen.
   • Select Info > Project Info.

Using Project Info.

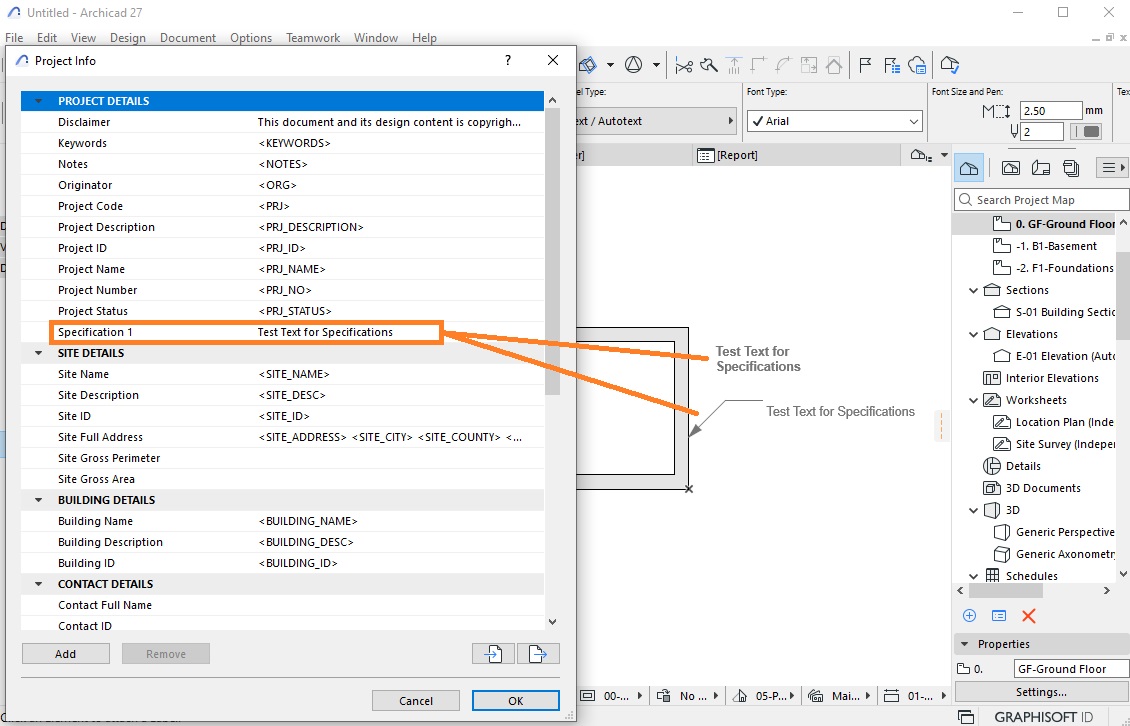

1. Project Data:

   • In the Project Info dialog box, you’ll see various fields, these fields allow you to enter details about the project, such as the project name, location, client information, and more.

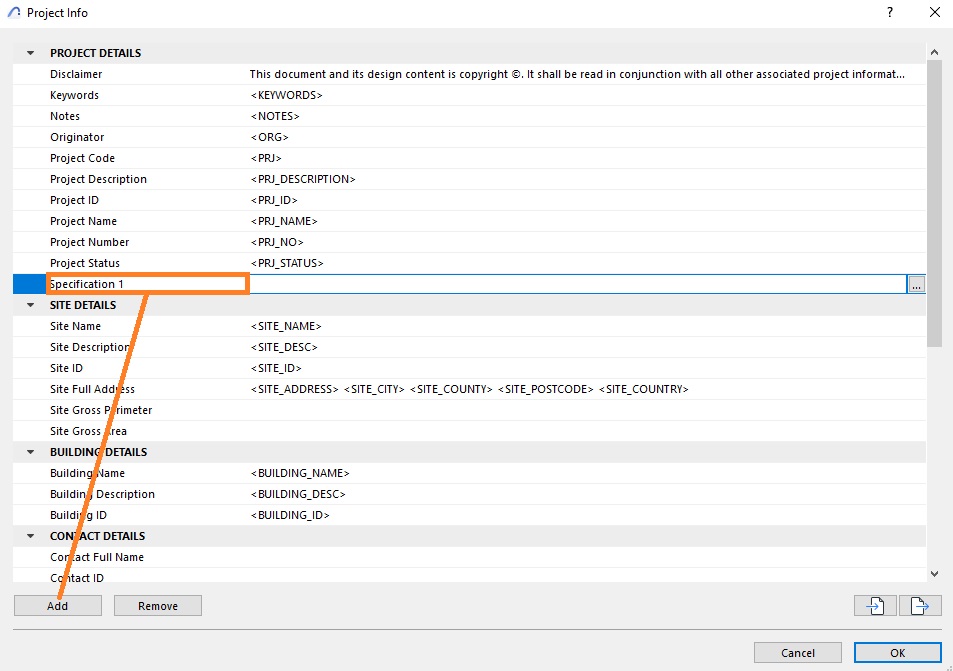

2. Customizing Fields:

   • You can customize the information fields by adding, renaming, or deleting them according to your project needs.
   • Click the Add or Remove buttons to manage the fields.

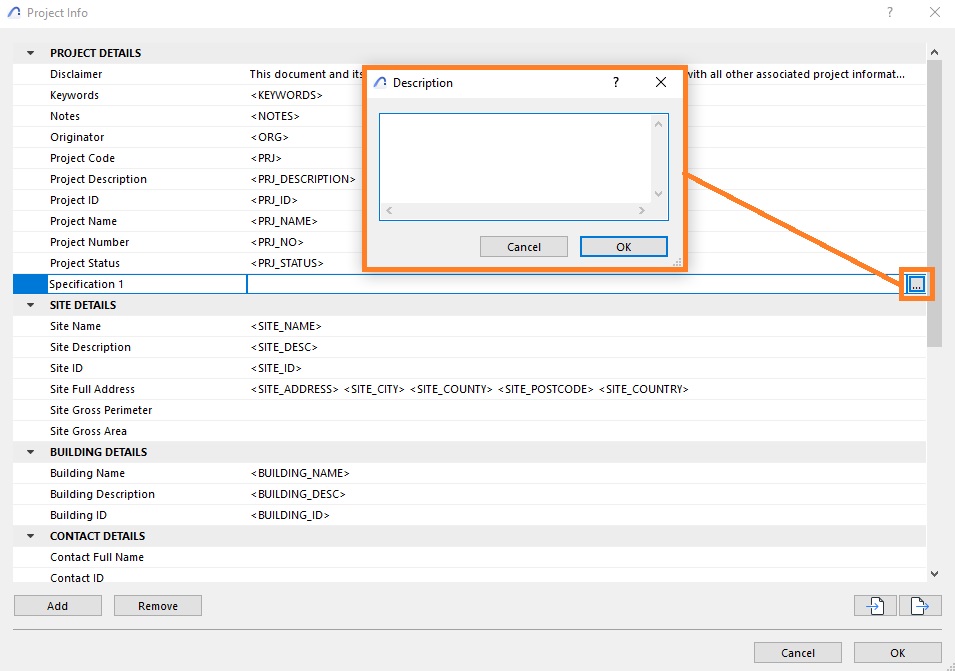

3. Filling in Details:

• • Fill in the relevant information in the provided fields. This information can include general project details, building specifications, and contact information for stakeholders.
  • Be as detailed as necessary to ensure all critical project information is documented.

4. Using Project Info in Documentation:

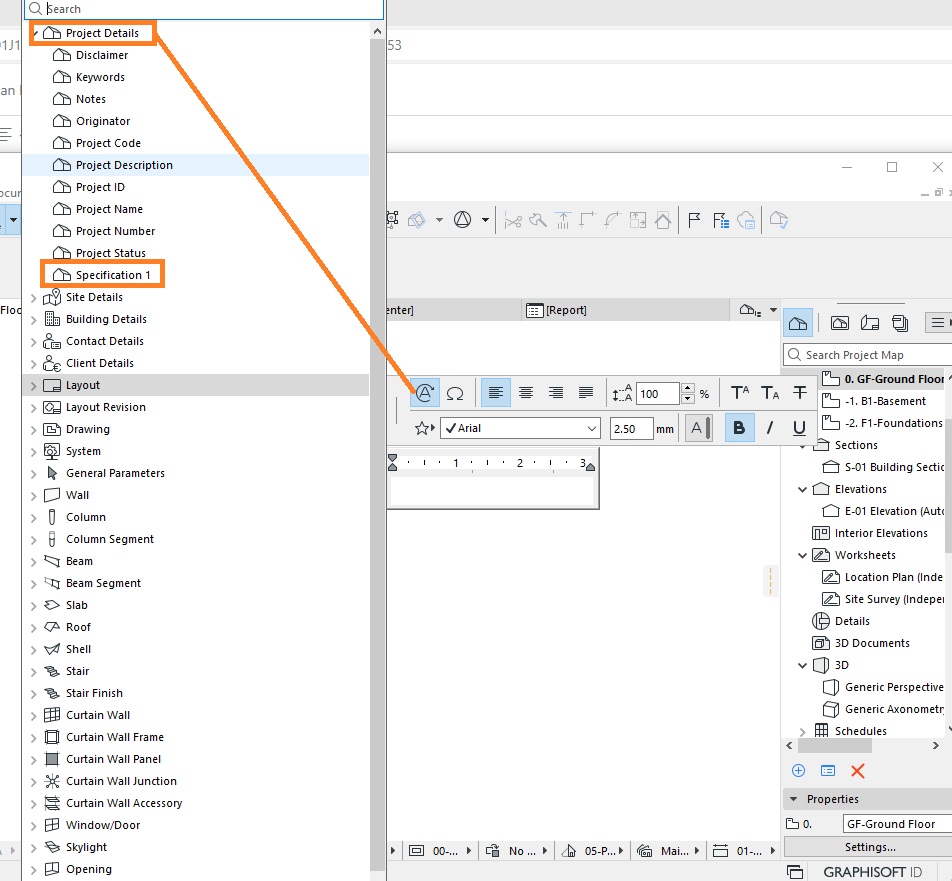

• • The details entered in the Project Info can be automatically inserted into your project’s documentation as Text and Labels.  For Text use the Auto Text function

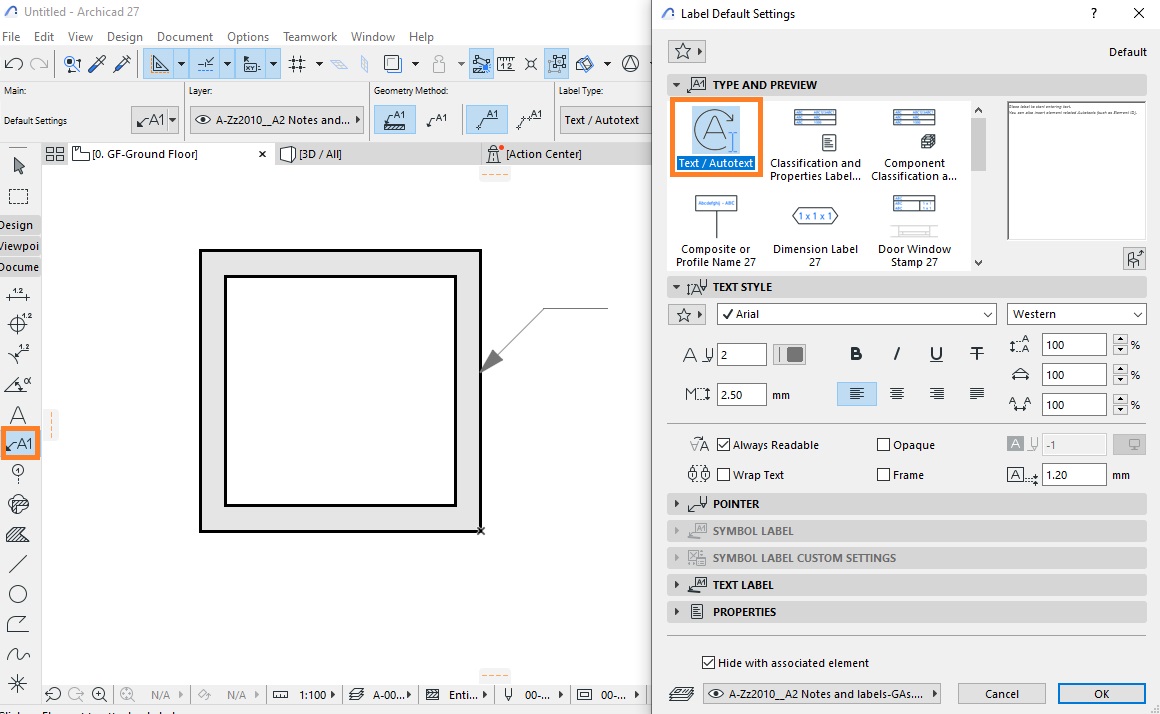

For Labels use the Auto Text option and populate the labels as above.

5. Managing Changes:

• • Keep the Project Info updated as your project progresses. This ensures that all project details and documentation remain accurate.

Benefits of Using Project Info.

• Centralized Information: Keeps all project details in a single, easily accessible location.
• Improved Accuracy: Reduces the risk of errors.
• Streamlined Workflow: Simplifies the process of updating and managing project information.

Using the Project Info feature in Archicad helps maintain organized, detailed, and up-to-date project documentation, facilitating smoother project management and communication.
