Zone volume did not change after Solid Element Operation

Issue Description

You notice that the volume of a Zone is not changing on its corresponding label or stamp, after performing a Solid Element Operation (SEO) or using the Crop Zone command.

Solution

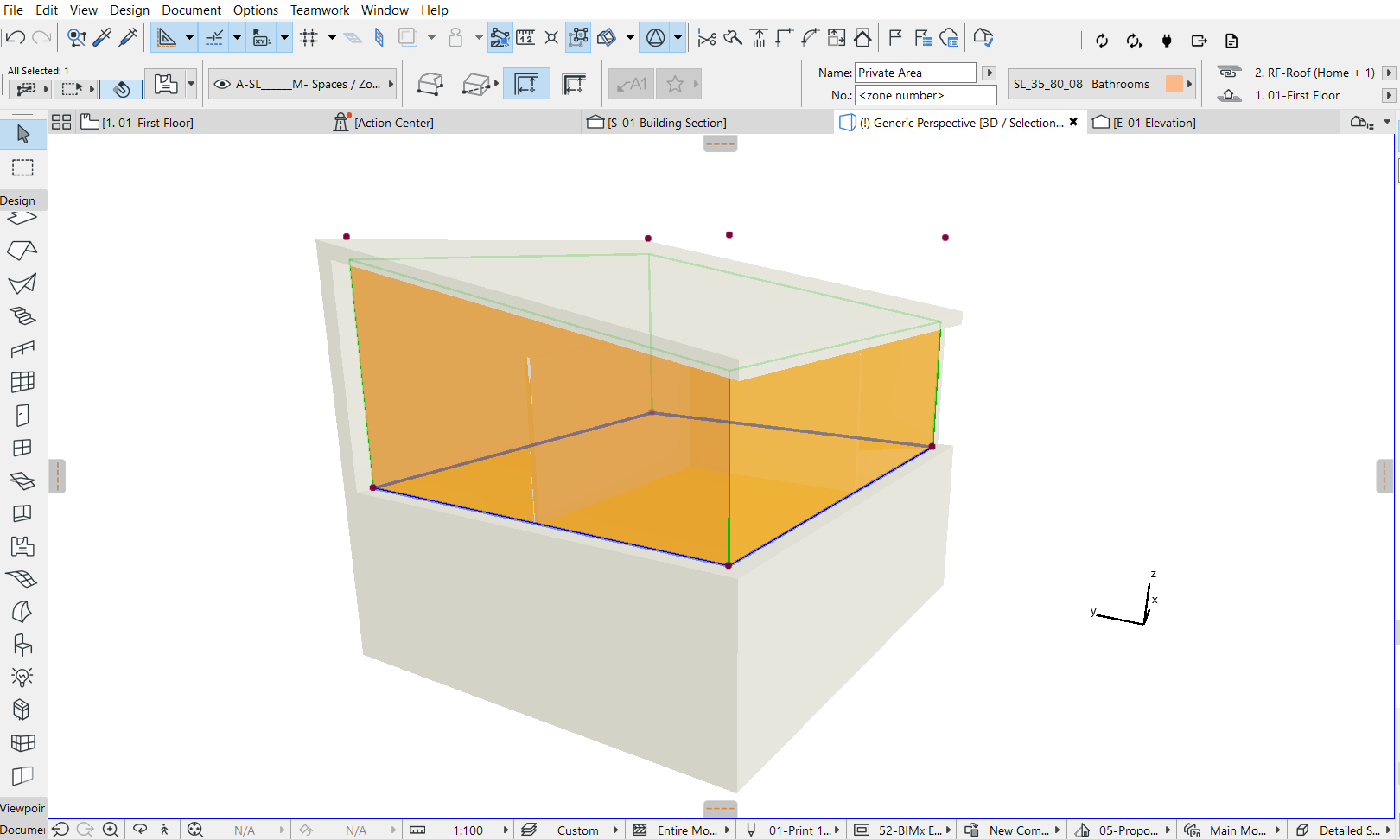

In this example we are using a Zone to calculate the volume of a room with a single-plane roof. To update the Zone's Volume after a geometry change, follow the steps below to resolve this issue:

1. Select your Zone or Zones.

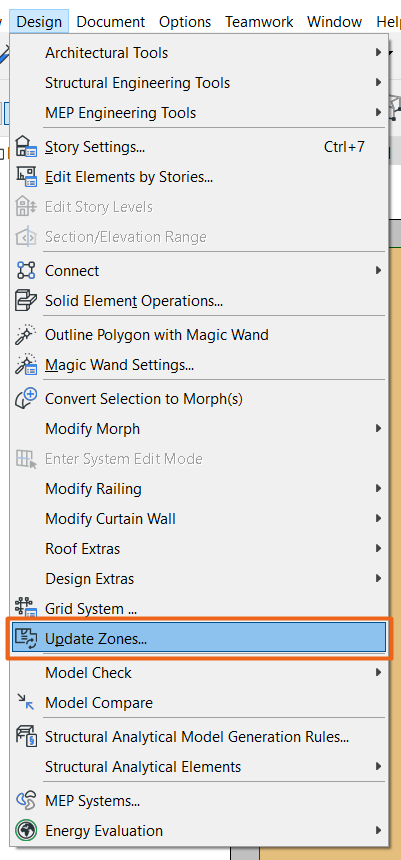

2. Go to Design > Update Zones.

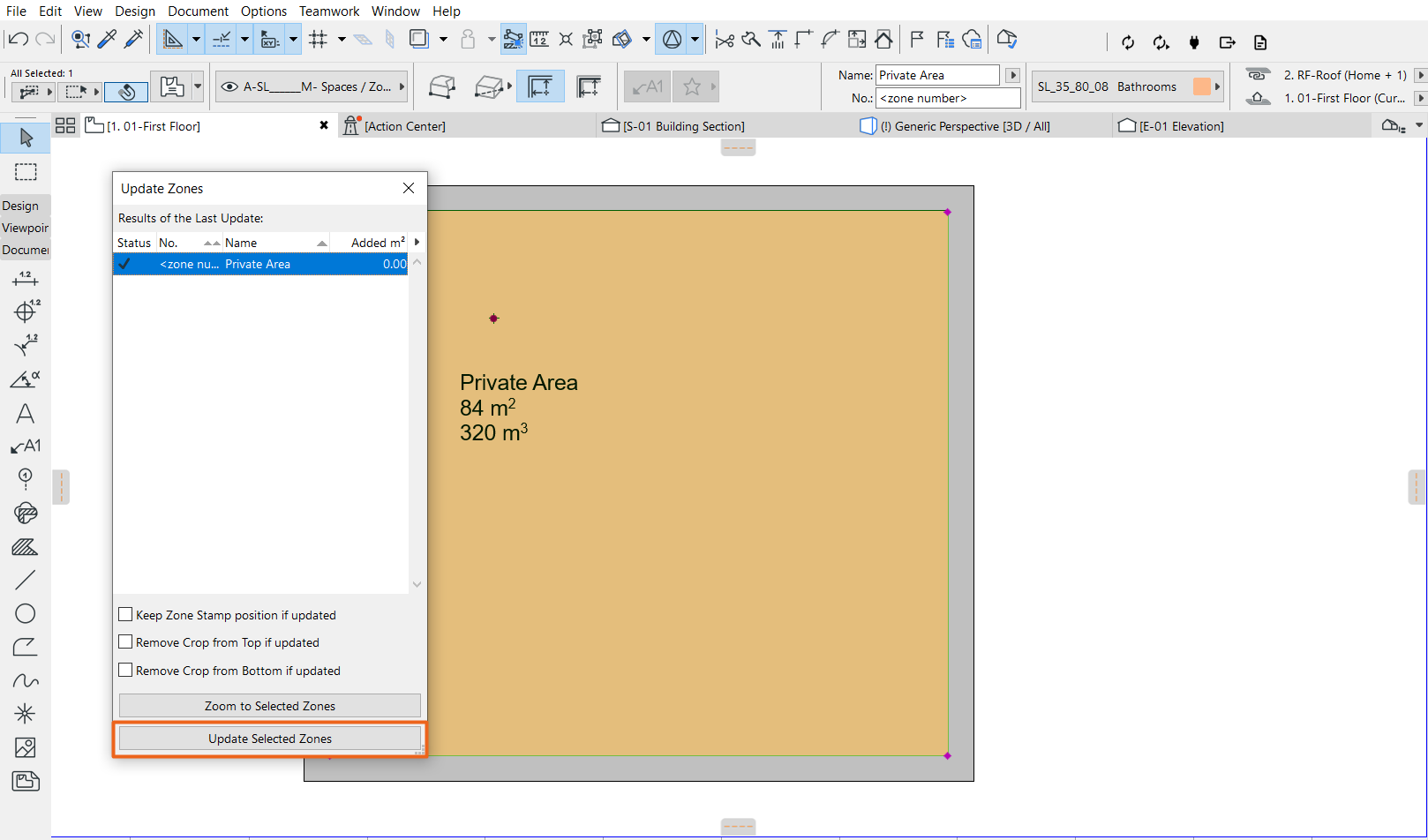

3. Click Update Selected Zones in the dialog that opens.

4. Close the Update Zones window.

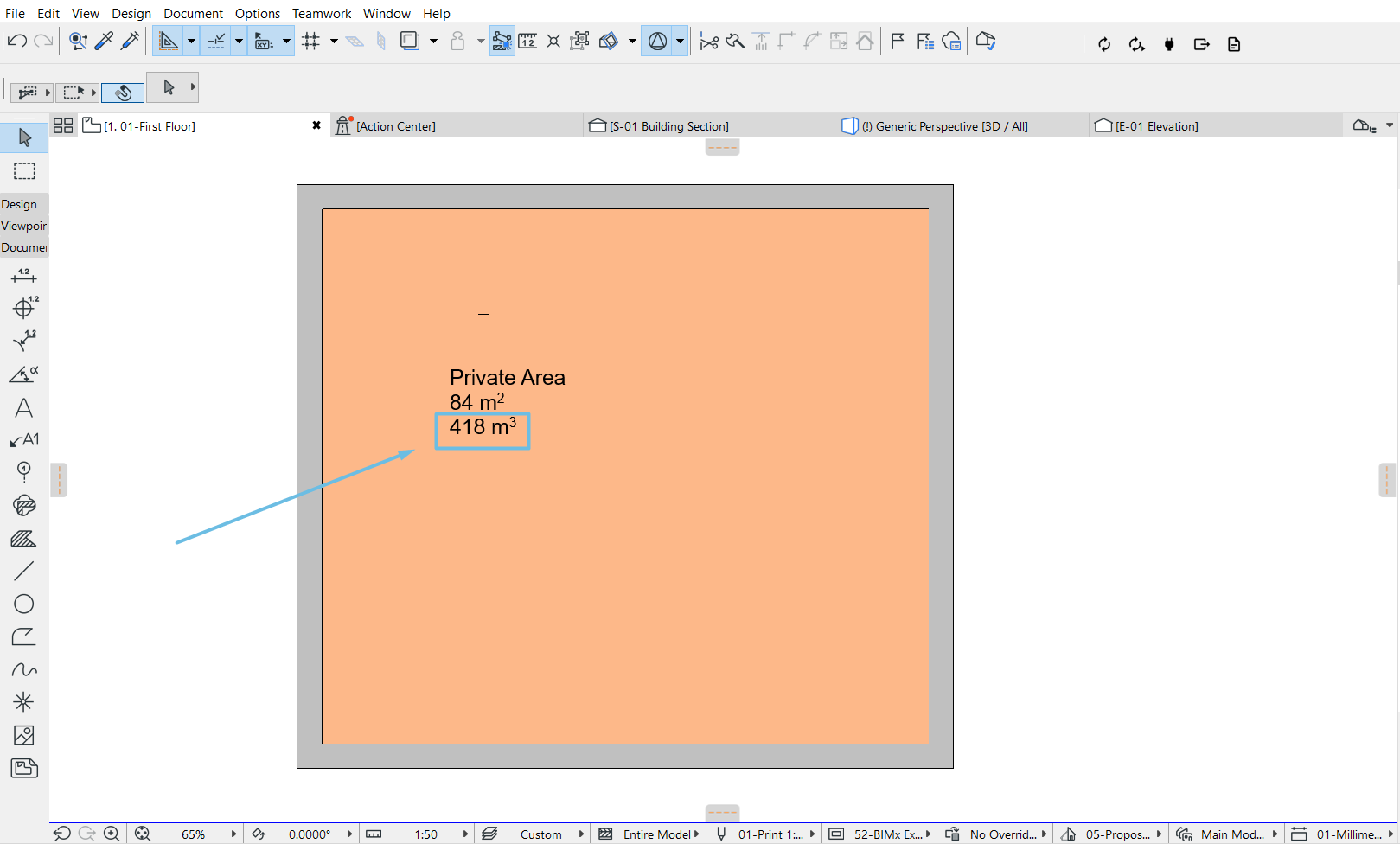

   This will ensure that all changes are applied and the zone volumes are updated correctly.
