Different dimension units for different views.

Issue description

Use different dimension units for various views in your project by creating and applying multiple Dimension Preferences. This allows you to present measurements in the format best suited for each view.

Solution

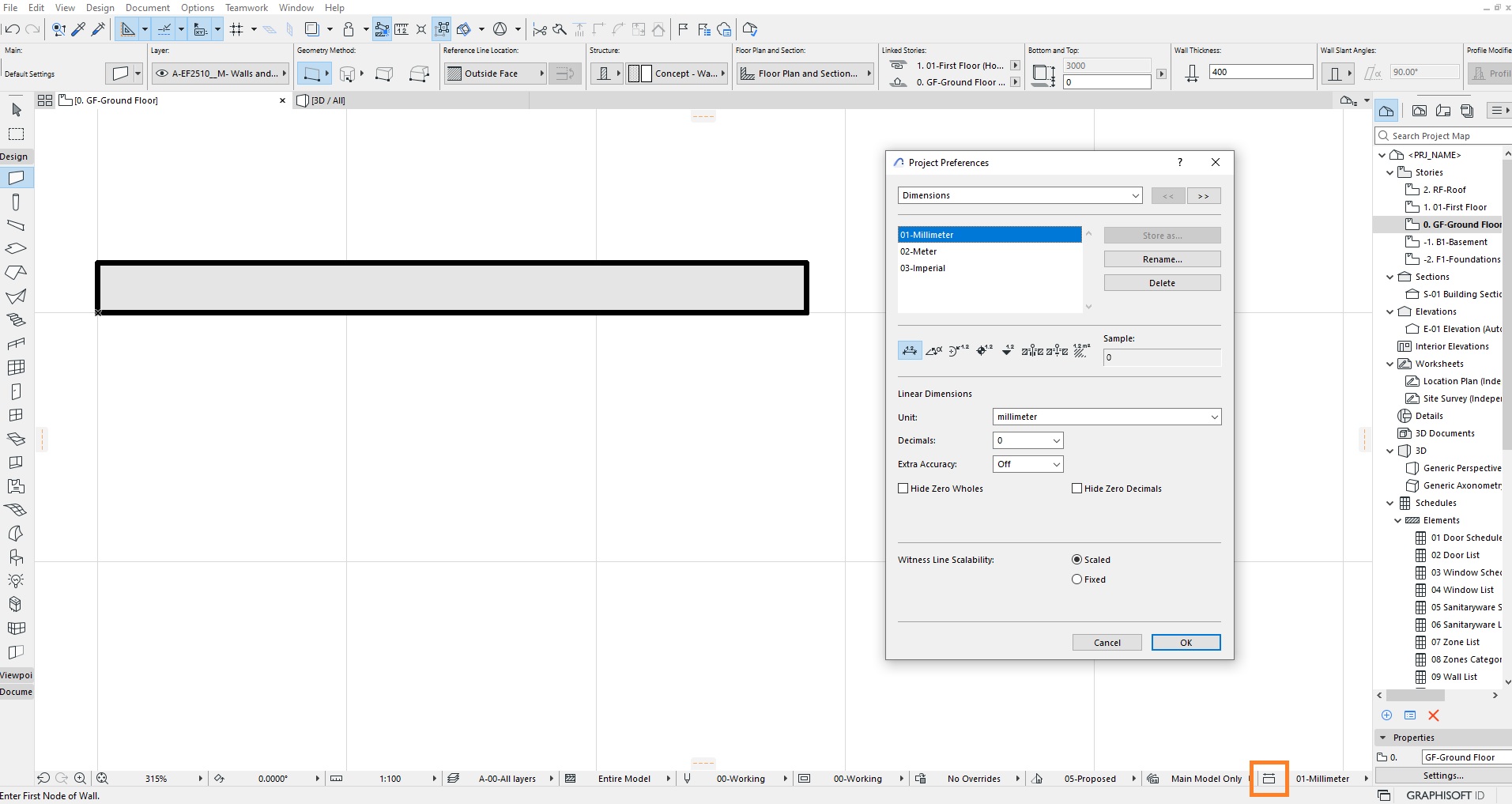

1. Open the Dimension Preferences from Options> Project Preferences> Dimensions...

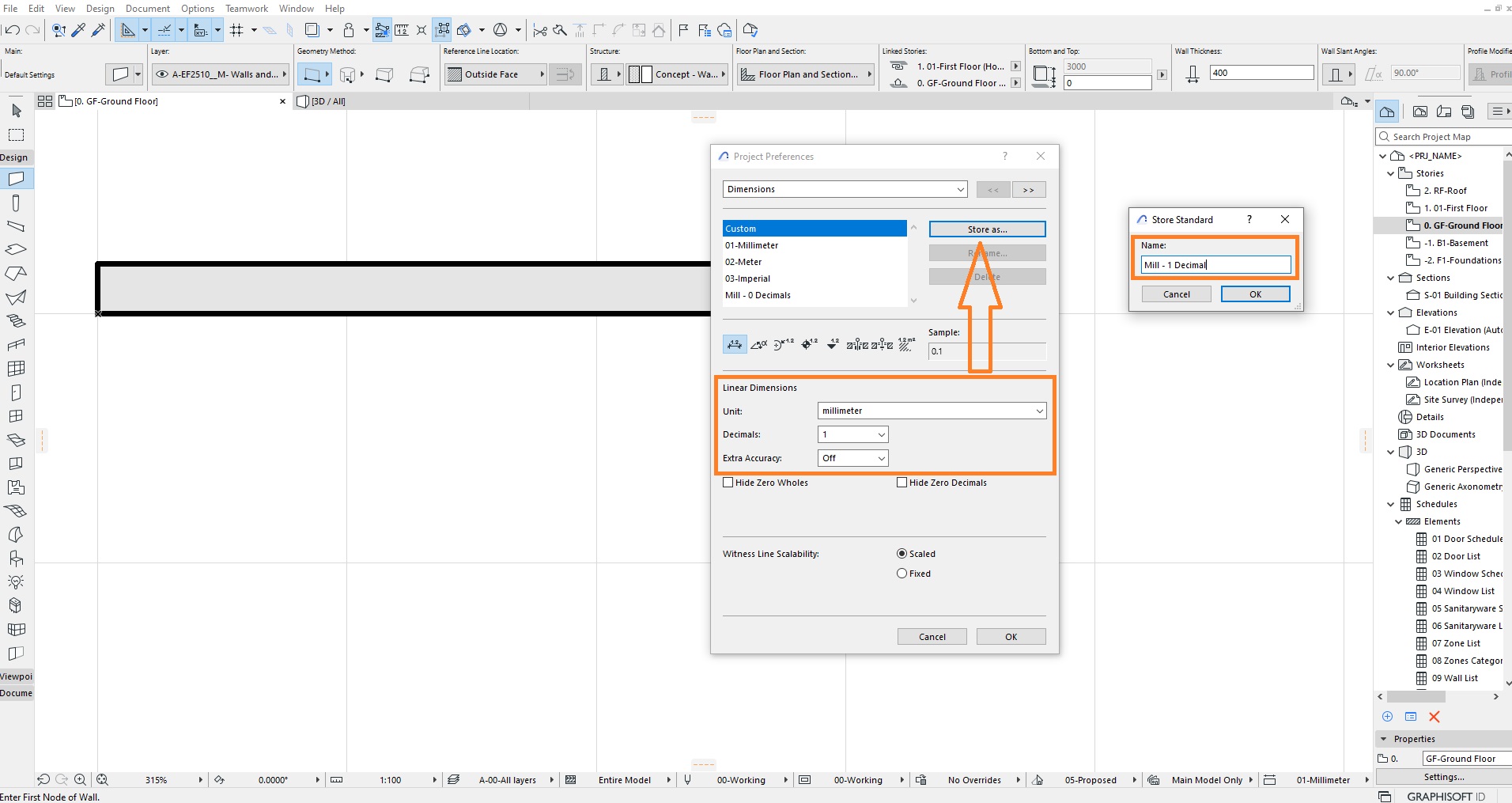

2. Edit the Dimension style. Once you change these settings, the 'Store As' button will become active.



3. Give your Dimension Preference a name and select OK.  If you would like multiple styles, repeat the process.

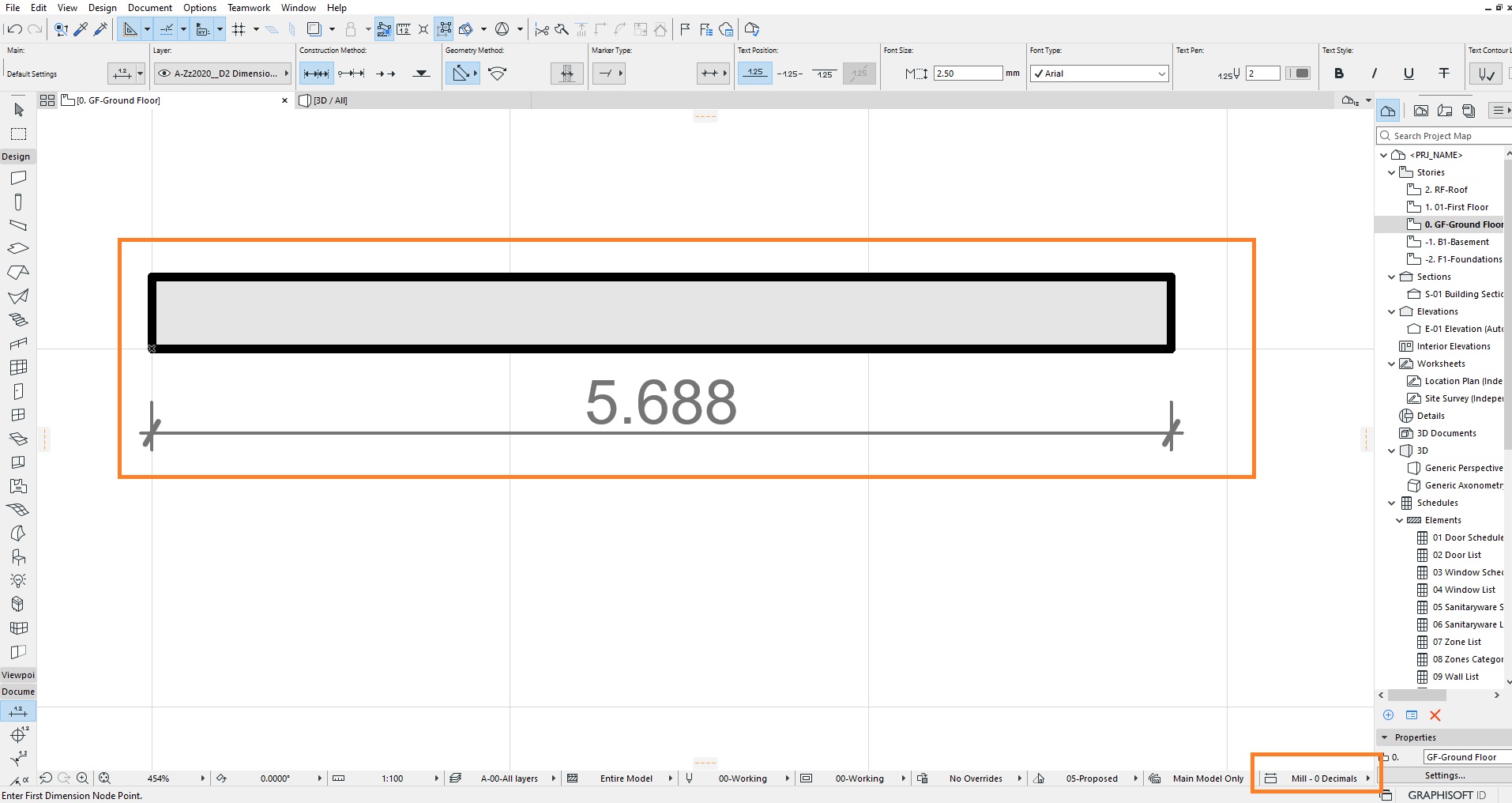

4. Dimension your element and set the Dimension Preference from the bottom of the screen.

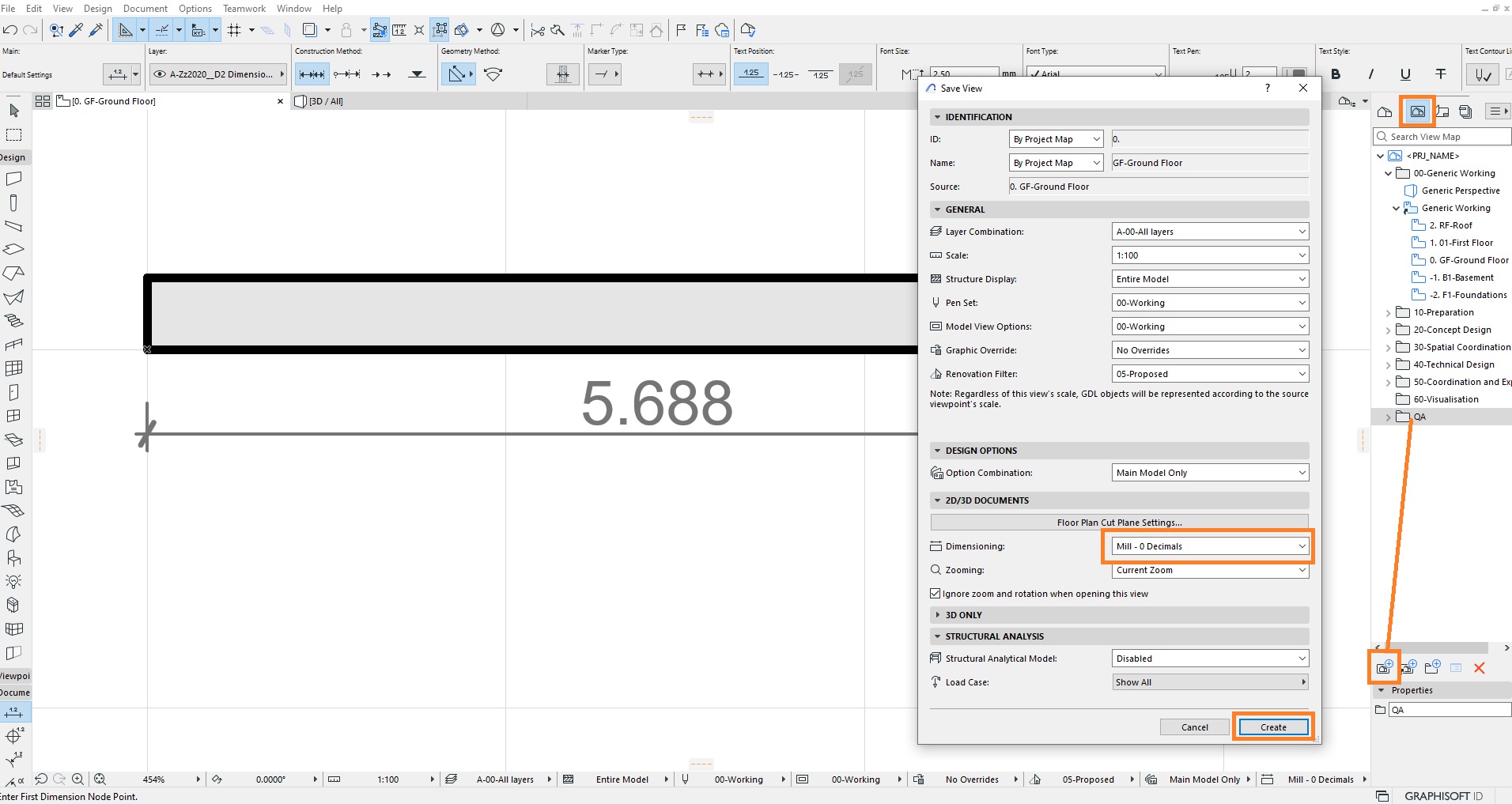

5. Using the Navigator open the View Map highlight a folder and select Save current view. Check the settings, then Name and Save the view.

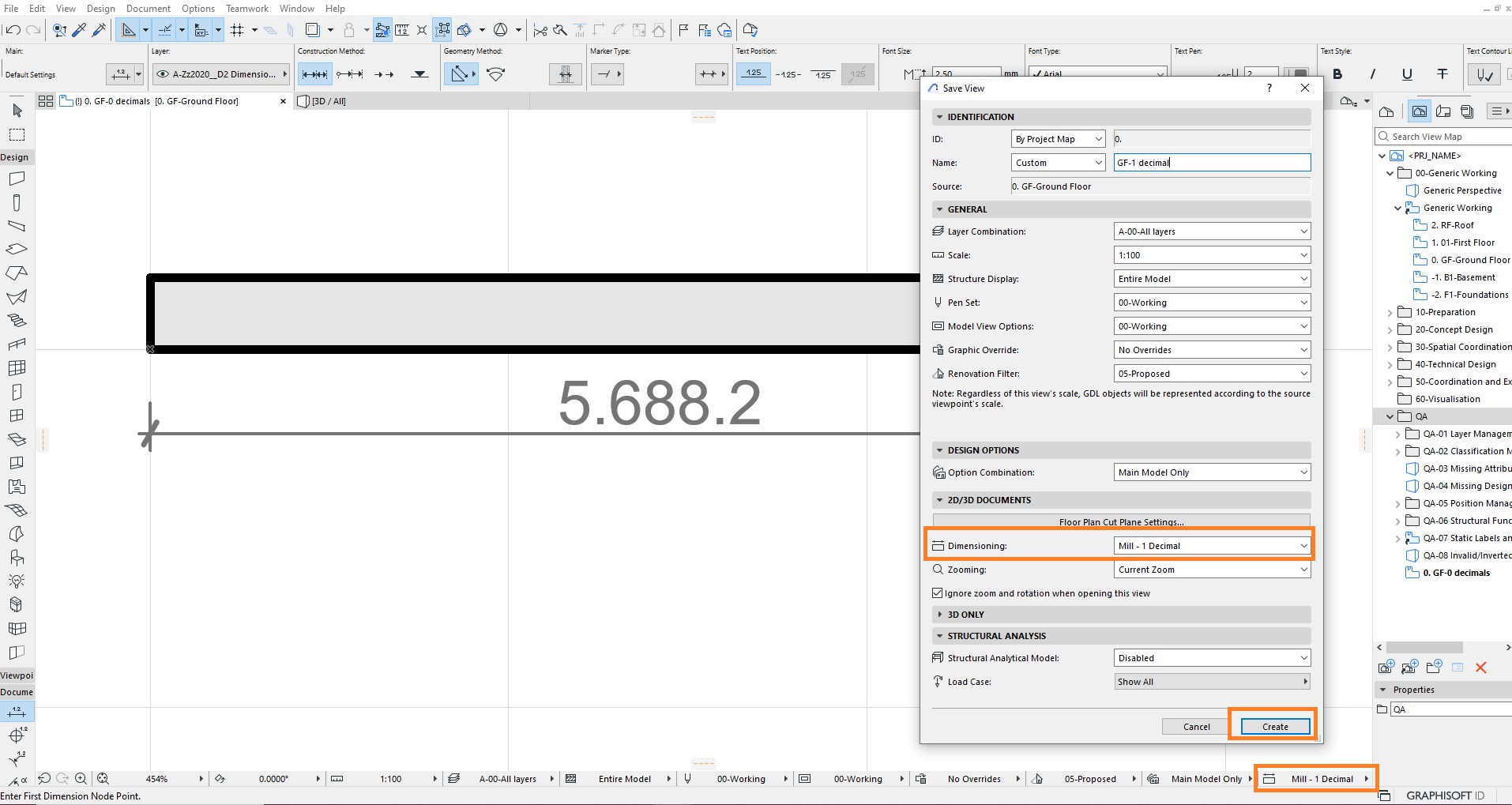

6. You will need to repeat this process for the different units you would like to show.


7. With the Navigator, you can now navigate through saved views.
