Issue Description

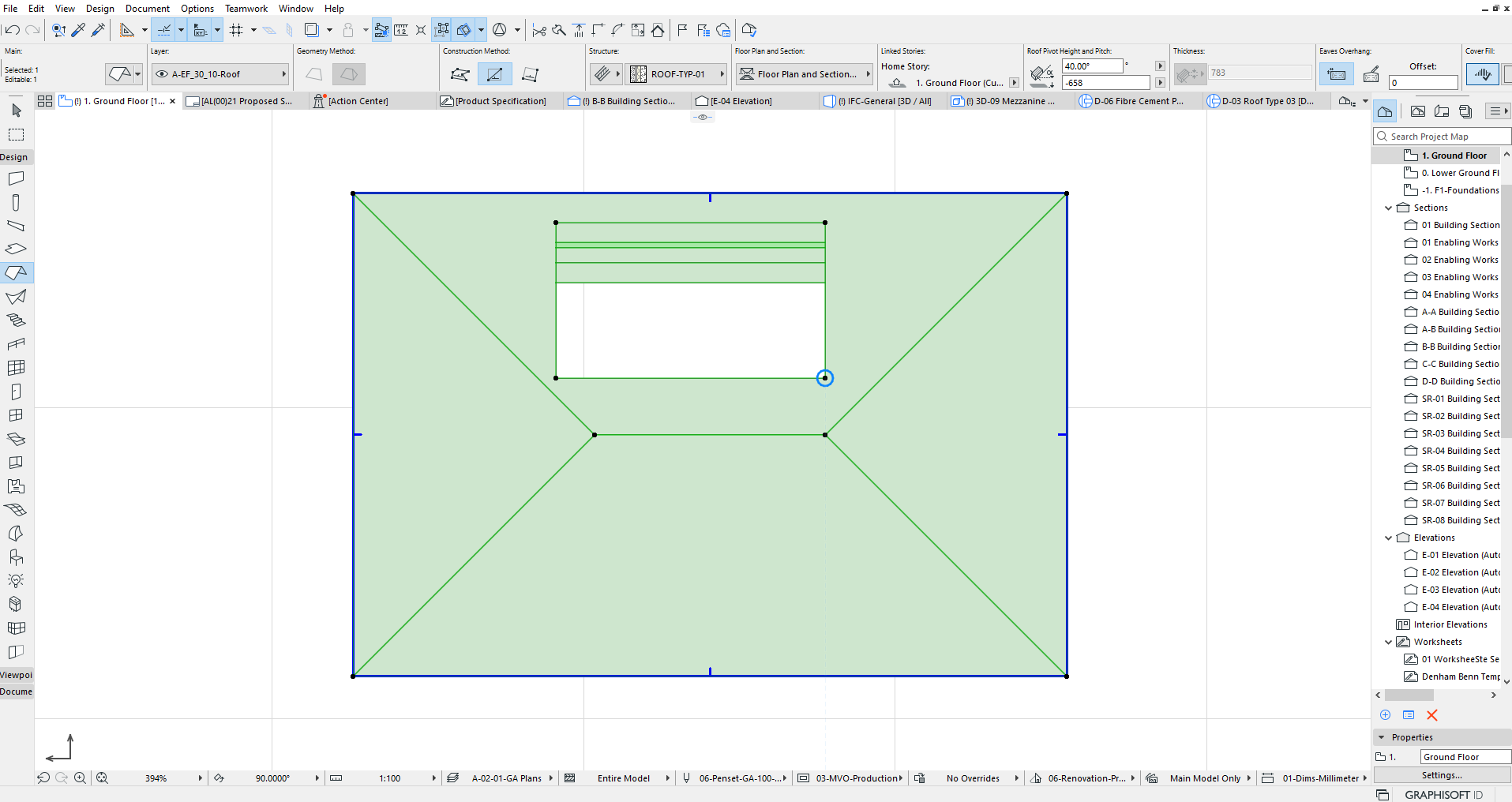

You have modelled a roof in Archicad, and you want to cut a hole in its geometry. When you use the Roof tool to draw the shape of the opening, you end up creating additional roof planes instead of a hole.
Solution
Let's go through the steps:
-

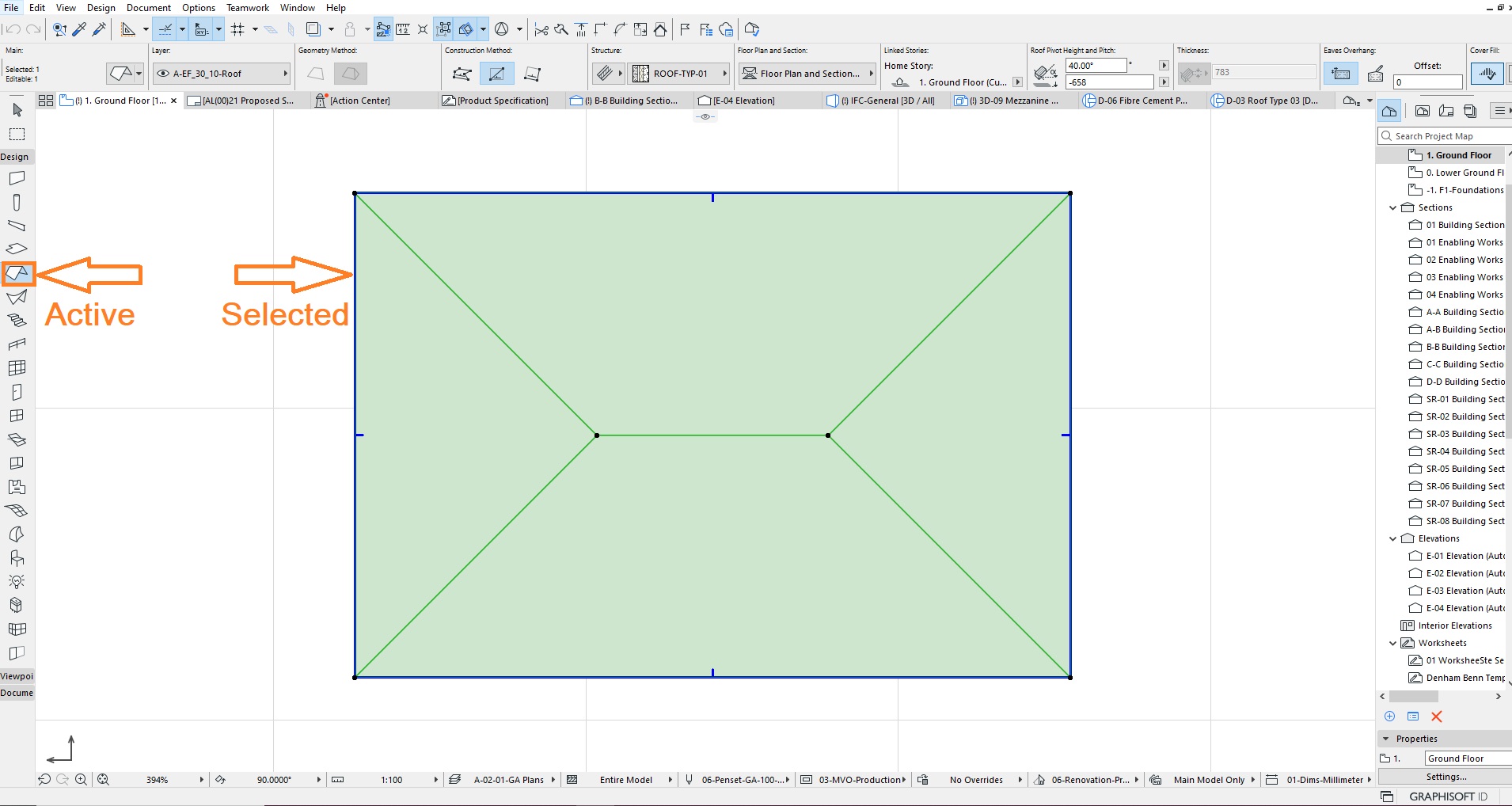

Select the existing Roof.
-
Make sure the Roof tool is Active.
-

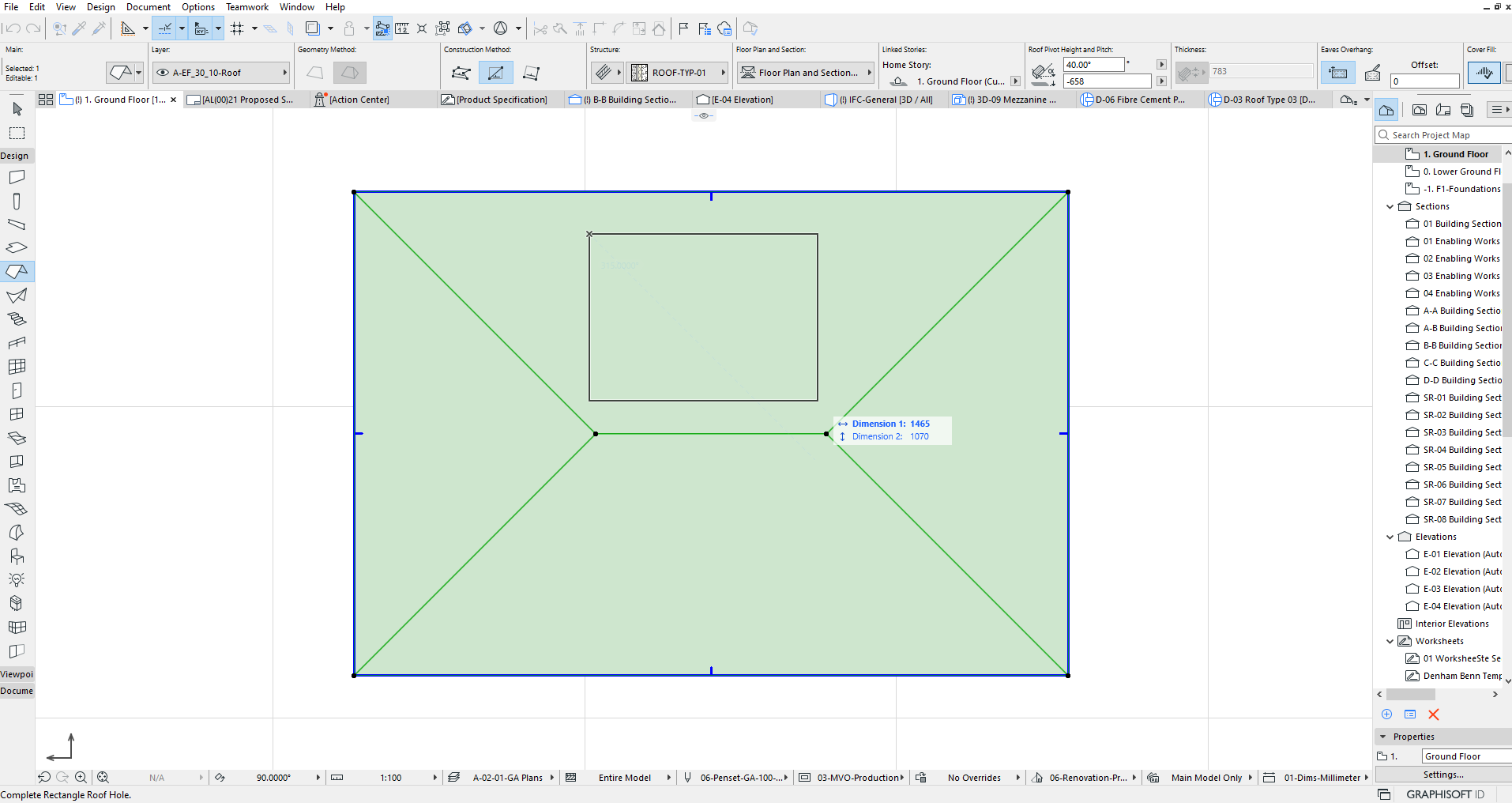

Draw inside the boundary of the selected roof. This will now become a hole.
TIP: How to delete or move a hole within a slab, Mesh or Roof
