Opening lines of Doors and Windows are not showing in schedules

Issue description

You want the door and window opening lines to appear in schedule illustrations, but they are currently missing.

Solution

The location of the Opening Line in 3D option depends on the library system you are using.

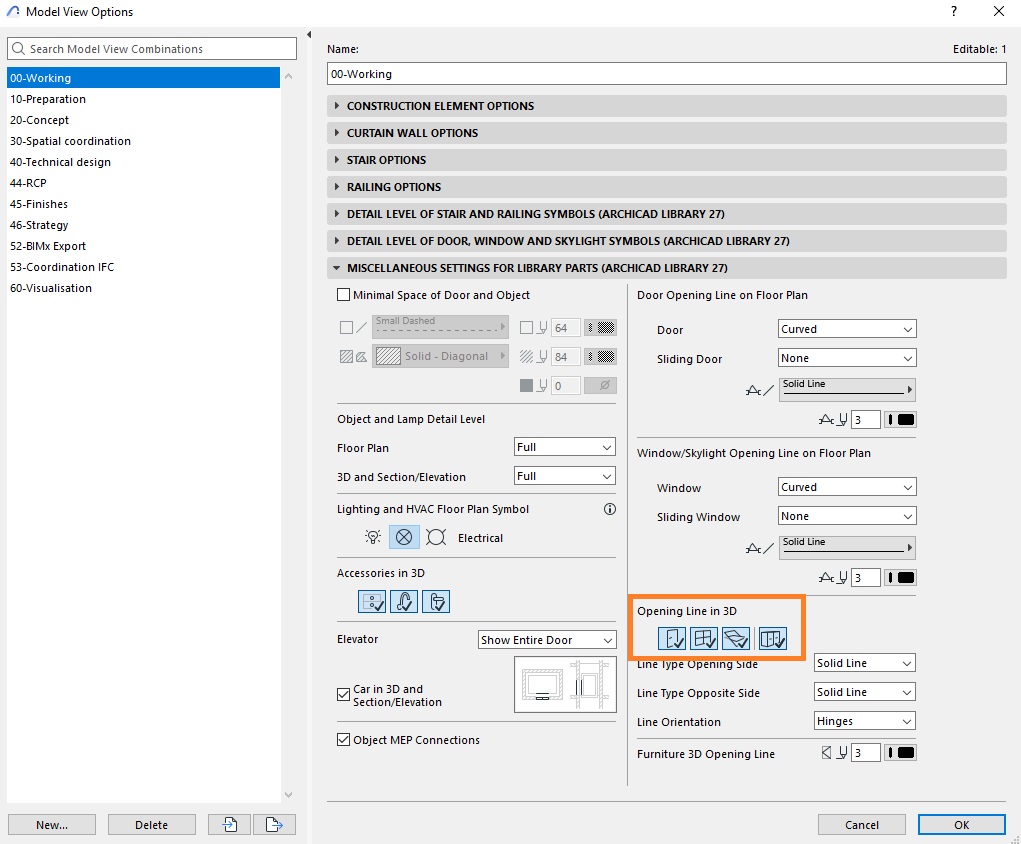

For the Monolith Library

1. Go to Design > Model View > Model View Options.
2. Expand the Miscellaneous Settings for Library Parts tab.
3. Under Opening Line in 3D, click the icons for Doors and Windows to activate this option.

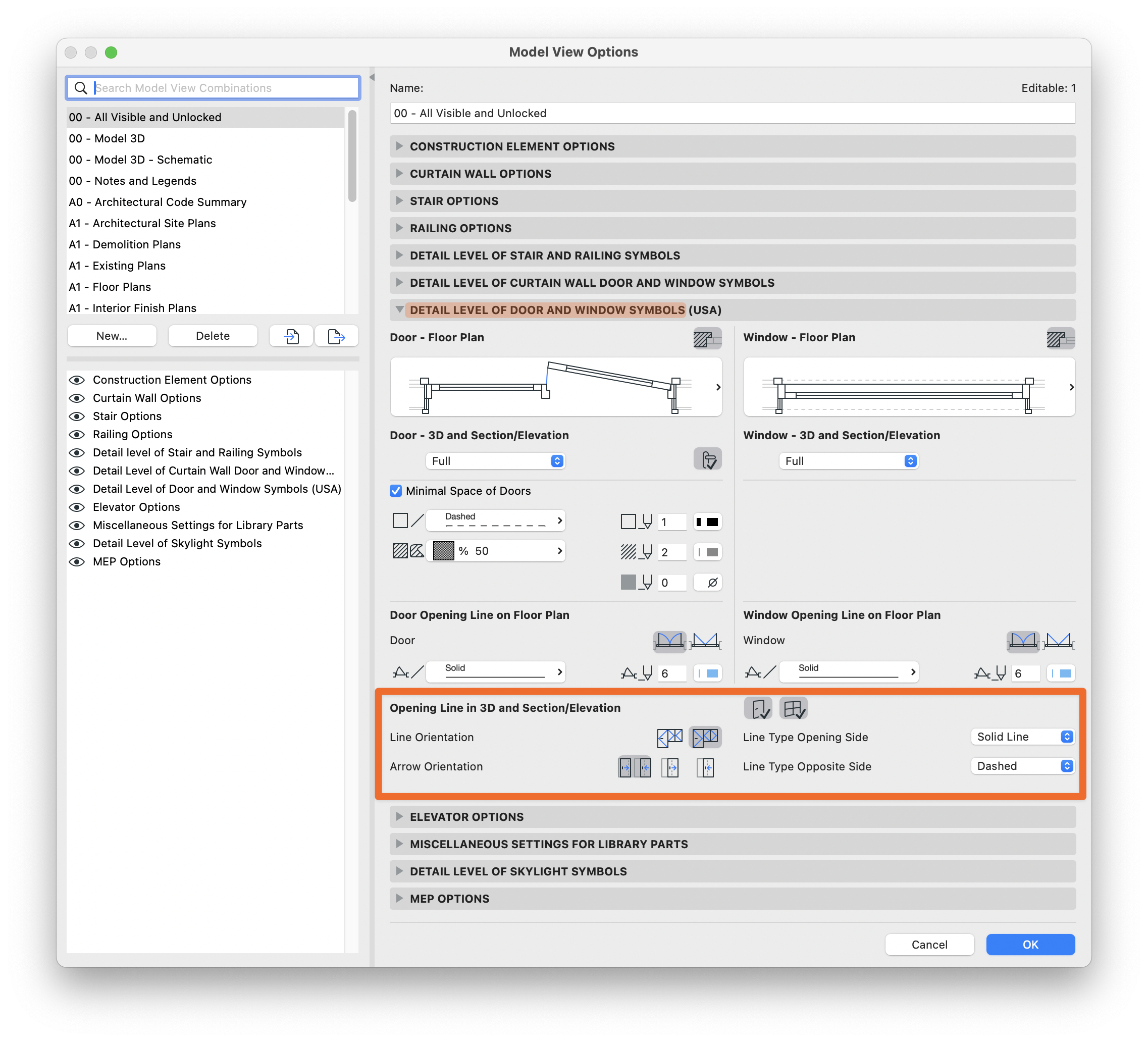

For the Global Library (Archicad 28 and later)

1. Go to Design > Model View > Model View Options.
2. Expand the Detail Level of Door and Window Symbols tab.
3. Under Opening Line in 3D and Section/Elevation, click the icons for Doors and Windows to activate this option.

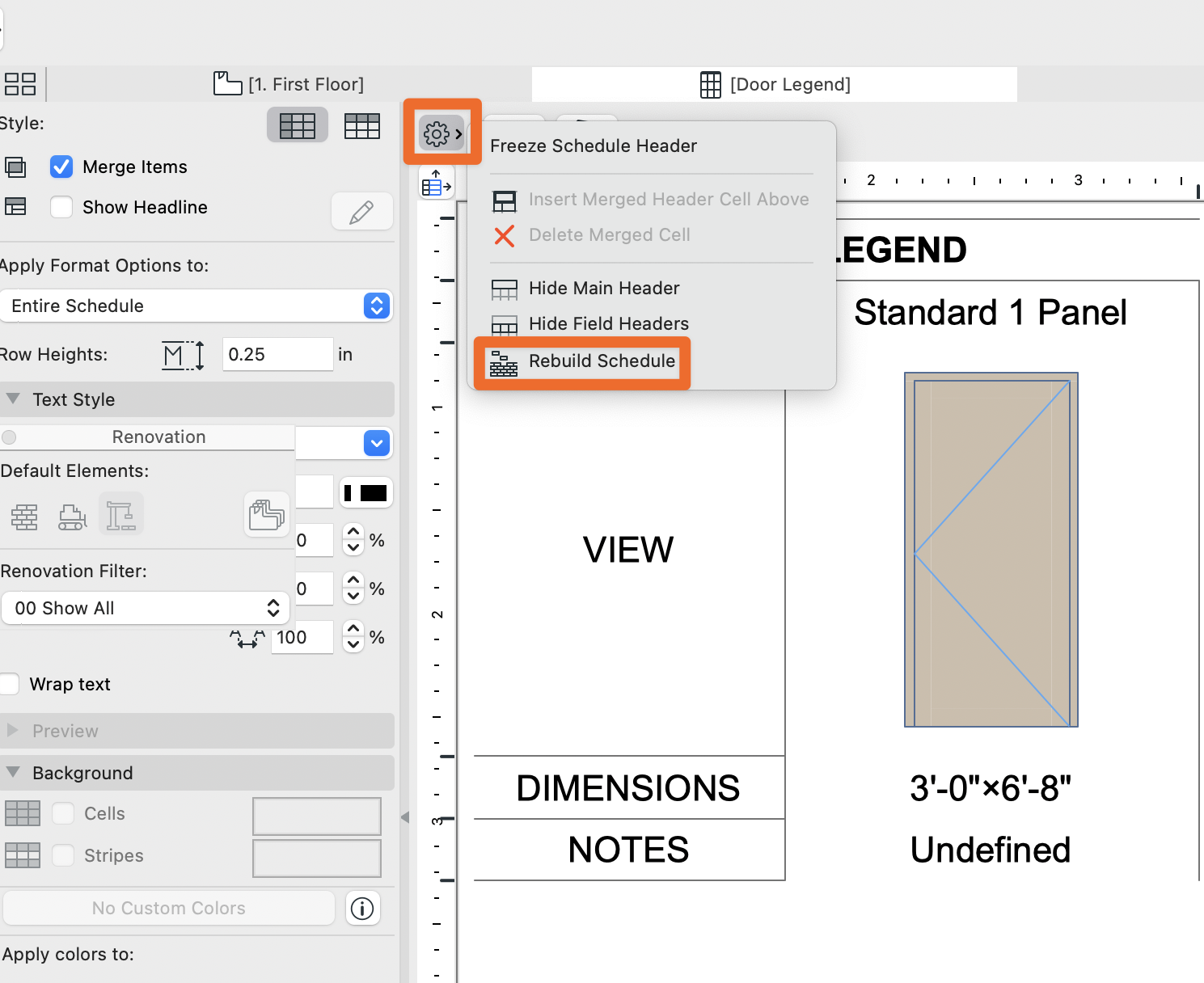

Finalize the schedule

1. Navigate back to your schedule.
2. Click on Rebuild Schedule to display the opening lines.



The opening lines should now appear as shown below:
