White Fills look gray on Viewmap/Floorplans

Issue description

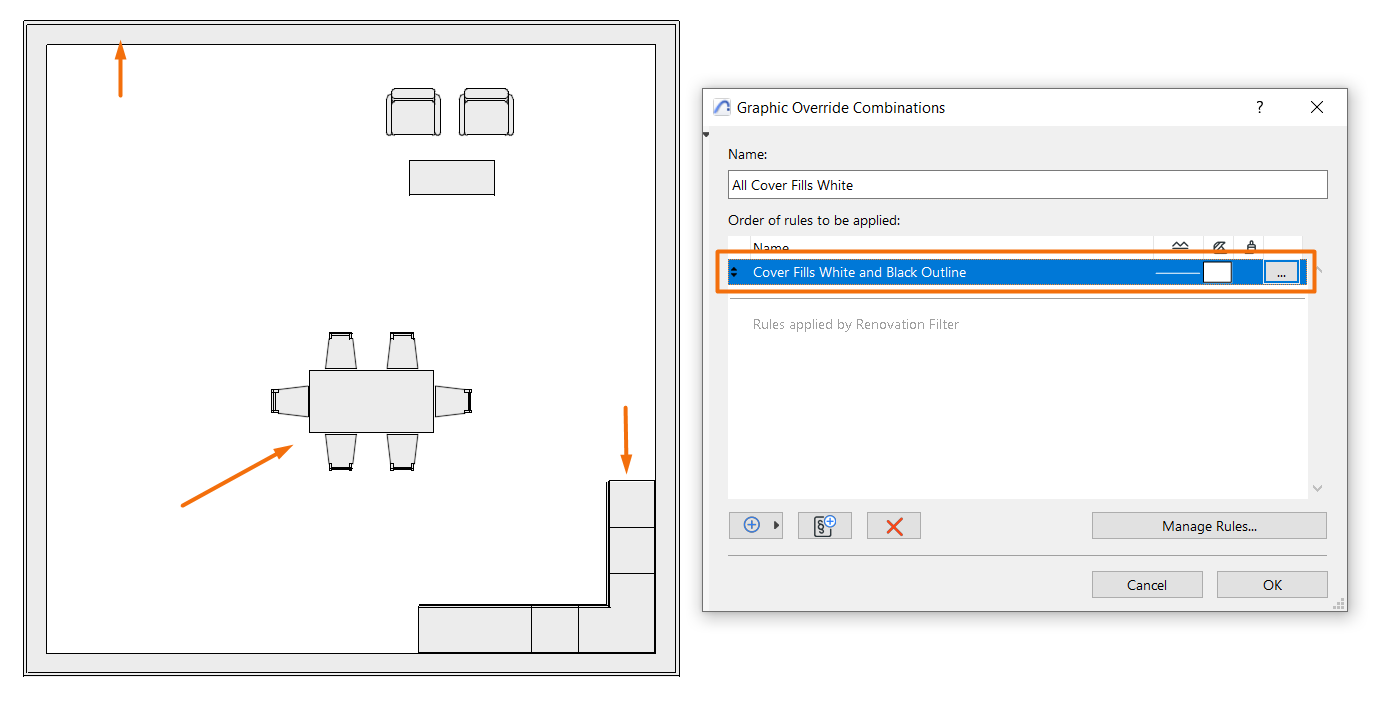

The Cover Fills of some or all Elements are set to appear as a white surface. However, they are displayed in gray or shades of gray in the View Map/Project Map.

Solution

This is due to an On-Screen Option setting, designed to help distinguish elements in the Workspace displayed in the same Pen.

To fix gray cover fills that should appear white in Archicad, follow these steps:

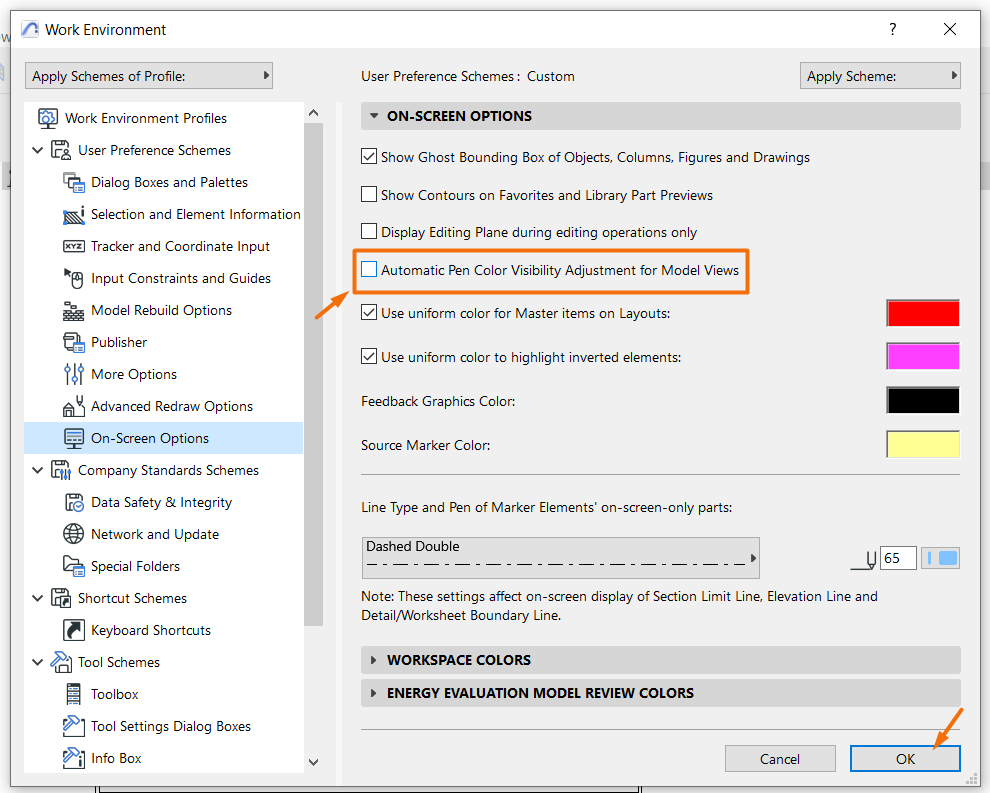

1. Go to Options > Work Environment > On Screen Options.
2. In the dialog, expand the On-Screen Options section.
3. Disable the setting Automatic Pen Color Visibility Adjustment for Model Views.
4. Click OK to confirm and apply the change.
