Zones not visible in 3D

Issue Description

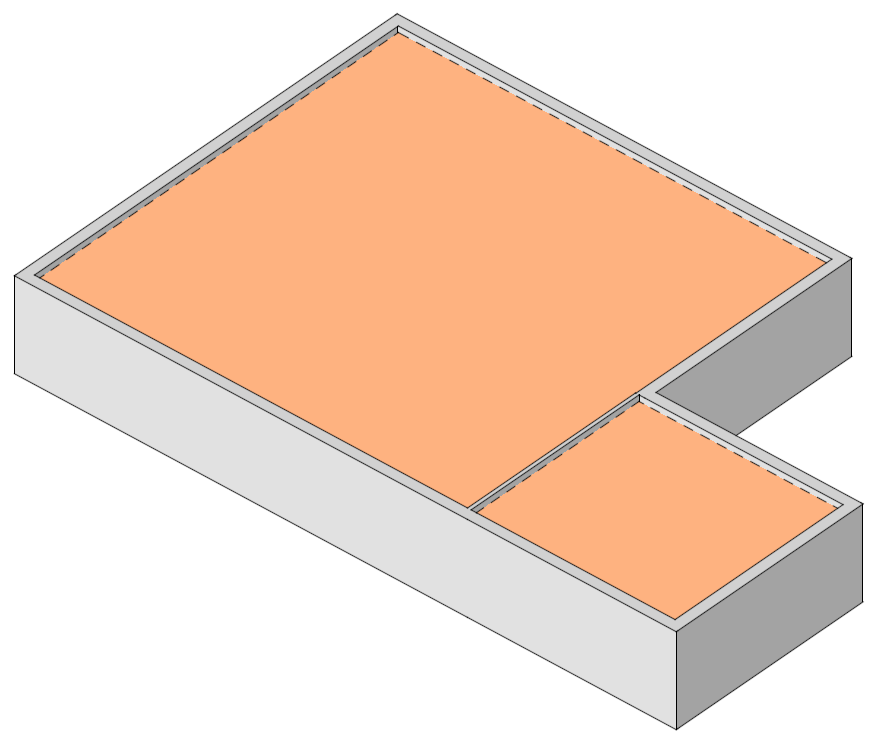

You have created a Zone, but it is not displayed in the 3D Window.

Solution

3D Filtering

By default, in Archicad, Zones are not enabled in 3D.

To activate the 3D representation of Zones:

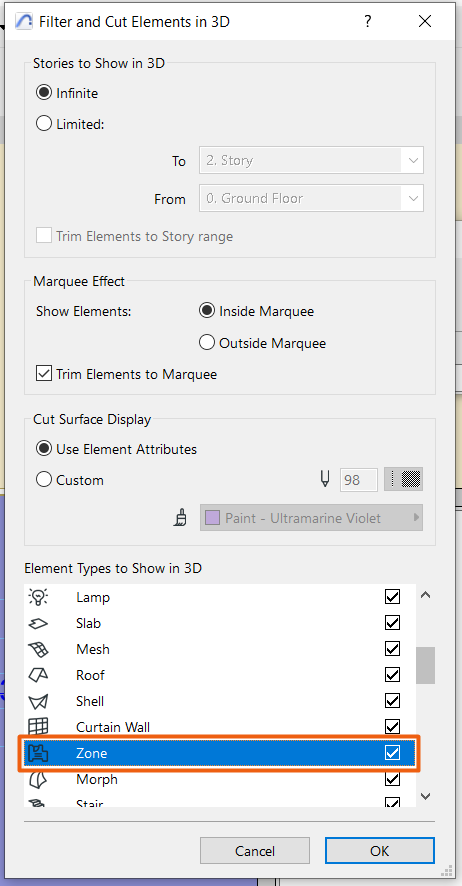

1. Go to View > Elements in 3D view > Filter Elements in 3D
2. Under Element Types to Show in 3D scroll down in the list to find Zone
3. Click on the checkbox to enable Zones in 3D Views
4. Click Ok

Renovation Filters

Layer Combination in 3D
