Lines, Text and Fills, appear blurry/pixelated in Archicad

Issue Description

The appearance of elements and lines is blurry/pixelated.

Solution

Enable Antialiasing

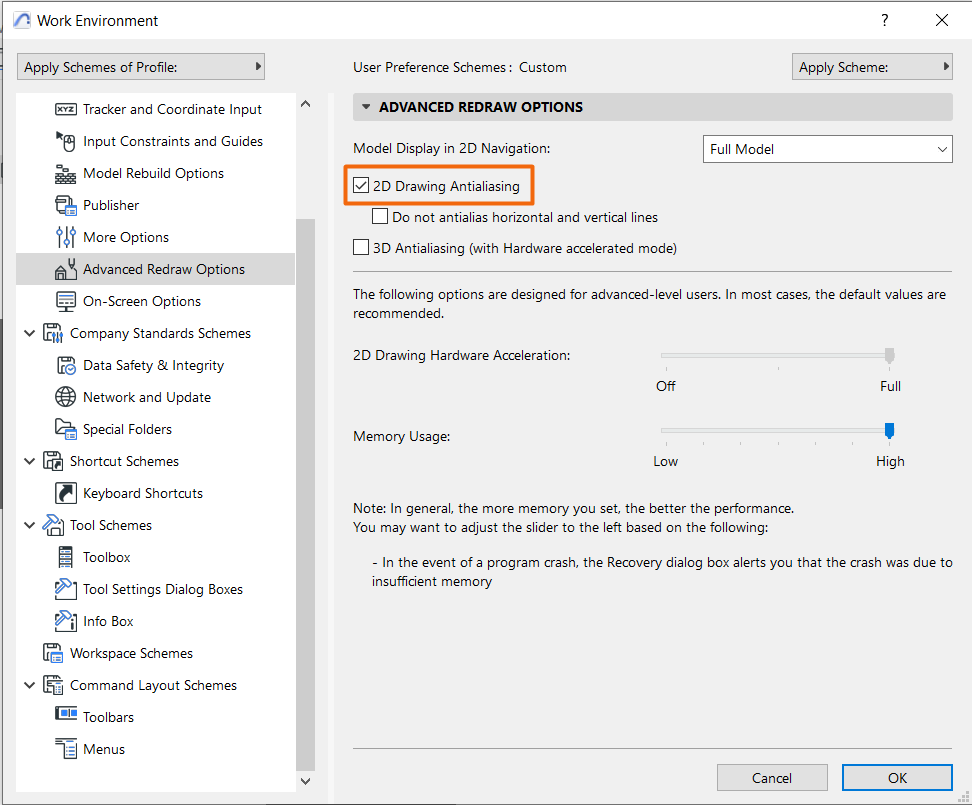

1. Go to Options > Work Environment > Advanced Redraw Options.
2. Under Model Display in 2D Navigation activate the following option:
   • 2D Drawing Antialiasing.
3. Click OK.

Update your Graphic Drivers

If enabling antialiasing does not fix the issue, make sure your graphic drivers are up-to date, and that Antialiasing is enabled in the driver's settings too.

Check System Zoom

Set the Zoom to 100% in your system's display settings and the graphic driver's settings.
