Elevation disappears after setting Horizontal Range to Limited

Issue description

When adjusting the depth of a horizontal view to control how your model appears, you may find that part of the elevation is missing or disappears entirely after setting the Horizontal Range to Limited in the Elevation Settings.

Solution

Horizontal Range (depth) of an elevation is defined directly in the elevation marker. To adjust it:

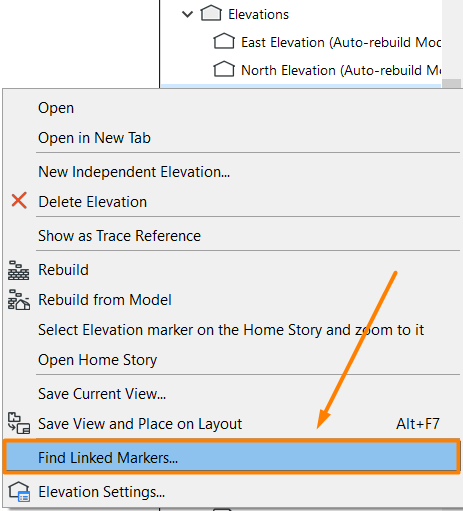

1. In the Navigator, right click the elevation and select Find Linked Markers...

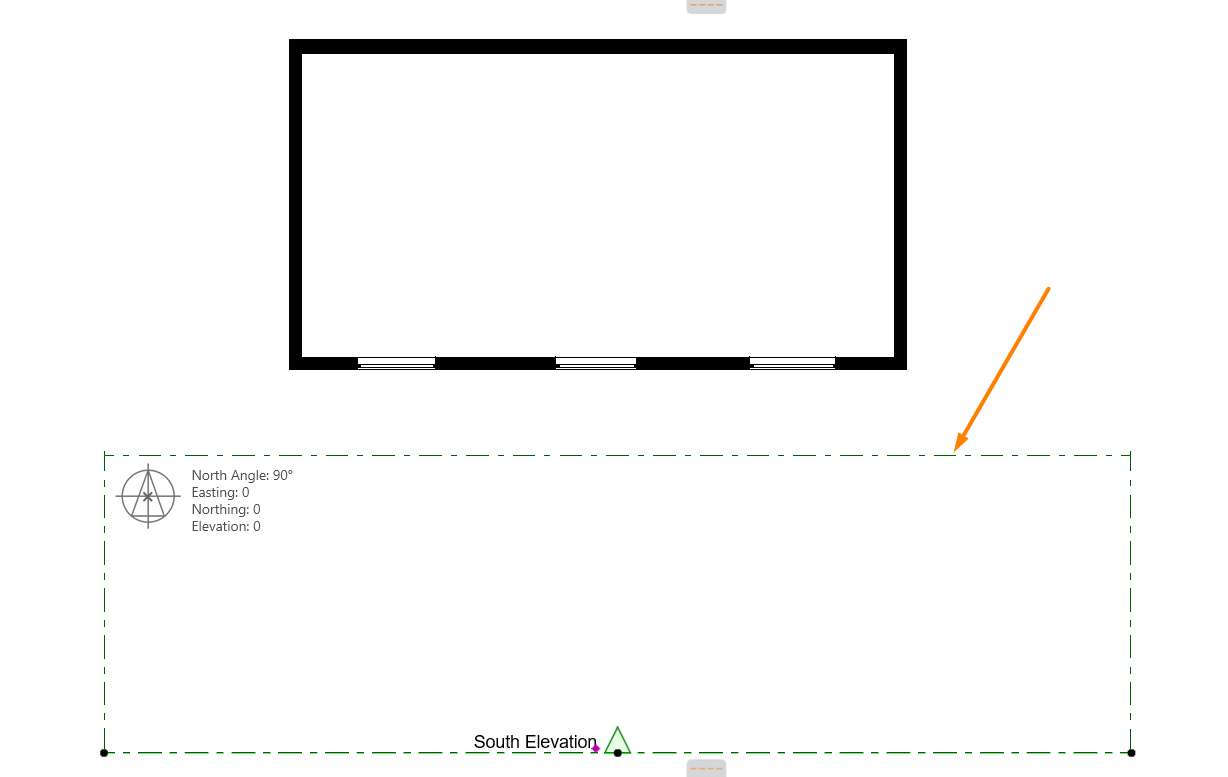

2. You will see a parallel line added to your elevation marker. This line represents the horizontal range. To edit it, select the line and, in the Pet Palette, use the Offset Edge function.
3. Drag the horizontal range line to increase or decrease the view depth. Only elements located between the elevation marker and the horizontal range will appear in the elevation view.
