How to import an RFA into Archicad

Description

You need to import an RFA (Revit Family file), as Revit Families mostly manufacture content to Archicad as Objects, Doors and Windows.
The generated Archicad library items have the same precise geometry and all parameters (in non-editable
mode) as those stored in RFA format.

Solution

Use this command to import a Revit Family (RFA) object and generate a GDL Object, Door or Window that has the same precise geometry and all parameters.

1. Go to File > Libraries and Objects > Import RFA as GDL Object.

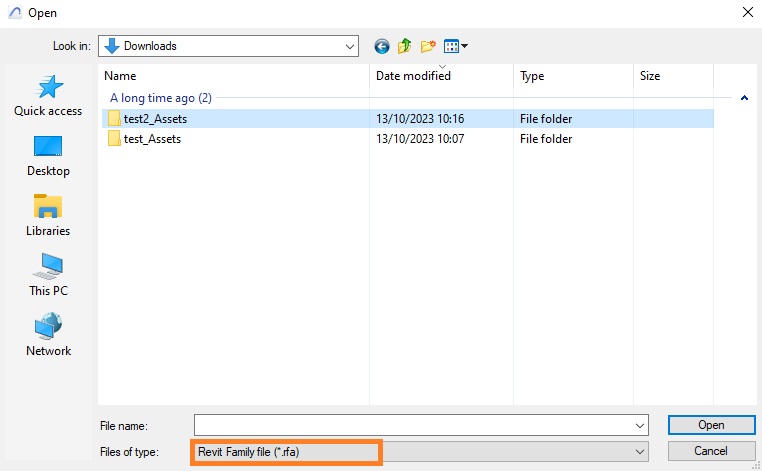

2. Browse for an RFA file to import, then click Open.

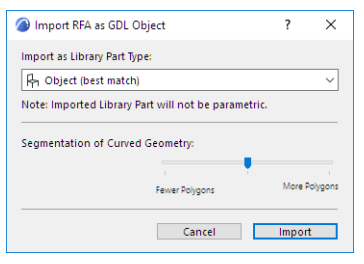

3. In the appearing Import RFA as GDL Object dialog, customize the import options:
   • Select Library Part Type (Object, Door, or Window) based on the family.
   • Use the Segmentation of Curved Geometry slider to set geometric detail.

   • Adjust Polygon count as needed (more polygons = higher detail, fewer polygons = smaller file).



4. TIP: Check the Polygon count
5.  Click Import.
6. The converted GDL Object, Door, or Window will appear in the project's Embedded Library.
7. Use the appropriate tool (Object, Door, or Window tool) to insert the item into your project.

Note: Parametric editing will not be available for the imported object.
