Issue Description

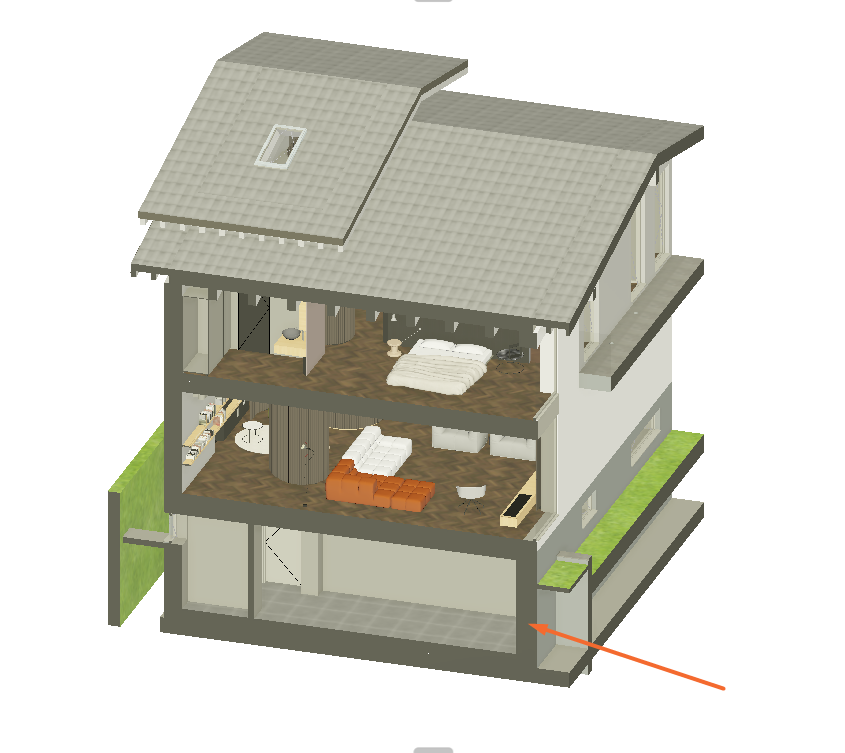

When creating a 3D section with a Cutaway Plane, it is possible to show material and structure layers of the model instead of solid cut fills.
Solution

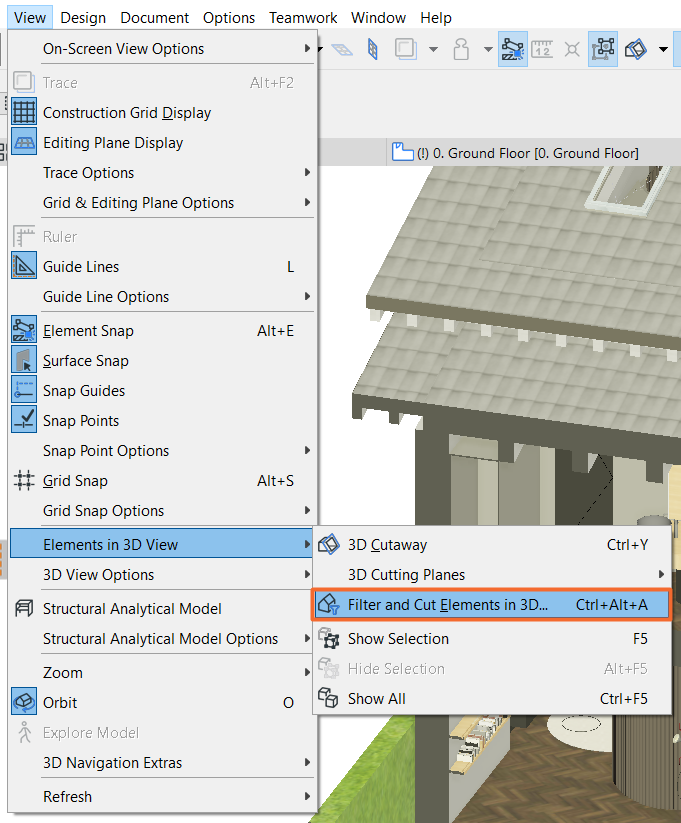

- Go to View > Elements in 3D View > Filter and Cut Elements in 3D...

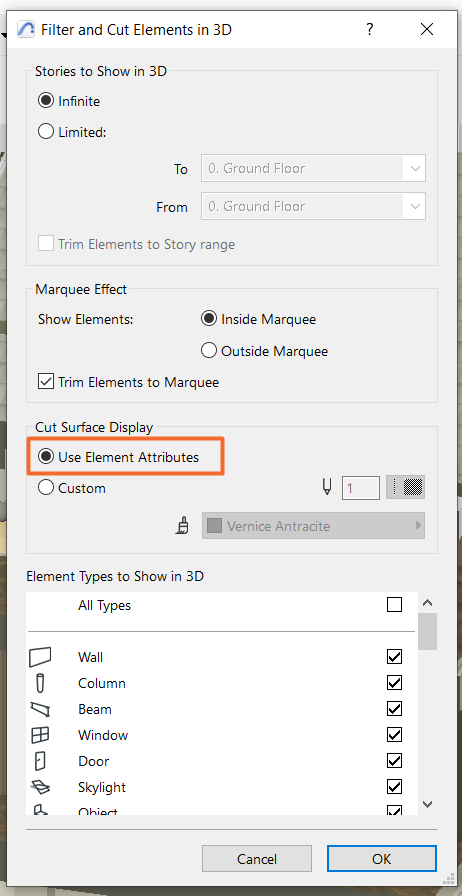

- Under Cut Surface Display select the option Use Element Attributes
- Click OK

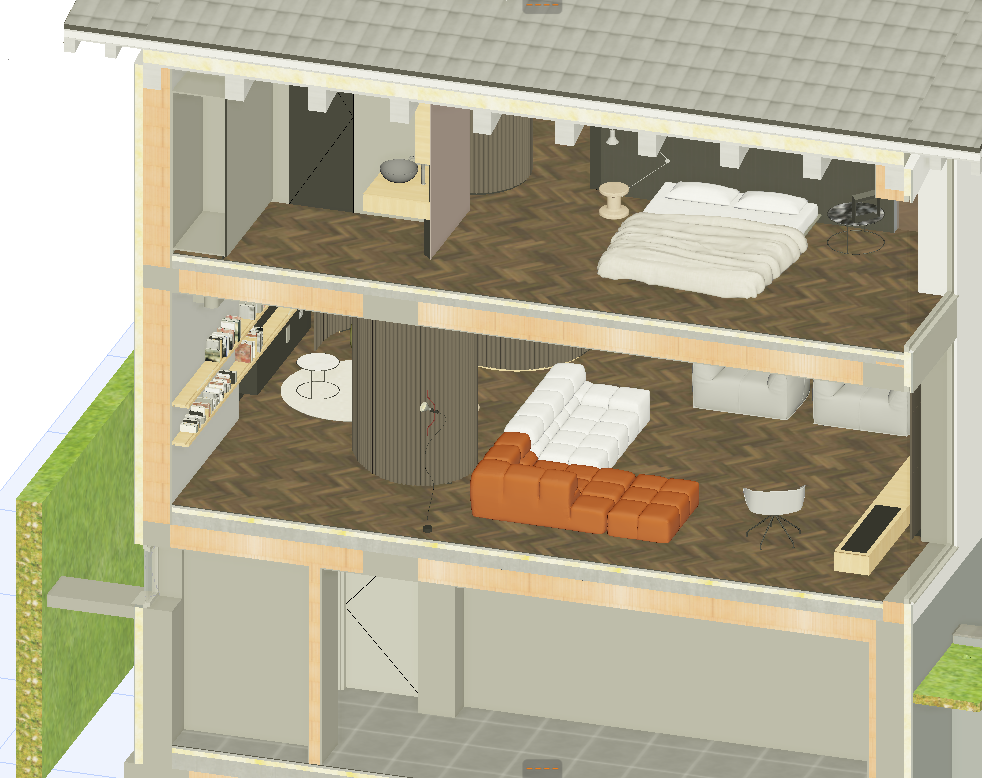

- The 3D model now shows composites and material of structural elements
