Issue Description

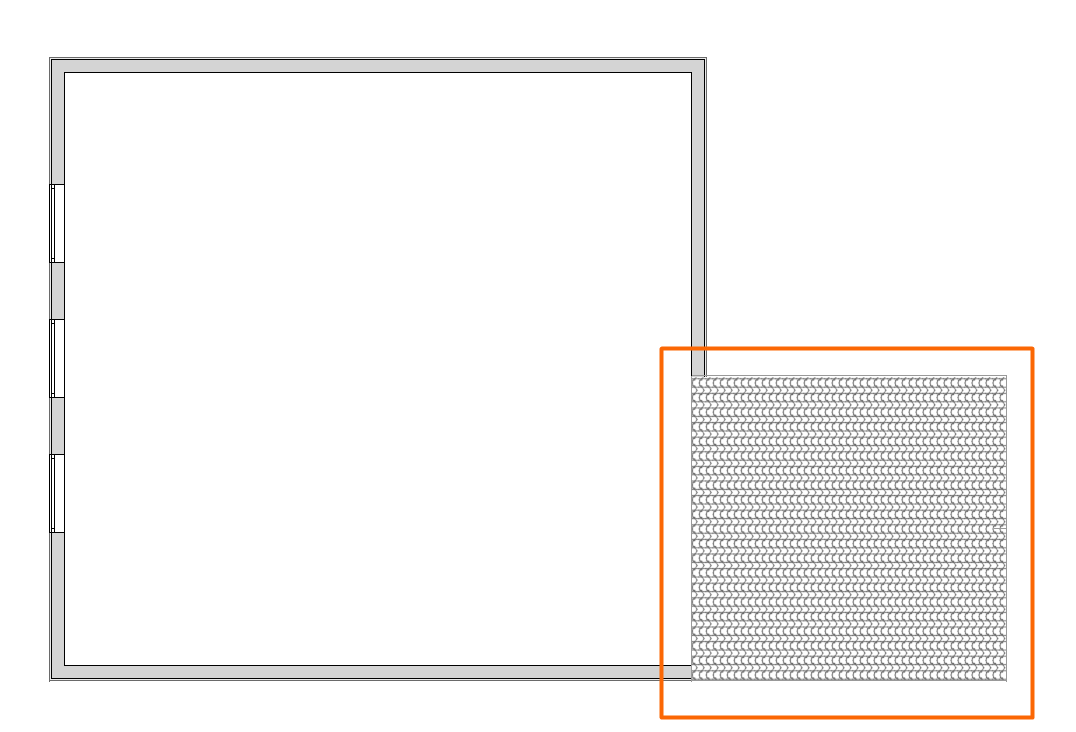

On a floor plan, you want to represent a roof fully with its outline and texture on a floorplan, but the cutting plane goes through the roof, and changing the floorplan Cut Plane, might affect the representation of other elements in the plan such as Windows, or Doors.
Solution

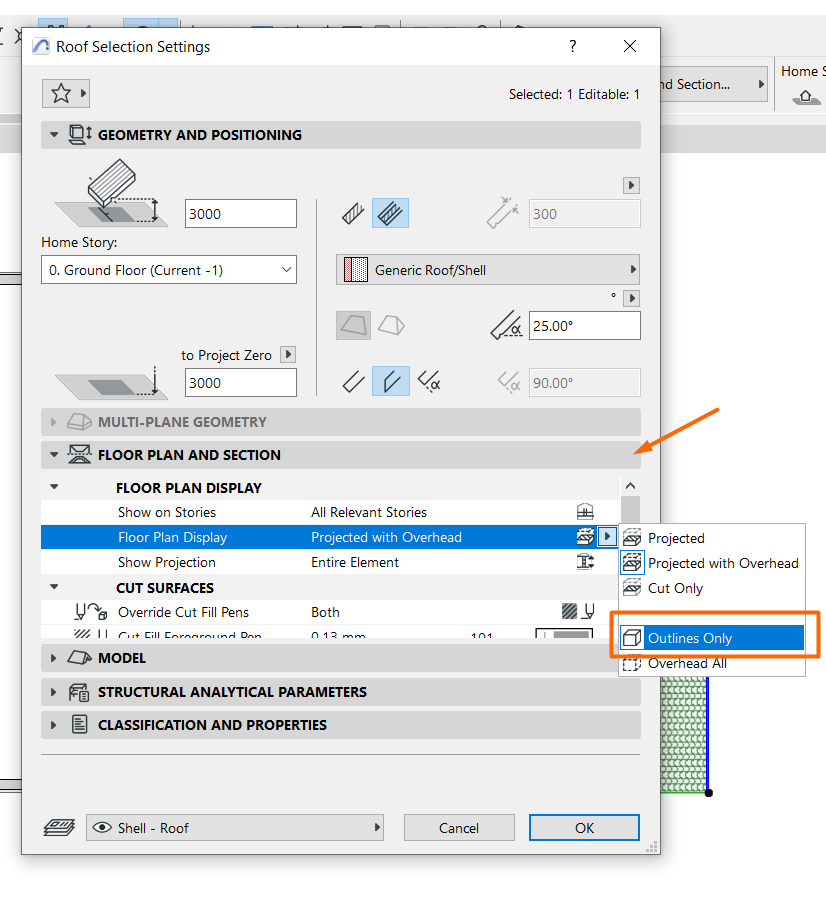

- Open the Roof Dialog Settings window
- Go to Floorplan and Section > Floor Plan Display > Floor Plan Display

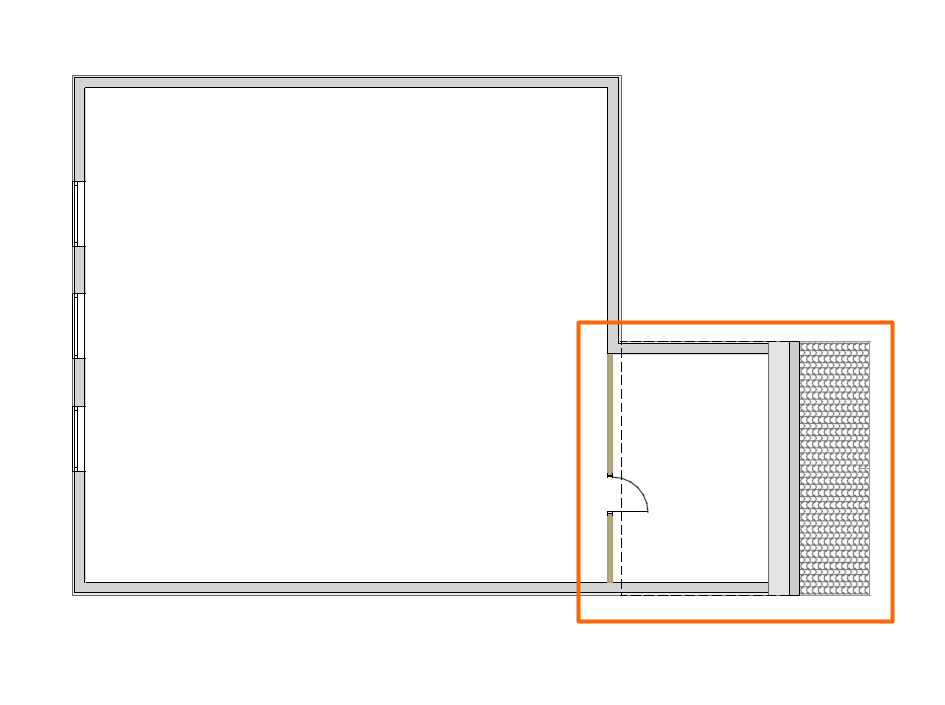

- Change the option from Projected with Overhead to Outlines Only
