Issue Description
If you are customizing a Railing, you might need to delete some unnecessary posts. But you will find that these are not automatically replaced by other elements. We can adjust the Balusters within a Railing Segment to replace them.
Solution

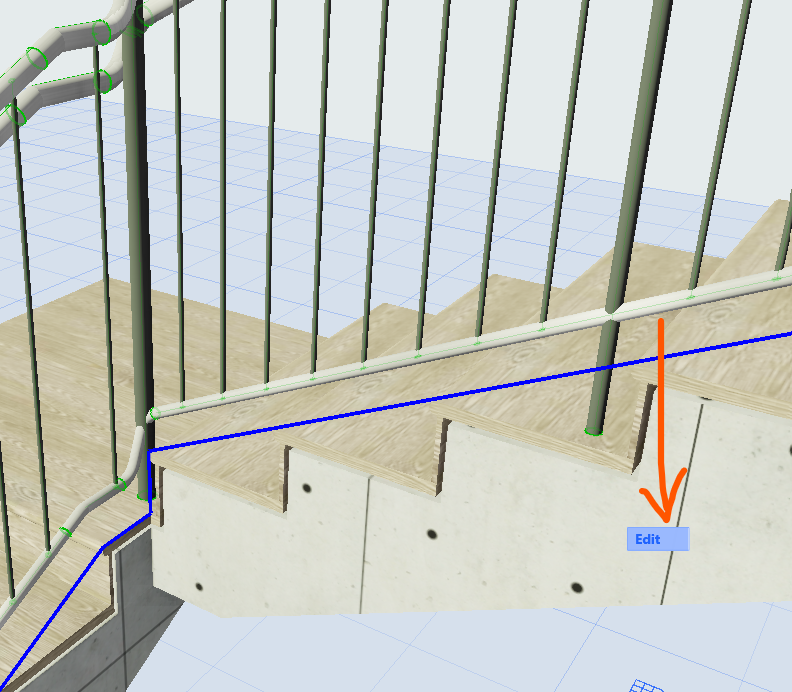

- Select the Railing and enter Edit Mode
- Right click > Create Independent Segments and Nodes

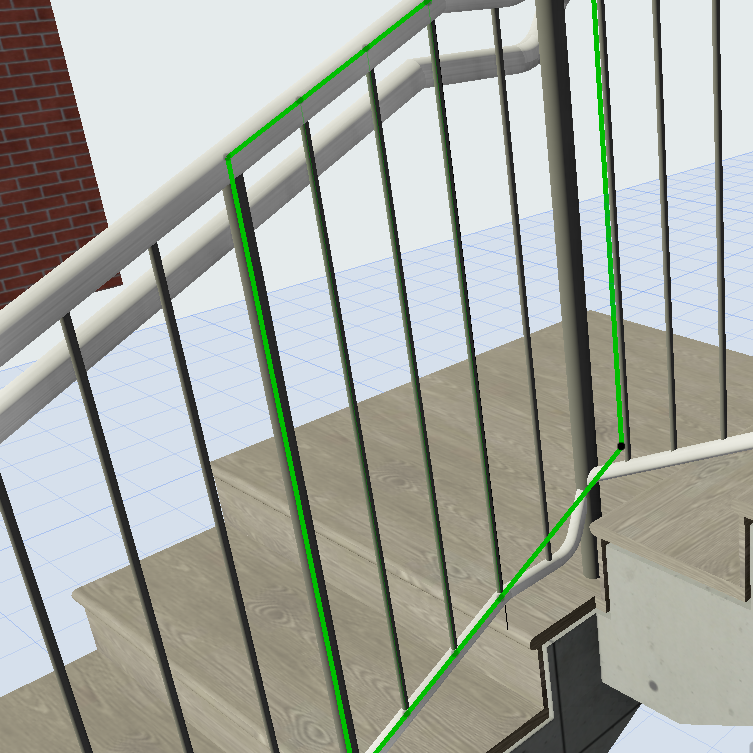

- Select the Balusters you want to drag.

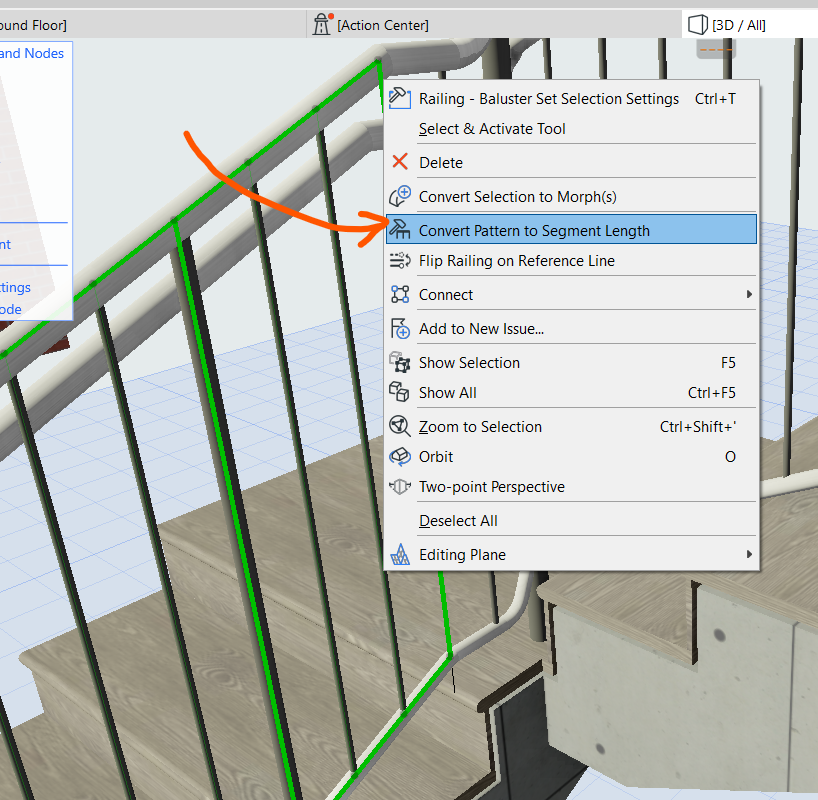

- Right Click and select Convert Pattern to Segment Length

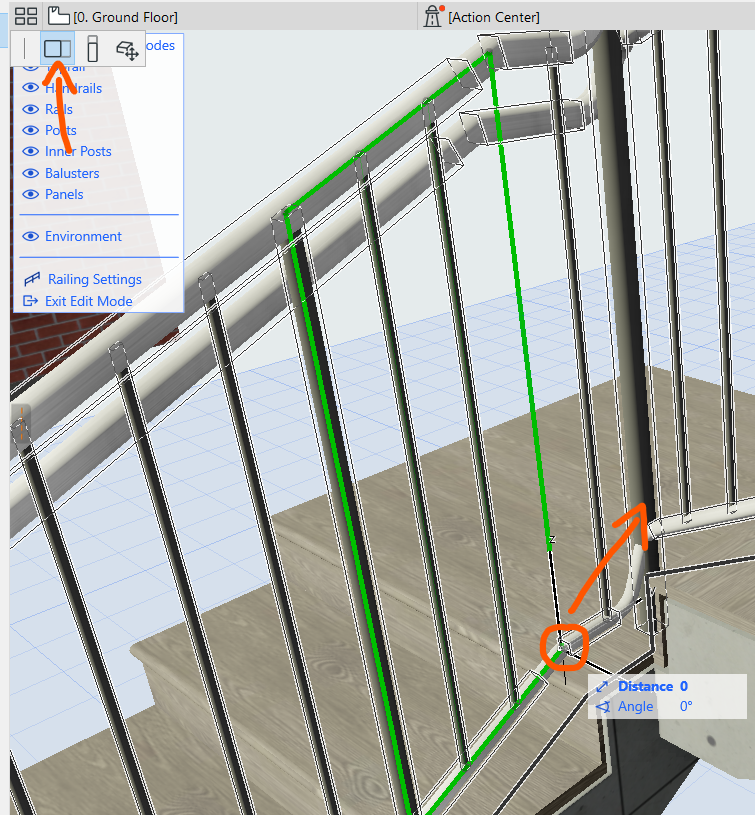

- Click once on the corner of the segment and pull it in the direction of the post. In the image below you can see the tool that should be activated on the screen to be able to drag the Balusters.

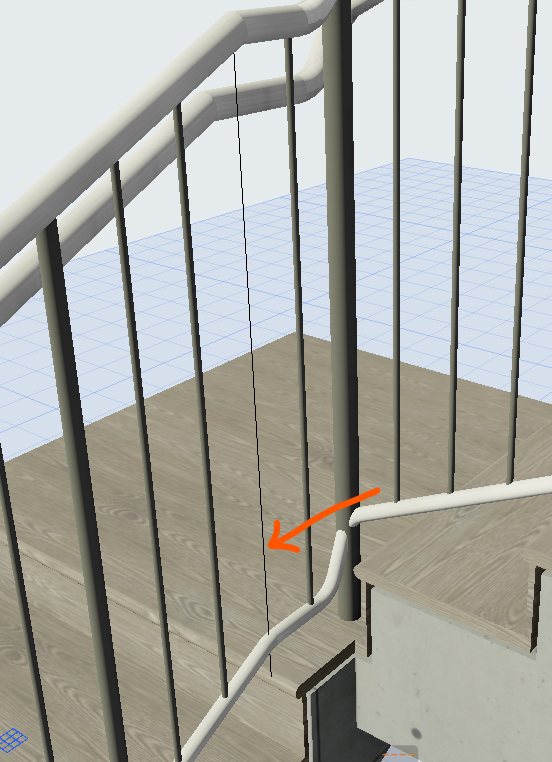

- Click again when the Baluster outlines are in the position you want them to be
