Issue Description
When we create an associative Railing from a Stair, we sometimes gain unnecessary nodes resulting in extra posts.
Solution
When we create an associative rail we sometimes gain unnecessary nodes. This can affect the railing's inclination against the stairs and produce undesired newel posts/posts.
- You can remove these posts, by dragging them on the floorplan over the top of each other, this will in turn merge them into a single node.
If you find that even by correcting the Railing on the floorplan, you are still left with unnecessary posts, you can
- Select railing

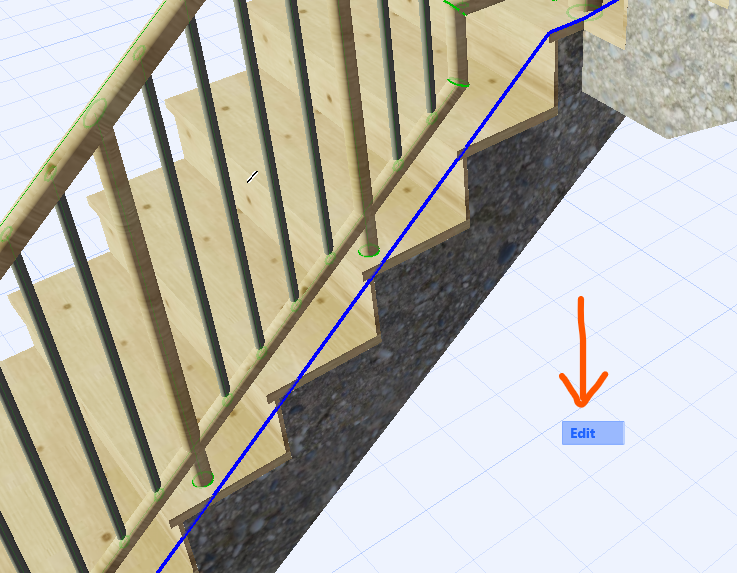

- Click on Edit to enter Edit Mode
- Select the railing again while in Edit Mode, Right-click > Create Independent Segments and Nodes
- Unselect the railing, select the post you want to remove, and press the delete key, or Right Click > Delete.
