Issue Description
We might have integrated Story Level Markers in Section or Elevation Views, but when placing them on the Layout book, these level symbols are missing. Elevations and Sections have a setting that might be causing the issue. You can correct it as follows.
Solution
- Open the View Map
- Select the View to modify, right click > Elevation Settings (or Section Settings)

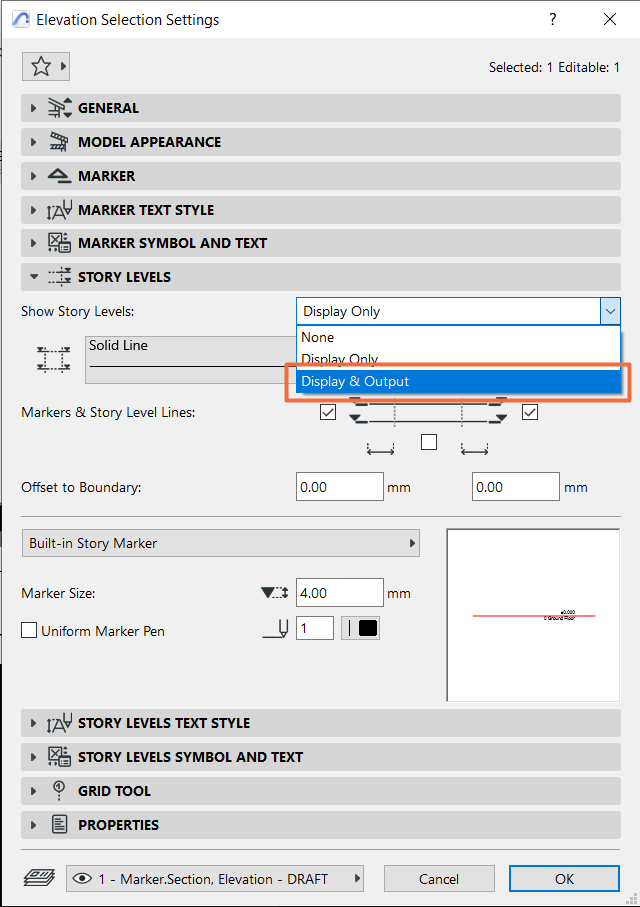

- Under Story Levels > Show Story levels > Display and Output > click okay

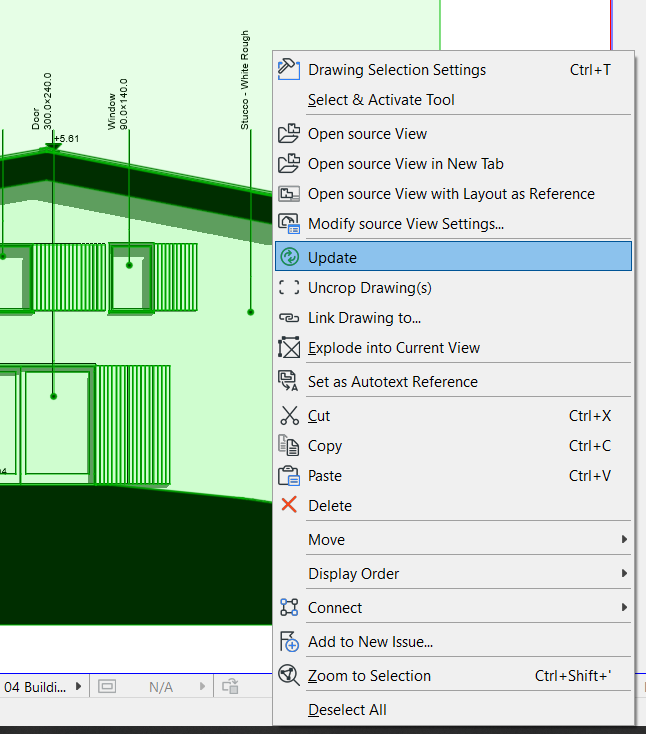

- Go back to your Layout, right click on the inserted View of the Elevation/Section and select Update (or you can also delete the view and place it again with the Drawing Tool)

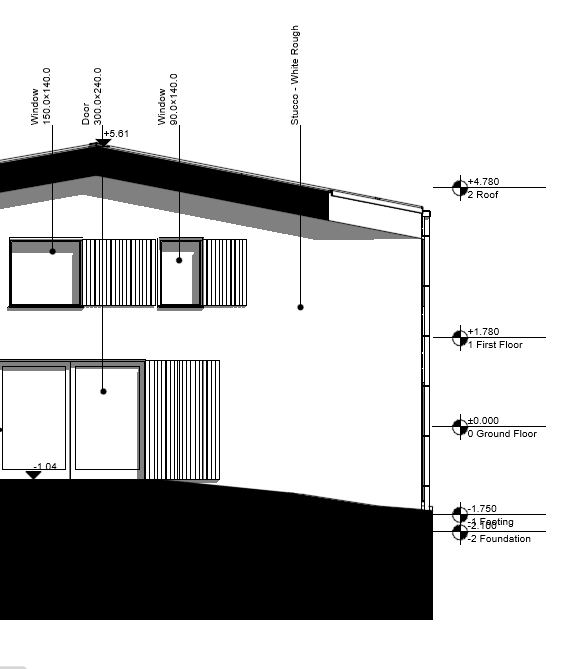

- The Markers should be visible now
