Issue Description
When using Design Options, you might want to showcase different material options for the same element, a wall for example, without modeling the element again and again.
Solution
We can showcase different materials/composites/surfaces for a wall using the following workflow:
First, go to Window>Palettes>Design Options Palette

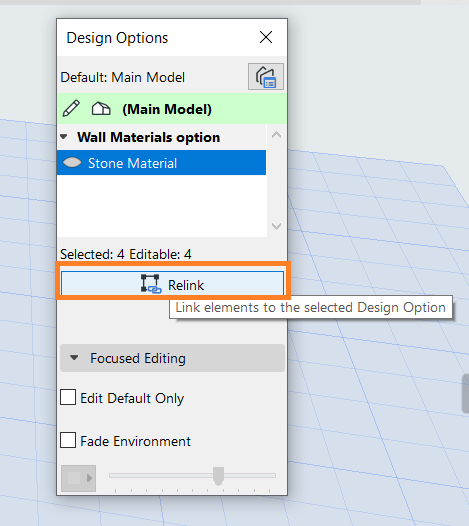

- Select the wall you want to edit > Select a Design Option > Relink.

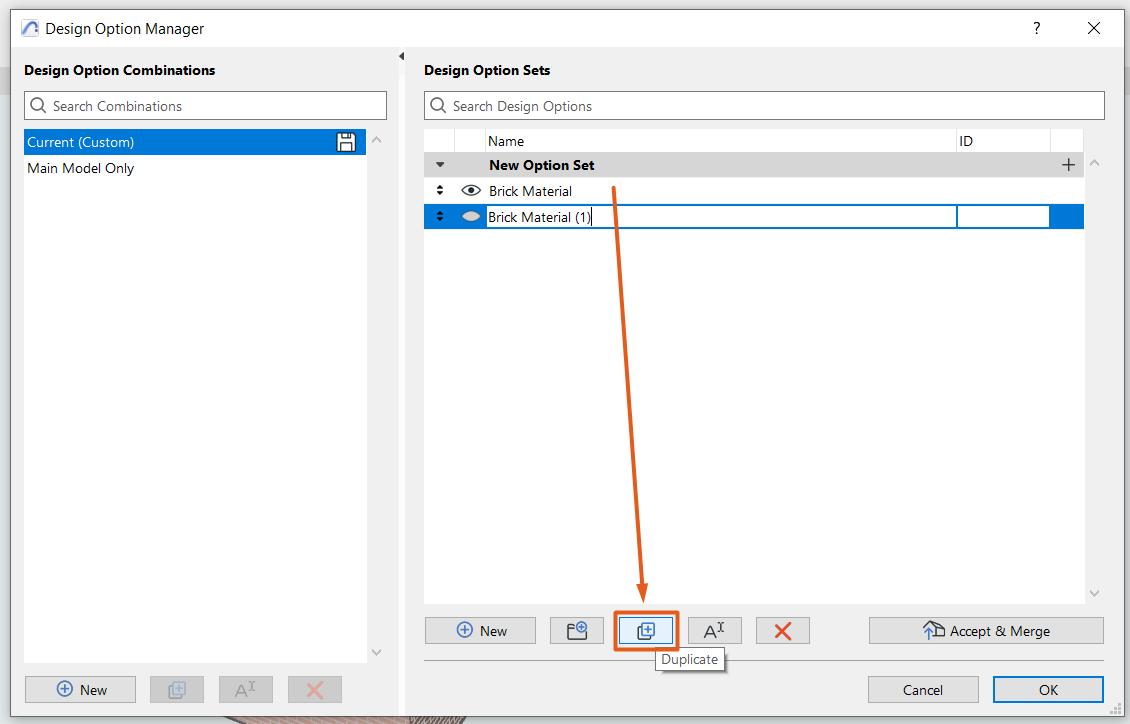

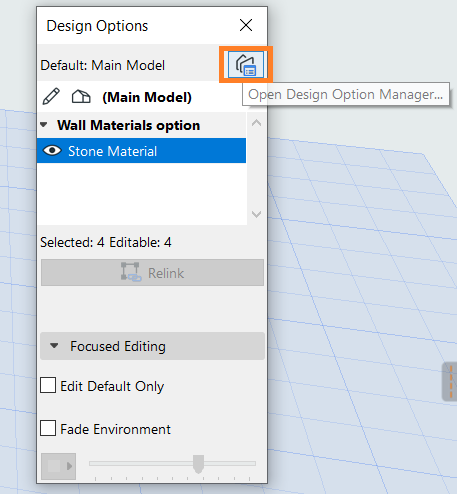

- Open the Design Option Manager and click Duplicate.
This will automatically duplicate the wall to the new Design Option, without you having to model it individually.
- Rename your new Design Option.
- Click Ok
- Activate your desired Design Option on the Design Options palette.
- Select the elements you want to change and modify their material or composite in their corresponding settings window.

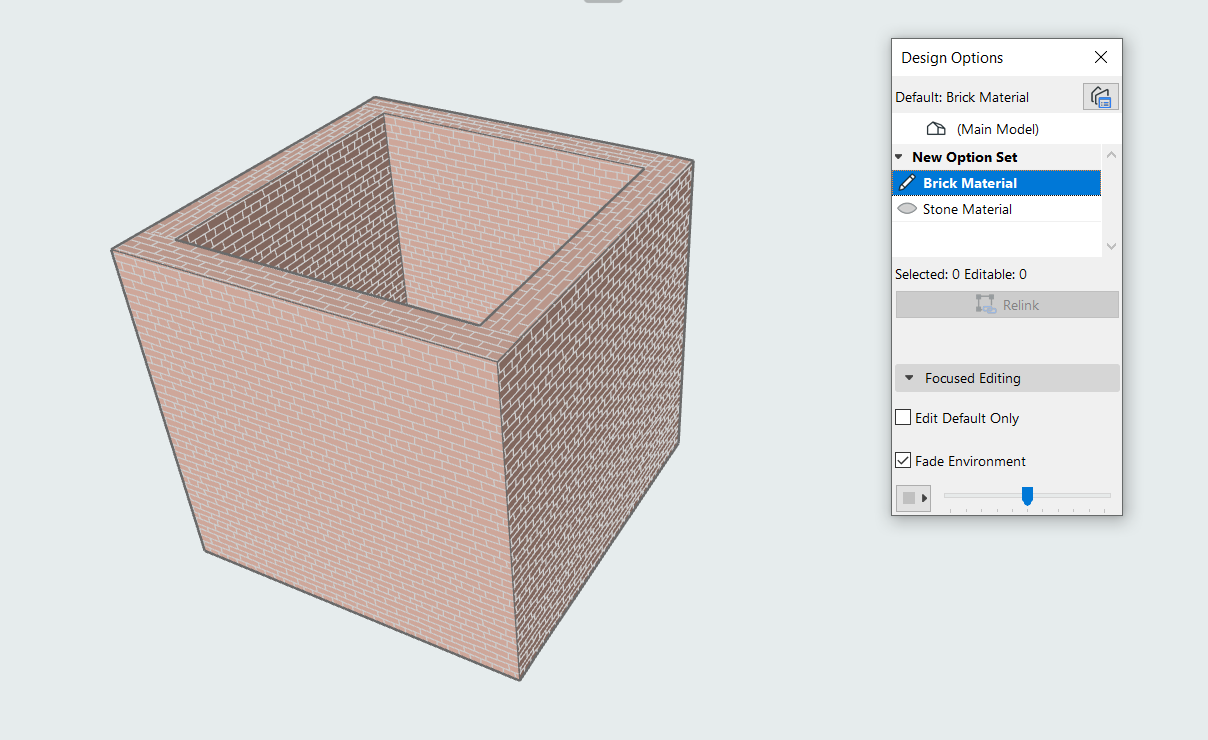

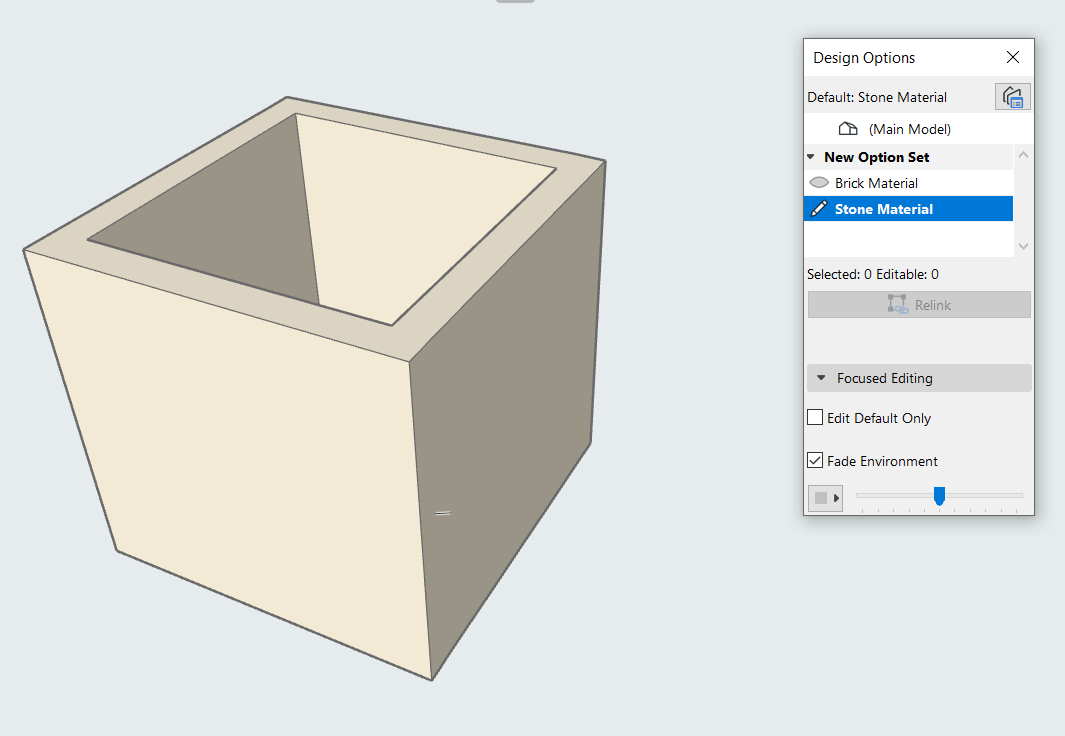

- In the Design Options palette double click on Main Model to activate it, and switch visibility of each option to toggle between the material possibilities.
We recommend the Archicad 27 Update Training on the Graphisoft Learn Portal so you can learn more details about the possibilities of this new feature.
