Issue Description

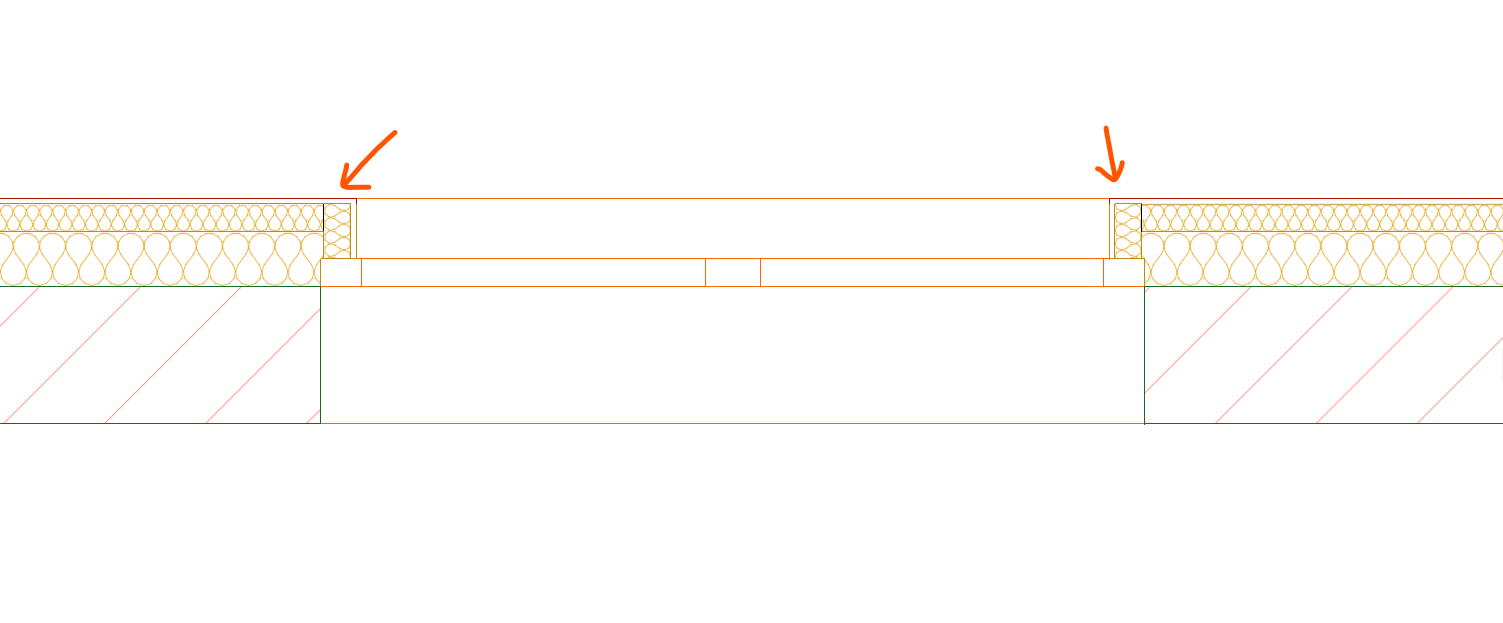

If you are having trouble creating a reveal that has an insulation turn (see picture) then you might need to change some settings or select the correct type of Wall Closure.
Solution
- You should make sure your composite’s attributes are set correctly.

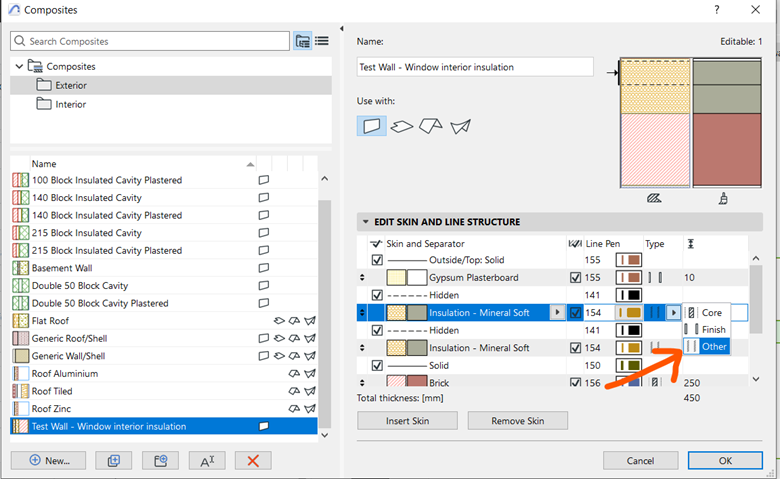

- First, go to the Composite Settings (Options > Element Attributes > Composites.
- Make sure that each skin layer has the right classification, as it will allow the reveal to appear correctly.
- Leave the Composite Settings and then select your Window. Then open the Window Settings.

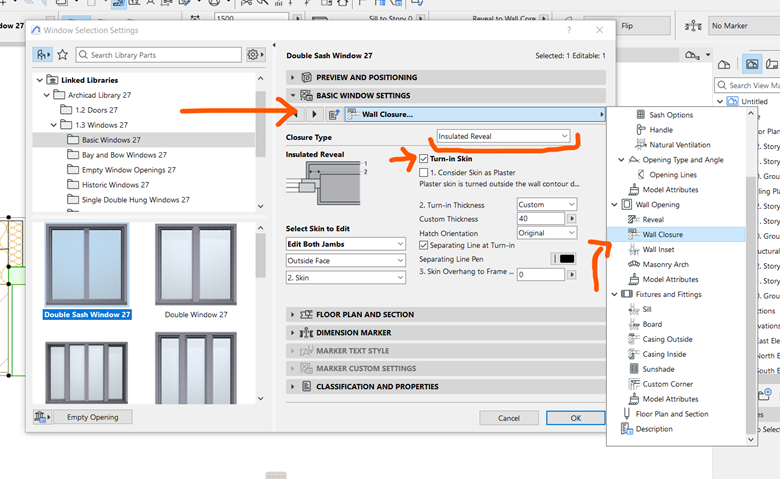

- Window Settings > Basic Window Settings > Wall Closure > Wall Closure Type > Insulated Reveal
- Check the ‘Turn in Skin’ option (thickness of each of these skins is modifiable)

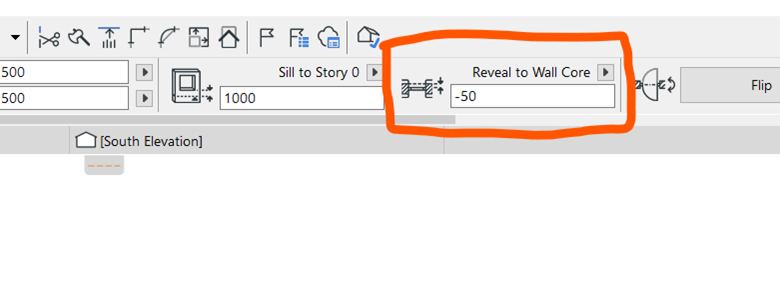

- The window's Reveal to Wall Core can be modified afterwards to align the window model with the insulation layer.
