Archicad walls look disconnected in the 2D ground floor view.

Issue description

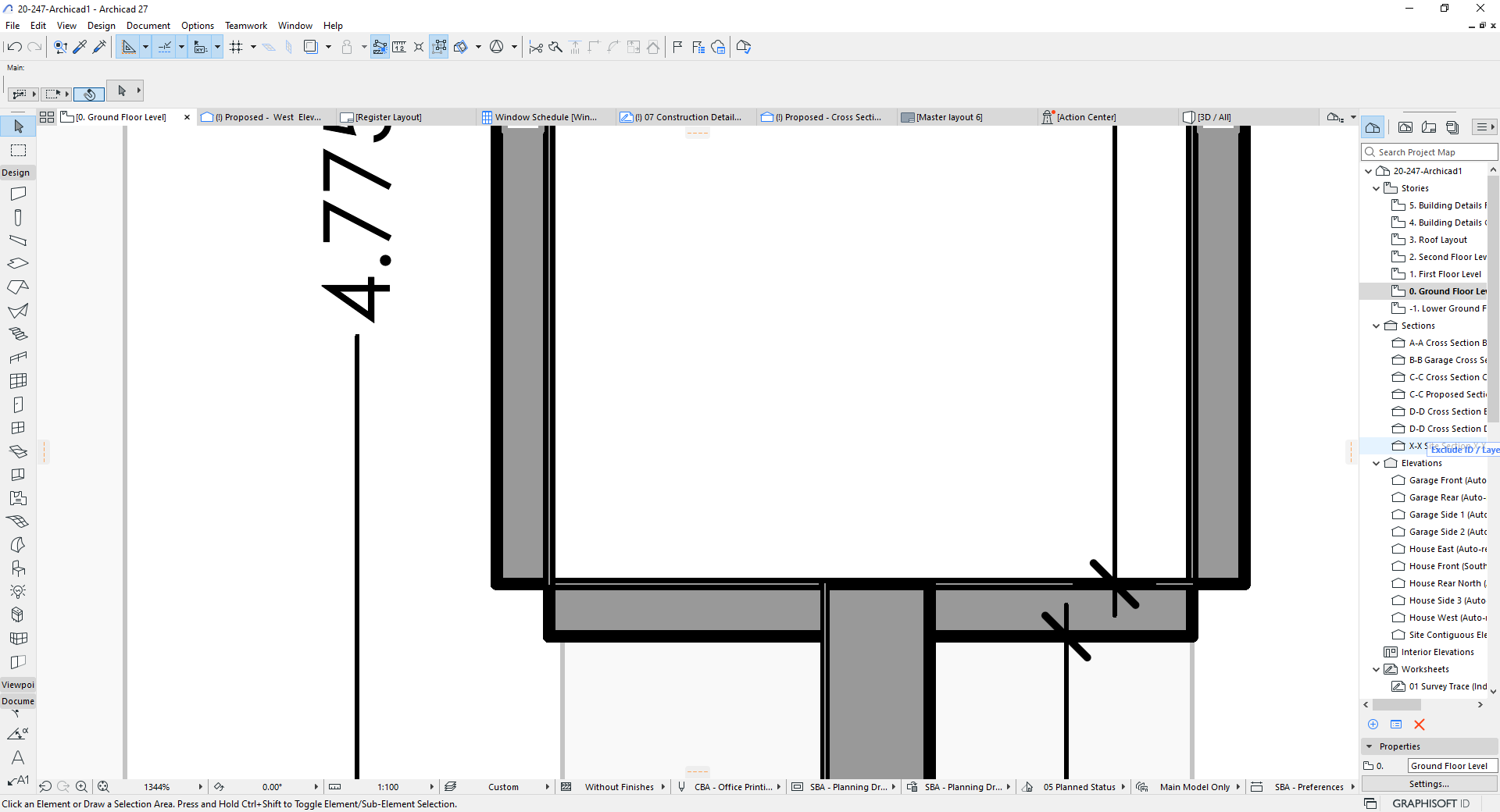

Archicad walls look disconnected in the 2D ground floor view. However, they are connected in the 3D window view.

Solution

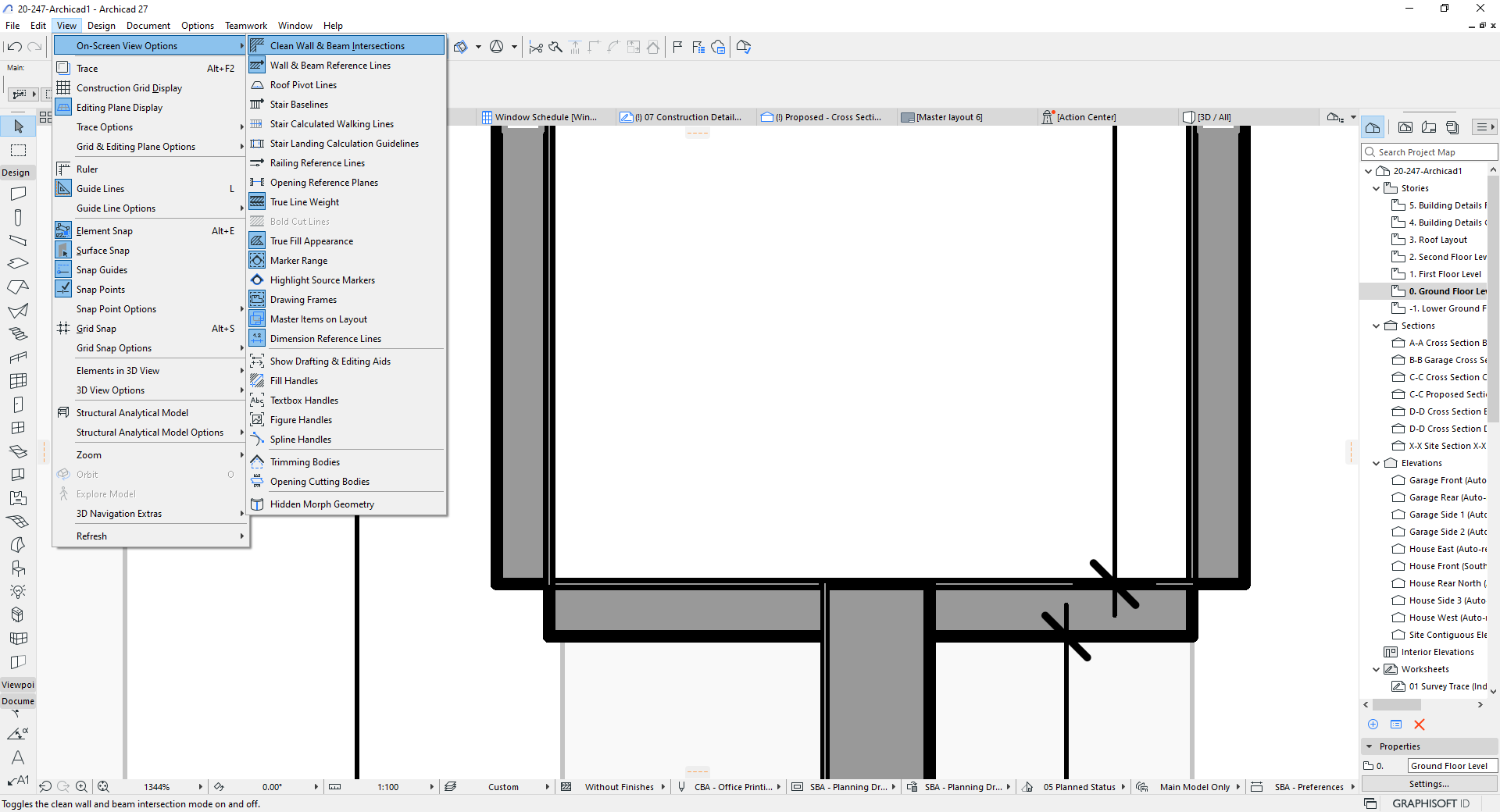

Turn on the Clean Wall and Beam intersection from the View > On-Screen View Option > Clean Wall & Beam Intersections.
