Issue Description
Depending on how your model intersects with the Floor Plan Cut Plane, doors and windows may not be displayed in walls.
Solution
1. Floor Plan Display

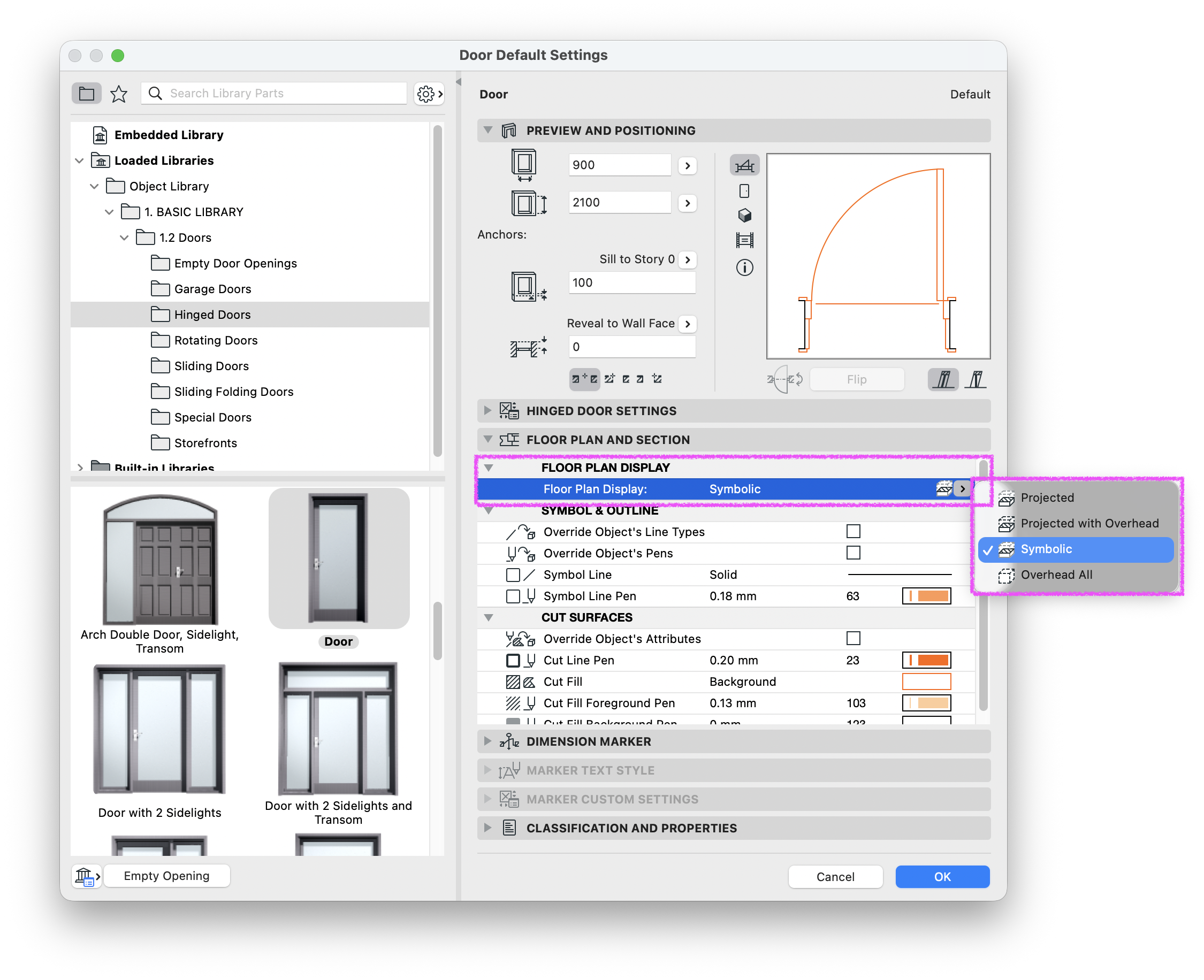

Make sure that the correct settings for windows and doors are applied in the element settings under Floor Plan Display.
See illustrations below for various combinations and conditions:
- Floor Plan Display of Doors and Windows: Projected
- Floor Plan Display of Doors and Windows: Symbolic
2. Adjust View settings
Moreover, the Floor Plan Cut Plane Setting can be adjusted in the saved View. Different Views can be saved with different Floor Plan Cut Plane Settings.
TIP:
The community article Split Levels - Tips & Tricks provides more Information when working with Split Levels in Archicad.
