Showing/hiding minimal space of doors & objects

Description

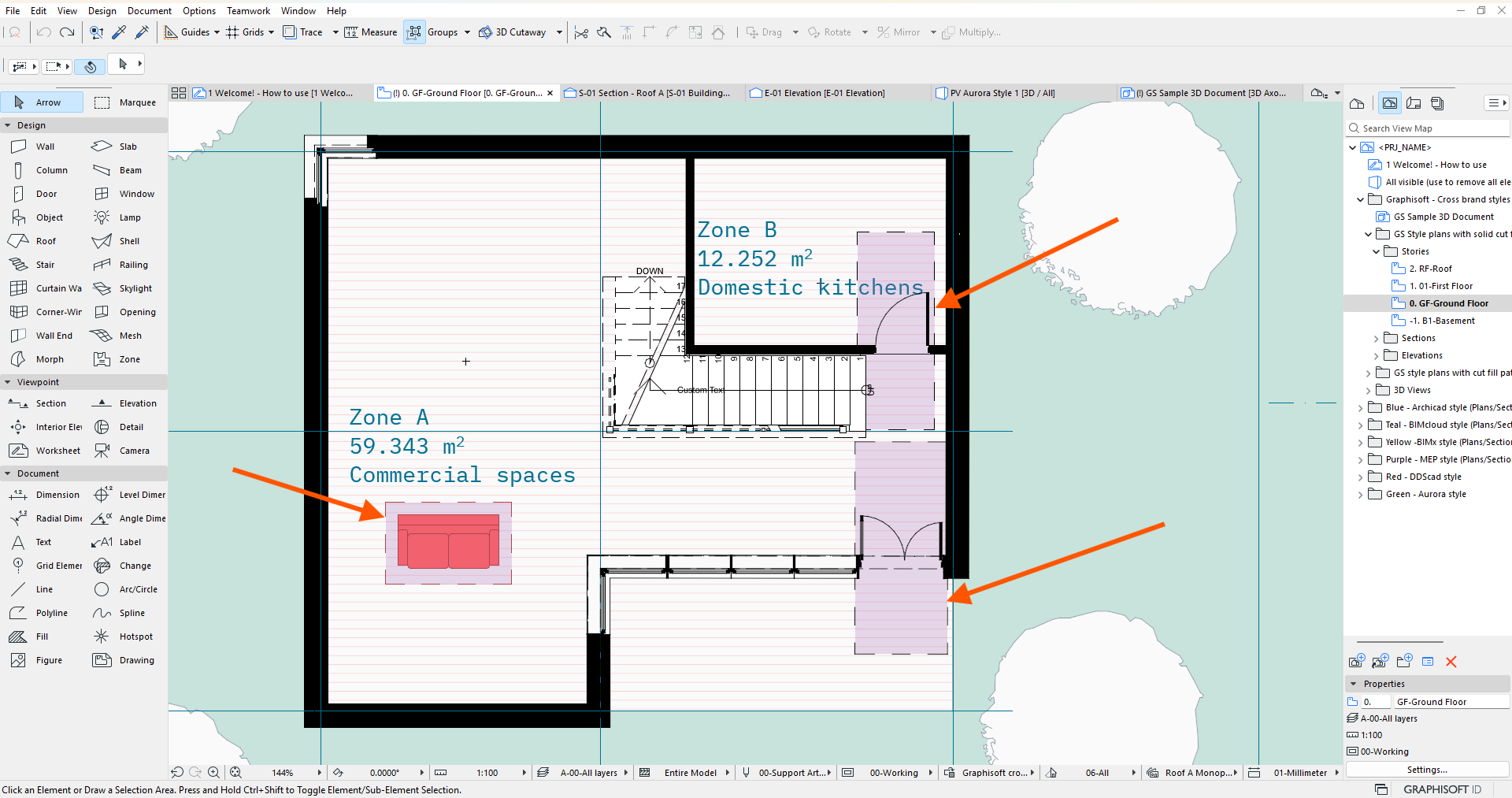

If you have ever seen a gray (or other color) fill on either side of a door or around an object (shown below) this is the Minimal Space of Door and Object function.

Instructions

To toggle/change the visibility of the minimal space symbol follow these steps:

1. Go to Document > Model View > Model View Options or open the model view options from the quick options bar.

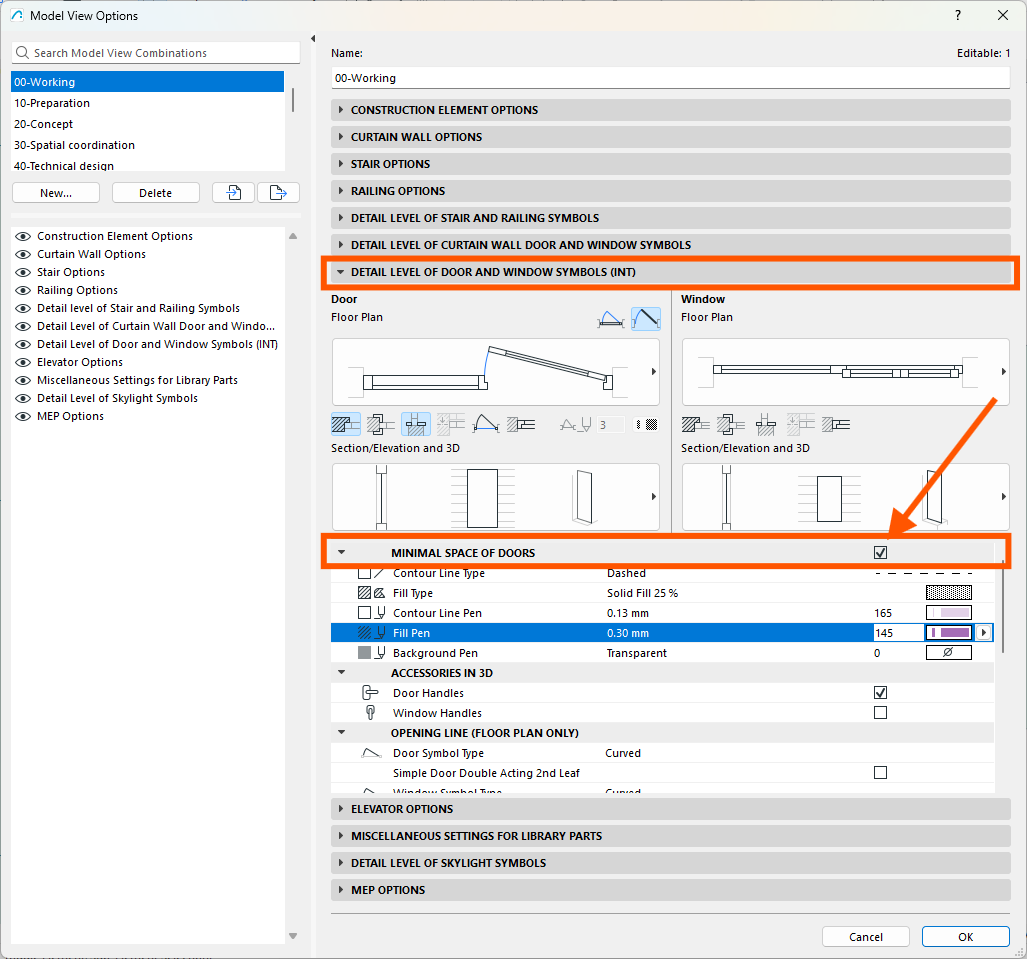

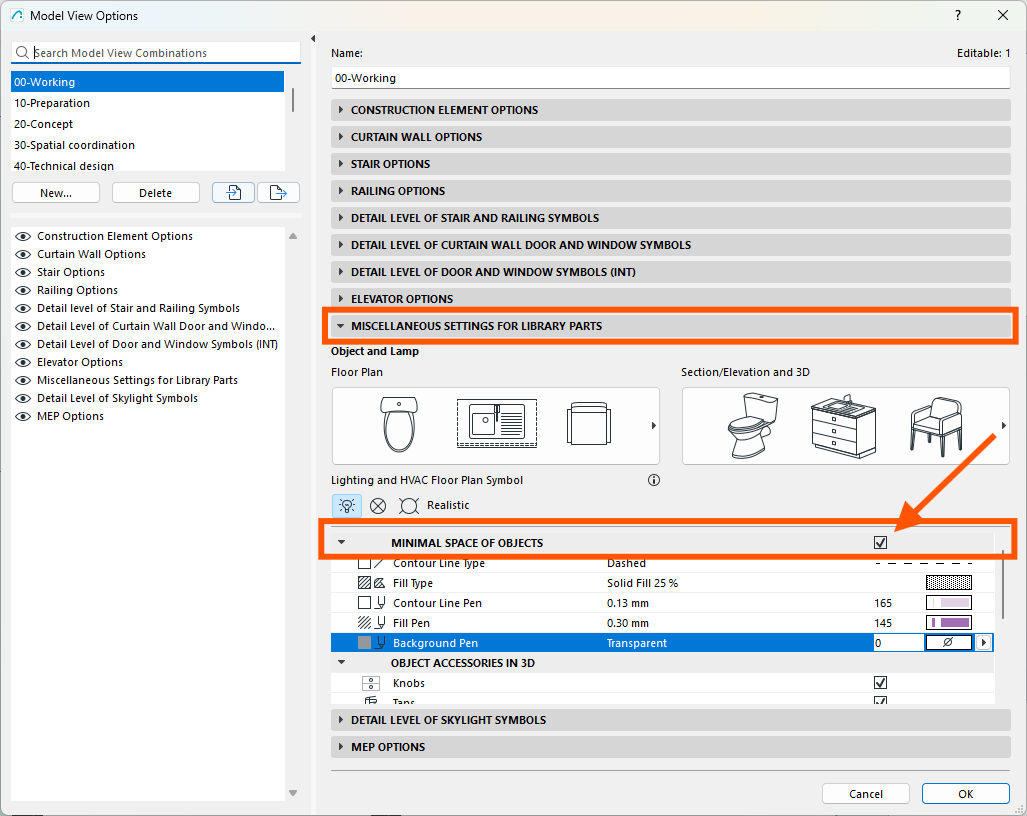

2. Expand the tab(s) Miscellaneous Settings for Library Parts and/or Detail Level of Door and Window Symbols (x).
3. Scroll down in the respective section until you find the setting Minimal Space of Objects/Doors.
4. Click on the checkbox to enable/disable it.
5. Click OK to apply the changes.
